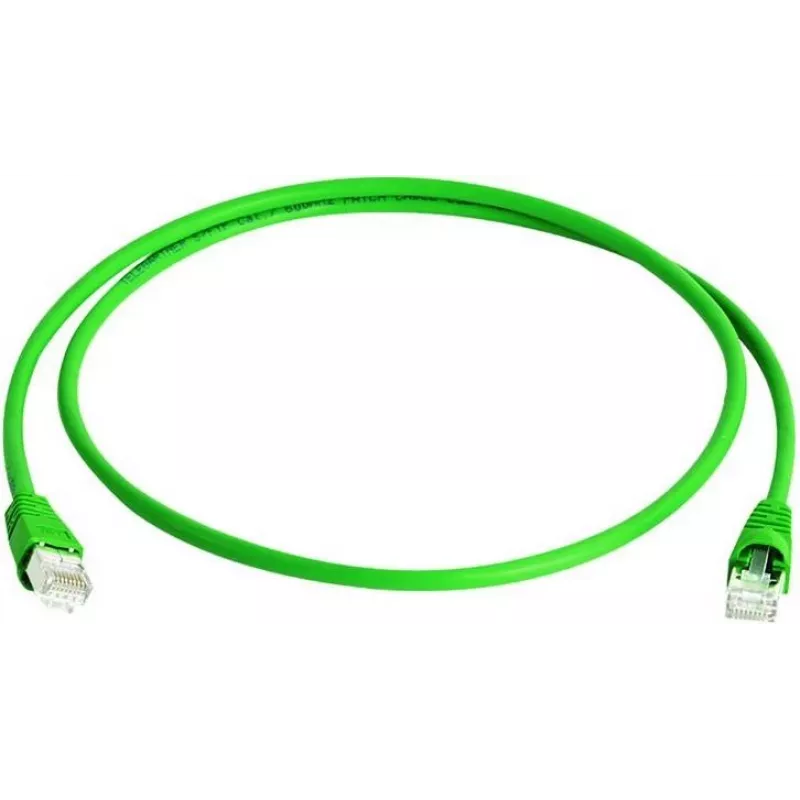

Telegärtner MP8 FS 600 Cat.7 S/FTP patch kábel, RJ-45 konektor samec na RJ-45 konektor samec, 25 m, zelený L00006A0039

Built around a raw Cat.7 cable with S/FTP shielding, this Telegärtner MP8 FS 600 patch cord delivers 10 Gigabit Ethernet performance up to 600 MHz. It is a factory-terminated, ready-to-use solution for high-density data centres, enterprise networks, and industrial installations where signal integrity and long-term reliability are critical. The green LSZH jacket adds visibility in cable trays and meets strict fire safety requirements.

Highlights

• Raw cable category: Cat.7 (600 MHz) for superior headroom
• S/FTP construction: individually shielded pairs (PiMF) plus overall braid
• Supports 10GBASE-T and Power over Ethernet (PoE/PoE+/PoE++)
• LSZH jacket: low smoke, zero halogen, flame retardant
• Stranded AWG 26/7 copper conductors for flexibility and durability
• Gold-plated RJ-45 connectors with snagless boots
• 25 m length ideal for structured cabling and patch panels

In daily use

This cable eliminates crosstalk and EMI even in dense rack environments. The stranded conductors make it easy to route through cable managers without kinking, while the robust connectors withstand hundreds of mating cycles. It is fully backward compatible with Cat.6a, Cat.6, and Cat.5e equipment, so you can deploy it now and be ready for future network upgrades.

Full specifications

• Connector type (end 1): RJ-45 male
• Connector type (end 2): RJ-45 male
• Cable length: 25.0 m
• Performance category: Cat.6a (tested up to 600 MHz)
• Raw cable category: Cat.7
• Shielding: S/FTP (PiMF + overall braid)
• Max data rate: 10 Gbps
• Bandwidth: 600 MHz
• Colour: Green
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Number of pairs: 4
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Application: High-speed network connections, PoE

Final note

For mission-critical links where every decibel of headroom counts, the Telegärtner MP8 FS 600 is a dependable, standards-compliant choice that will serve your network for years.
