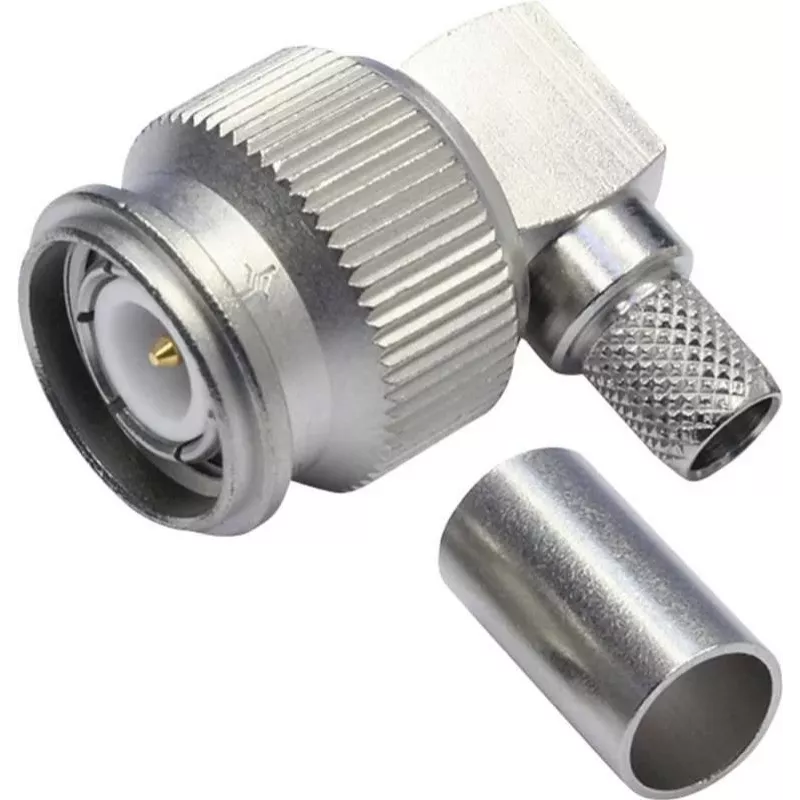

Telegärtner TNC uhlový crimp konektor samec, 50 Ohm, pre kábel G30, balenie 5 ks J01010A0037

RF technicians and installers working with G30 coaxial cable will find this right-angle TNC plug ideal for tight spaces where a straight connector would put strain on the cable. The 90° body routes the cable parallel to the panel, reducing bend radius and improving reliability in equipment racks, antenna feeds, and test setups.

Key specifications

• Connector type: TNC male (plug)
• Body style: right-angle
• Impedance: 50 Ohm
• Compatible cable group: G30 (dielectric Ø 3.8 mm, inner conductor Ø 1.5 mm)
• Outer conductor termination: crimp
• Center conductor termination: solder
• Frequency range: DC to 11 GHz
• Voltage rating: 500 V RMS
• Insulation resistance: ≥ 5 GΩ
• VSWR: max 1.35 @ 11 GHz
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥ 500
• Body material: brass, nickel-plated
• Contact plating: gold
• Insulator material: PTFE
• Packaging: 5 pieces

Why choose it

The right-angle design saves space and reduces cable stress, while the crimp/solder termination ensures a durable, low-loss connection. Gold-plated center contact and PTFE insulator maintain signal integrity up to 11 GHz.

Ideal use cases

• RF equipment with limited clearance behind connectors
• Antenna and satellite installations with tight cable routing
• Test and measurement setups requiring repeatable connections

Good to know

Compatible with G30 cable group as specified by Telegärtner. The connector is supplied in a pack of 5 pieces.
