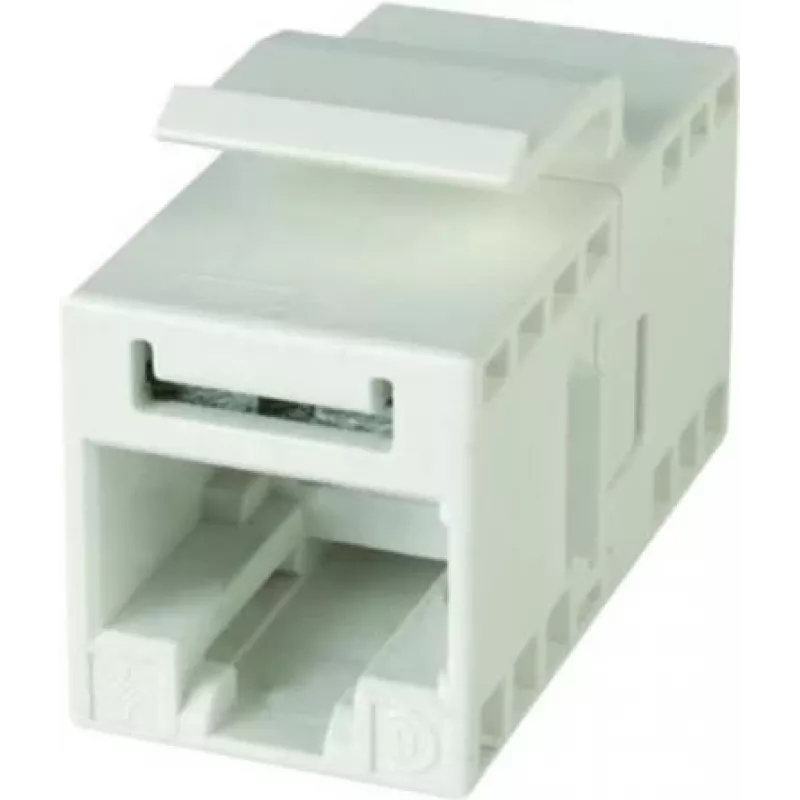

TELEGÄRTNER UMJ RJ45 Cat.6A tienený modul J00029A0064

The TELEGÄRTNER UMJ RJ45 module delivers reliable Cat.6A performance in a shielded, snap-in form factor. Its die-cast zinc housing and gold-plated contacts ensure stable connections for high-speed networks and Power over Ethernet applications.

Advantages

Supports frequencies up to 500 MHz, exceeding standard Cat.6 requirements. The module accepts both solid and stranded conductors from AWG 22 to 26, simplifying installation. With over 750 insertion cycles, it withstands frequent reconnections in demanding environments.

Suitable for

• Structured cabling in offices and data centers
• PoE, PoE+, and 4PPoE powered devices
• Module carriers, patch panels, and wall outlets

Key specifications

• Connector type: RJ45
• Performance: Cat.6A (ISO/IEC 11801, EN 50173-1, TIA/EIA-568-C.2)
• Shielding: Shielded (STP/FTP)
• Termination: IDC, T568A/T568B wiring
• Wire gauge: AWG 24/1–22/1 solid, AWG 26/7–22/7 stranded
• Frequency range: up to 500 MHz
• Housing: die-cast zinc, plastic front/rear
• Contacts: phosphor bronze, gold-plated (min. 0.8 µm)
• Insertion cycles: >750
• Operating temperature: -40°C to +70°C

Recommendations

For best performance, pair with Cat.6A shielded cable and proper grounding to maintain signal integrity and EMI protection.
