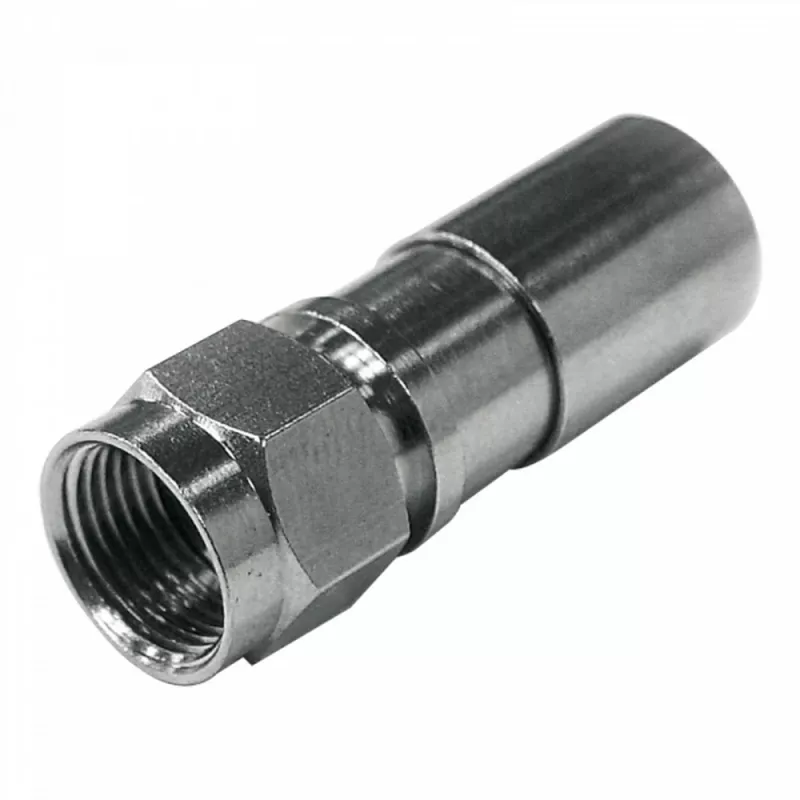

Televes 4104 F-kompresný konektor samec pre koaxiálny kábel T100/CXT60

Loose or poorly fitted F connectors are a leading cause of signal loss, ghosting, and intermittent reception in satellite and cable TV installations. The Televes 4104 compression connector eliminates these issues by providing a permanent, gas-tight bond between the coaxial cable and the connector body, ensuring maximum signal transfer and long-term reliability even in demanding environments.

Who is it for

Professional installers and serious DIY enthusiasts working with T100 (RG6 equivalent) coaxial cable in satellite TV, terrestrial DVB-T/T2, or cable TV systems. Ideal for both indoor and outdoor applications where a durable, weather-resistant connection is required.

Main features

• Compression-style F connector for secure, permanent termination.
• Compatible with T100 coaxial cable (6.8 mm diameter, RG6 equivalent).
• 75 Ohm impedance, precisely matched for broadband signals up to 3000 MHz.
• Nickel-plated brass body for excellent corrosion resistance and durability.
• High shielding effectiveness (>100 dB) and low insertion loss (<0.1 dB).
• Professional-grade construction; requires a compression tool for installation.

Specifications

• Connector type: F-Type
• Connection method: Compression
• Cable compatibility: T100 (RG6 equivalent), 6.8 mm diameter
• Impedance: 75 Ohm
• Frequency range: 0 - 3000 MHz
• Material: Brass, nickel-plated
• Shielding effectiveness: >100 dB
• Insertion loss: <0.1 dB
• Return loss: >20 dB
• Application: SAT, DVB-T/T2, CATV
• Weather resistance: High (with proper installation)
• Corrosion resistance: High

Tips

Always use a proper compression tool to ensure a reliable, weatherproof seal. For outdoor installations, apply additional weatherproofing such as self-amalgamating tape over the connector-body junction to further protect against moisture ingress.
