Televes 4130 uhlový konektor IEC samec pre TV anténny kábel

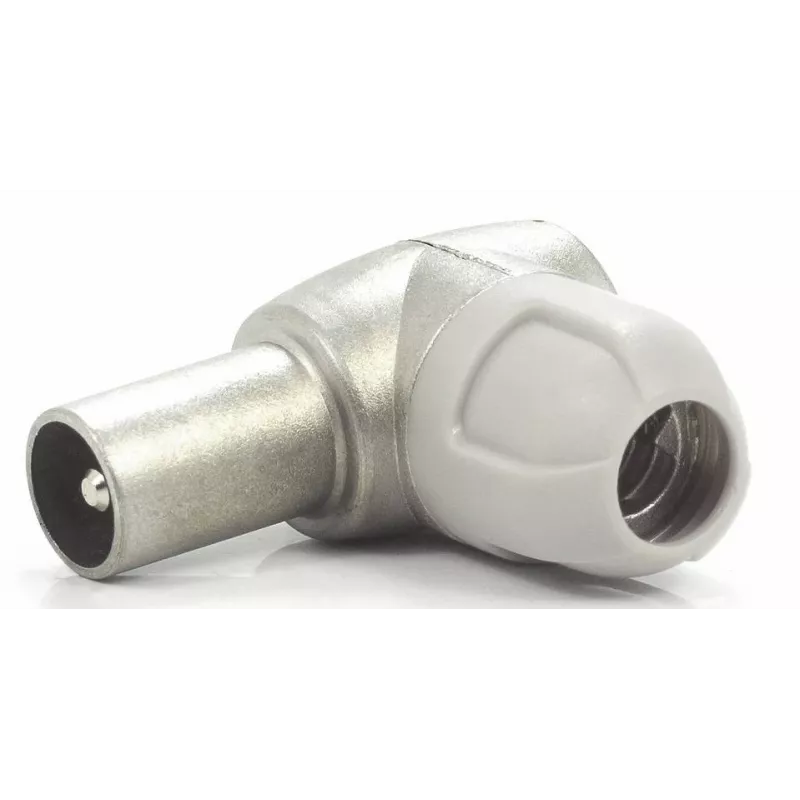

An angled IEC male coaxial connector engineered for reliable signal transmission in TV and radio installations. Its 90-degree design allows for neat cable routing in tight spaces behind wall-mounted TVs or in crowded distribution boxes. The connector ensures a secure, low-loss connection thanks to its screw-on inner conductor and clamp outer conductor, maintaining signal integrity across a wide frequency range.

Advantages

The Televes 4130 connector combines robust construction with ease of installation. The nickel-plated brass body resists corrosion and provides excellent shielding against electromagnetic interference. The angled form factor reduces cable strain and enables flush mounting in confined areas, while the screw-on center contact guarantees a stable connection that withstands vibration and repeated handling. With an insertion loss below 0.5 dB and return loss greater than 18 dB, it preserves signal quality for clear picture and sound.

Suitable for

• Connecting coaxial cables to TVs, set-top boxes, and FM tuners with IEC female inputs.
• Terrestrial (DVB-T), cable (DVB-C), and FM radio antenna systems.
• Installations where space is limited, such as behind wall-mounted displays or in structured wiring enclosures.
• Coaxial cables with diameters from 5 to 7 mm, common in residential and commercial setups.

Key specifications

• Connector type: IEC male (TV plug), angled 90 degrees.
• Impedance: 75 Ohm, compliant with IEC 60169-2.
• Frequency range: 5–2400 MHz, covering TV and satellite IF bands.
• Insertion loss: < 0.5 dB; return loss: > 18 dB.
• Body material: nickel-plated brass; insulator: plastic.

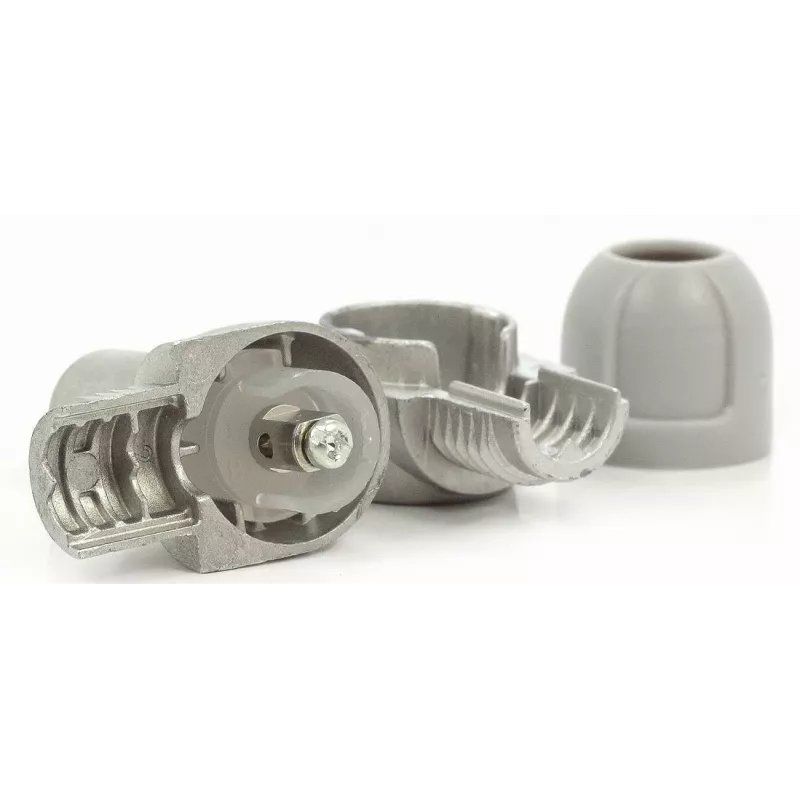

• Inner conductor: screw-on; outer conductor: clamp/screw-on.
• Operating temperature: -5°C to +60°C.
• Colour: silver/black.

Recommendations

For best results, strip the coaxial cable to the recommended dimensions and ensure the braid is evenly folded back before tightening the clamp. Use a torque wrench if available to avoid over-tightening the screw-on center contact. This connector is ideal for professional installers and DIY enthusiasts seeking a durable, high-performance solution for angled connections.
