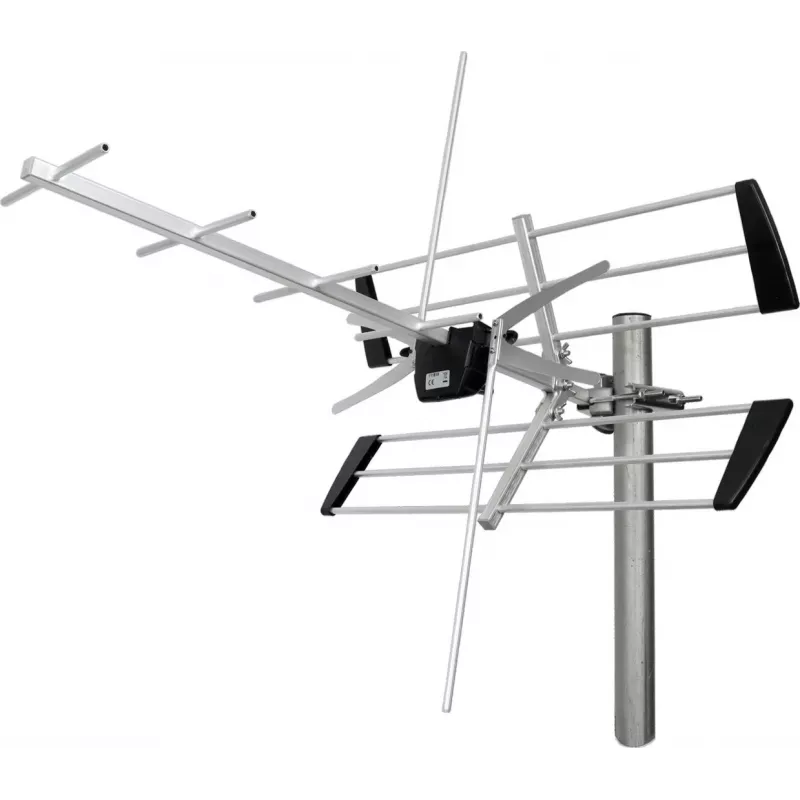

Televes anténa Yagi Edge+ MIX VHF/UHF 5G filter

The Televes Antenna Yagi Edge+ MIX VHF/UHF 5G filter is a high-performance intelligent terrestrial TV antenna designed for reliable reception of VHF (Band III) and UHF signals. Featuring advanced BOSS Tech (Balanced Output Signal System) technology, it delivers exceptional gain and self-regulating output, ensuring optimal signal quality even in challenging environments. The built-in 5G/LTE filter effectively suppresses interference from mobile networks above 694 MHz, making it ideal for areas with strong 5G signals.

Advantages

This antenna combines passive and active modes for versatile installation. In passive mode, it provides 10 dB (VHF) and 17 dB (UHF) gain, while in BOSS mode, gain is automatically regulated up to 32 dB (VHF) and 45 dB (UHF). The self-regulating output level (up to 118 dBµV) prevents overloading and ensures consistent performance. Its robust construction with aluminum and weather-resistant plastic guarantees durability, and the included mast clamp (up to 50mm diameter) simplifies mounting.

Suitable for

• Residential and commercial TV reception in areas with mixed VHF/UHF signals
• Locations with strong 5G/LTE interference requiring effective filtering
• Installations where horizontal or vertical polarization is needed

Key specifications

• Frequency Bands: VHF (174-230 MHz), UHF (470-694 MHz)
• Gain (Passive): VHF 10 dB, UHF 17 dB
• Gain (BOSS Mode): VHF 32 dB, UHF 45 dB (auto-regulated)
• Output Level: Up to 118 dBµV (self-regulating)
• Noise Figure: VHF 2.5 dB, UHF 3 dB
• Filtering: 5G/LTE (C48/C60, above 694 MHz)
• Power Supply: 12-24 VDC via coaxial cable
• Current Consumption: 47 mA max
• Wind Load: 120 N at 130 km/h
• Polarization: Horizontal / Vertical (selectable)
• Connector: F-type
• Material: Aluminum, weather-resistant plastic
• Mounting: Mast clamp included (up to 50mm diameter)

Recommendations

For best performance, use with a compatible power inserter and ensure proper grounding. The antenna is designed for outdoor installation and should be mounted securely to withstand wind loads.
