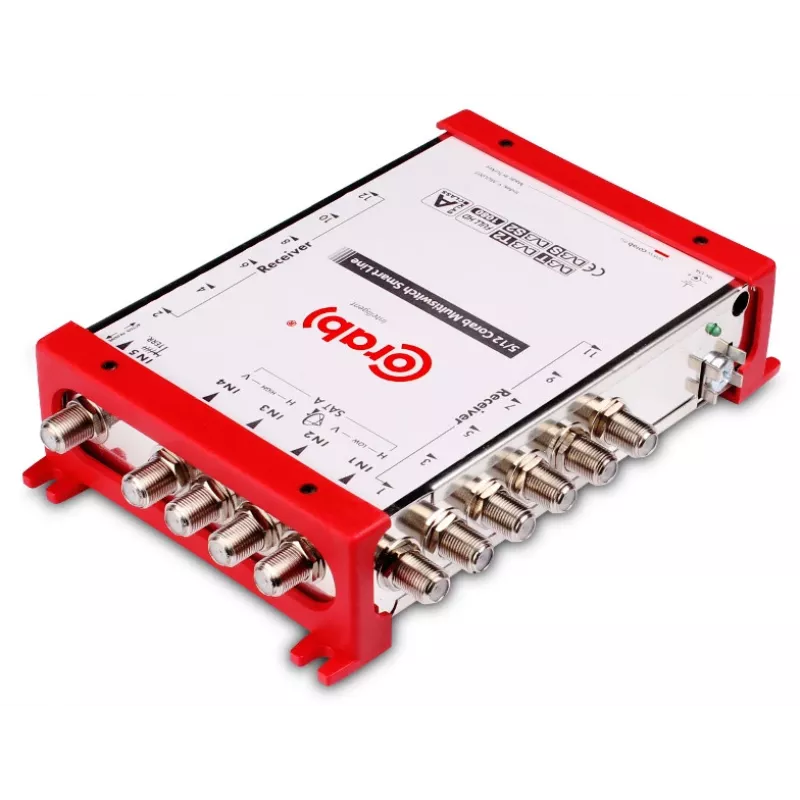

CORAB Multiswitch SMART LINE 5/12

The CORAB Multiswitch SMART LINE 5/12 is a professional-grade satellite and terrestrial distribution switch designed for modern multi-room installations. It combines 4 satellite IF inputs and 1 terrestrial input to deliver up to 12 receiver outputs, ensuring reliable signal distribution for large residential or commercial setups.

Advantages

This multiswitch offers high isolation between inputs (>25 dB), low power consumption (<8 W), and a built-in power supply for easy integration. It supports DiSEqC 2.0 protocol and is backward compatible with DiSEqC 1.0/1.1, making it versatile for various LNB and switching configurations.

Suitable for

• Multi-room satellite TV distribution
• SMATV systems
• Residential and commercial installations requiring up to 12 outputs

Key specifications

• Number of Satellite Inputs: 4 (SAT IF)
• Number of Terrestrial Inputs: 1 (TER)
• Number of Receiver Outputs: 12
• Satellite Frequency Range: 950 - 2150 MHz
• Terrestrial Frequency Range: 47 - 862 MHz
• Satellite User Output Gain: 0 ... 2 dB
• Terrestrial User Output Gain: -2 ... 0 dB
• Max Output Level (Satellite): 98 dBuV
• Max Output Level (Terrestrial): 88 dBuV
• Input/Output Connectors: F-type
• LNB Power Supply: 18V/13V, 22kHz, DiSEqC
• Switching Protocol: DiSEqC 2.0
• Isolation (SAT-SAT): >25 dB
• Isolation (SAT-TER): >25 dB
• Power Supply: Built-in 230V AC
• Power Consumption: <8 W
• Operating Temperature: -20 to +50 °C
• Housing Material: Metal

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This multiswitch is ideal for expanding your satellite TV system to multiple rooms without signal degradation.
