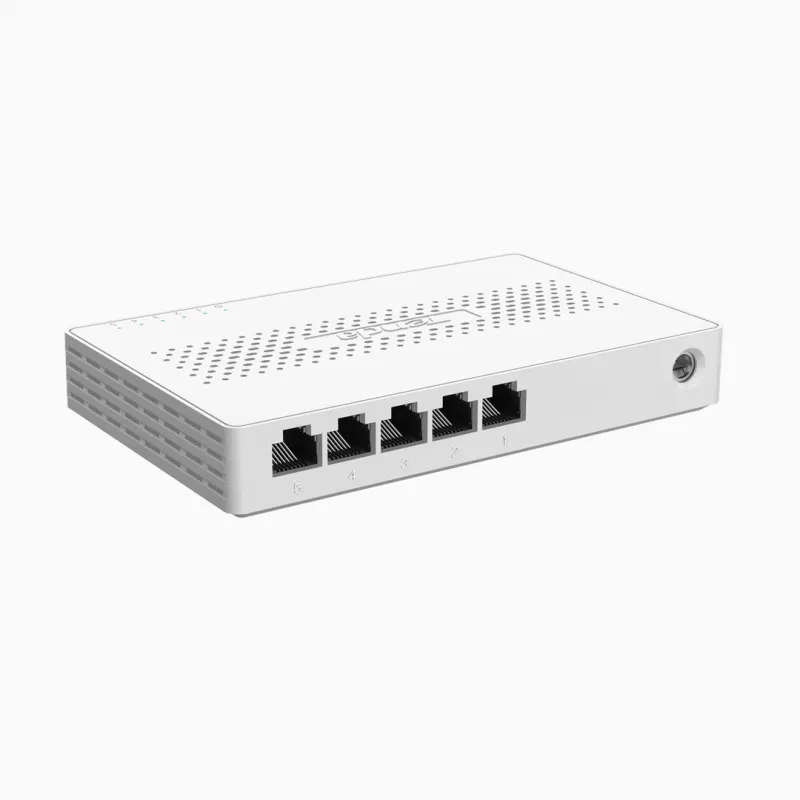

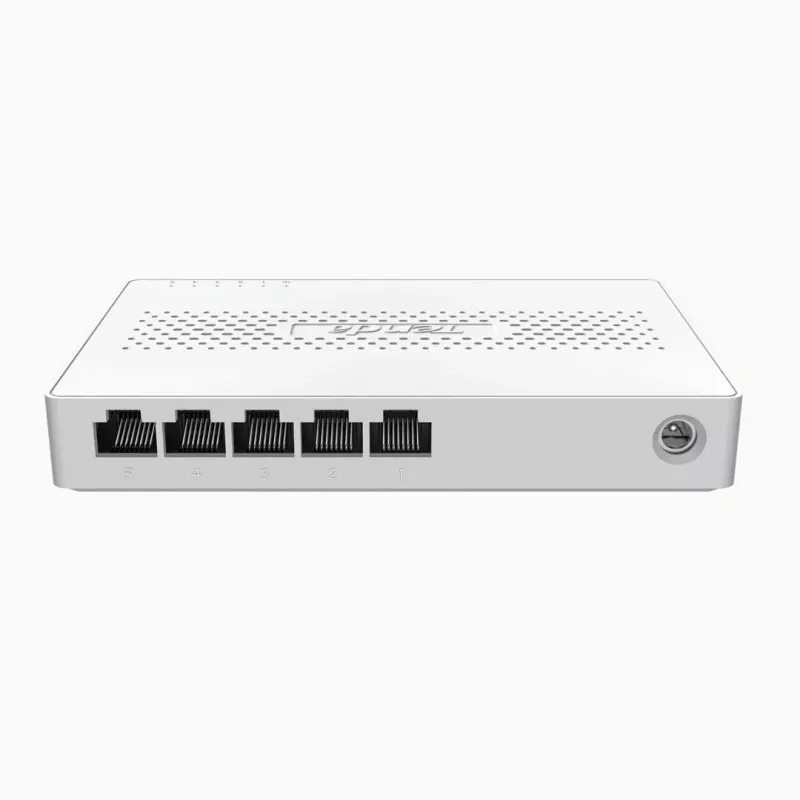

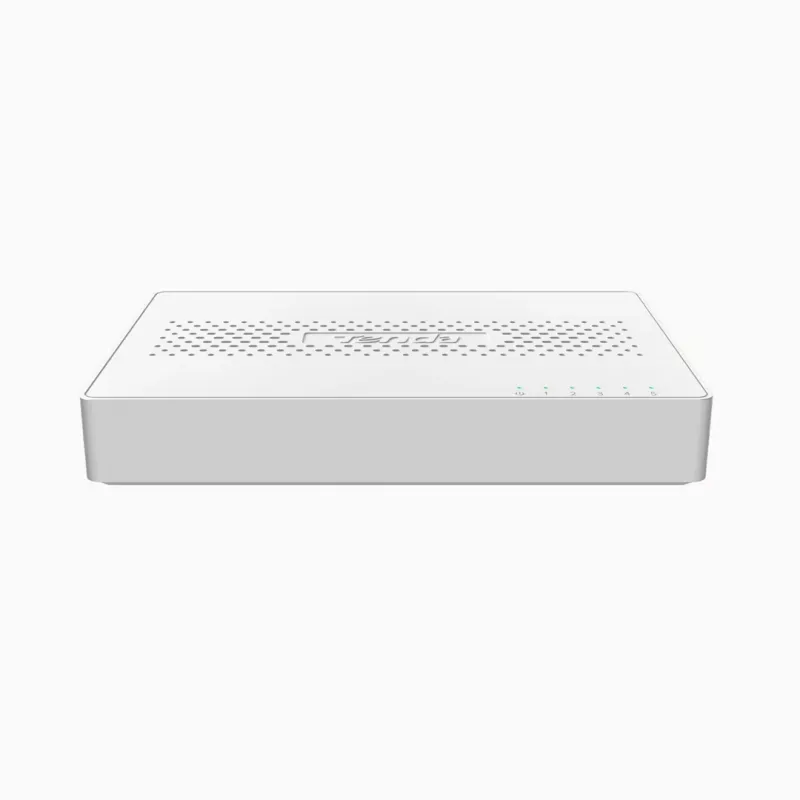

Tenda Switch SM105 Unmanaged 2.5G Ethernet 5 portov 25 Gbit/s

The Tenda Switch SM105 is an unmanaged 5-port Ethernet switch with 2.5G RJ-45 ports and a total switching capacity of 25 Gbit/s. Designed for compact deployments, the SM105 supports 16000 MAC address entries and delivers higher-than-gigabit wired connection speeds to maximize the performance of modern Wi‑Fi 6/7 access points and other 2.5G-capable devices.

Advantages

The switch provides five 2.5G Ethernet ports to remove the bottleneck of traditional gigabit switches, enabling faster real-world throughput for compatible devices. It is unmanaged and supports MDI/MDIX auto-flip on each port for simple plug-and-play setup without configuration. The device uses a dedicated performance-oriented chipset to maintain stable operation and lower power consumption. Its compact 142×90×24 mm housing saves space and includes wall-mount support for flexible placement.

Suitable for

• Connecting Wi‑Fi 6/7 access points with 2.5G uplinks
• Small office or home networks requiring multi-gigabit wired links
• Desktop or wall-mounted installations with limited space
• Unmanaged network segments where no VLAN or advanced features are needed

Key specifications

• Brand: TENDA
• Model: SM105
• Ports: 5 × 2.5G RJ-45 (100/1000/2500 Mbps)
• Switching capacity: 25 Gbit/s
• MAC address table: 16,000 entries
• Type: Unmanaged switch
• Dimensions: 142 × 90 × 24 mm
• Mounting: Desktop and wall mount supported
• Power: DC adapter included
• Networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3bz, 802.3x

How to use

Place the SM105 on a flat surface or mount it to a wall using the supplied mounting points. Connect the included DC power adapter to power the switch. Plug Ethernet cables from your devices or access points into any of the five 2.5G RJ-45 ports; each port supports MDI/MDIX so no crossover cables or manual configuration are required. The switch is unmanaged, so it will forward traffic automatically without additional setup.

Recommendations

For best results, connect multi-gigabit-capable devices such as Wi‑Fi 6/7 access points and NAS units directly to the 2.5G ports. Use quality Cat5e or Cat6 cables rated for 2.5G operation and place the switch in a ventilated area to ensure stable performance.
