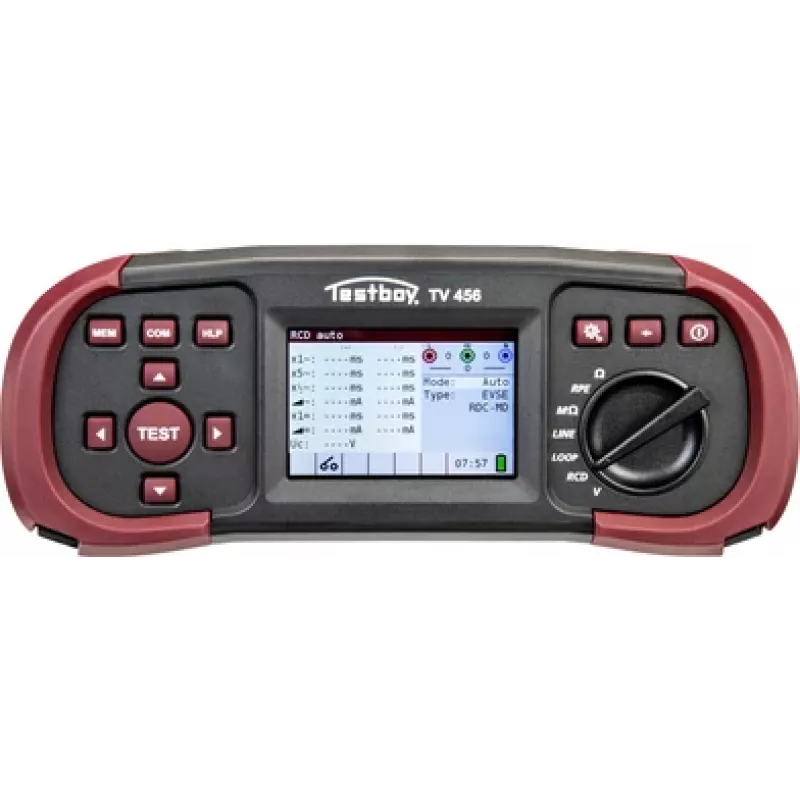

Testboy TV 456 inštalačný tester s EVSE adaptérom DIN VDE 0100-600

Electrical installations require thorough testing to verify safety and compliance. The Testboy TV 456 Installation Tester with EVSE Adapter is engineered to perform comprehensive measurements according to DIN VDE 0100-600, ensuring that low-voltage installations are safe and functional. This device is particularly suited for testing electric vehicle charging stations, making it an essential tool for modern electrical contractors.

Who is it for

This tester is intended for professional electricians, electrical inspectors, and maintenance personnel who need to verify the safety of electrical installations, including EV charging infrastructure. It is also suitable for those performing periodic testing and documentation of electrical systems in residential, commercial, and industrial settings.

Main features

• Measures insulation resistance with test voltages of 50 V, 100 V, 250 V, 500 V, and 1000 V DC.
• Performs loop impedance measurements (Z_L-PE, Z_L-N, Z_L-L) with and without RCD tripping.
• Tests RCDs of types A, AC, and F, including trip time, trip current (ramp test), contact voltage, and automatic test sequences.
• Conducts continuity testing with a 200 mA test current.
• Measures voltage (AC/DC) up to 500 V, frequency, and phase sequence.
• Supports EVSE testing for electric vehicle charging stations.
• Large color graphic LCD display with backlight for clear readings.
• Internal memory for storing measurement results.
• USB interface for data transfer to PC.
• Includes PC software for data management and report generation.
• Powered by a rechargeable Li-Ion battery pack.
• Safety rated CAT III 600 V / CAT IV 300 V.
• Protection class IP40.
• Includes EVSE adapter, test leads, probes, alligator clips, mains charger, USB cable, PC software, and carrying case.

Specifications

• Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V DC
• RCD test types: A, AC, F
• RCD test functions: trip time, trip current (ramp test), contact voltage, automatic test sequence
• Loop impedance measurement: Z_L-PE (with/without RCD trip), Z_L-N, Z_L-L
• Continuity test current: 200 mA
• Voltage measurement range: 0 - 500 V AC/DC
• Display: large color graphic LCD
• Memory: internal storage for results
• Connectivity: USB
• Power supply: rechargeable Li-Ion battery pack
• Safety rating: CAT III 600 V / CAT IV 300 V
• Protection class: IP40
• Included accessories: EVSE adapter, test leads, probes, alligator clips, mains charger, USB cable, PC software, carrying case

Tips

For best results, regularly calibrate the tester according to the manufacturer's instructions. Ensure the battery is fully charged before testing. Use the automatic test sequences for efficient compliance testing. Store the device in the provided carrying case to protect it from dust and moisture.
