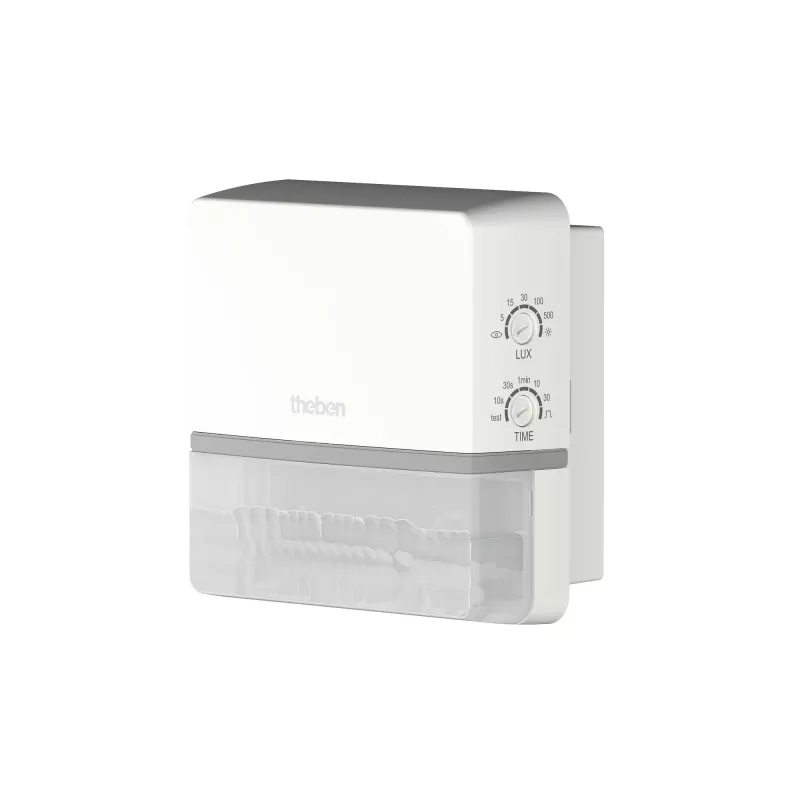

Theben TECTA D180 WH detektor pohybu nástenná montáž 180° 14m biely 1010100

Managing lighting in large indoor areas can be wasteful without reliable motion detection. The Theben TECTA D180 WH is a wall-mounted passive infrared motion detector that automatically switches lights on when movement is detected and off after a set delay, helping reduce energy consumption in corridors, stairwells, and open spaces.

Who is it for

Facility managers, electricians, and homeowners who need dependable motion-activated lighting control for medium to large rooms. It suits commercial and residential installations where a wide detection coverage and adjustable settings are required.

Main features

• Passive infrared sensor with 180° detection angle and up to 14 m range
• Wall mounting for flexible placement at a recommended height of 2.5 m
• Adjustable time delay from 10 seconds to 30 minutes
• Brightness threshold adjustable from 5 to 1000 lux
• Supports incandescent, halogen, fluorescent, and LED loads
• Robust UV-stabilised polycarbonate housing in white

Specifications

• Sensor type: Passive Infrared (PIR)
• Detection angle: 180°
• Detection range: 14 m
• Mounting type: Wall
• Recommended installation height: 2.5 m
• Product colour: White
• International Protection (IP) code: IP55
• Operating voltage: 230 V AC
• Frequency: 50 – 60 Hz
• Switching output: 1x NO
• Max. incandescent lamp load: 2300 W
• Max. halogen lamp load: 2300 W
• Max. fluorescent lamp load (uncompensated): 1150 VA
• Max. LED load: 300 W
• Time setting range: 10 s – 30 min
• Brightness setting range: 5 – 1000 lx
• Ambient temperature: -25 °C to +50 °C
• Housing material: UV-stabilised Polycarbonate

Tips

For optimal coverage, mount the detector at 2.5 m height and avoid pointing it at heat sources or reflective surfaces that may cause false triggers. Adjust the brightness setting to prevent activation during daylight if not needed.
