THEBEN thePassa P360 KNX UP WH stropný vstavaný snímač prítomnosti pre chodby a sklady

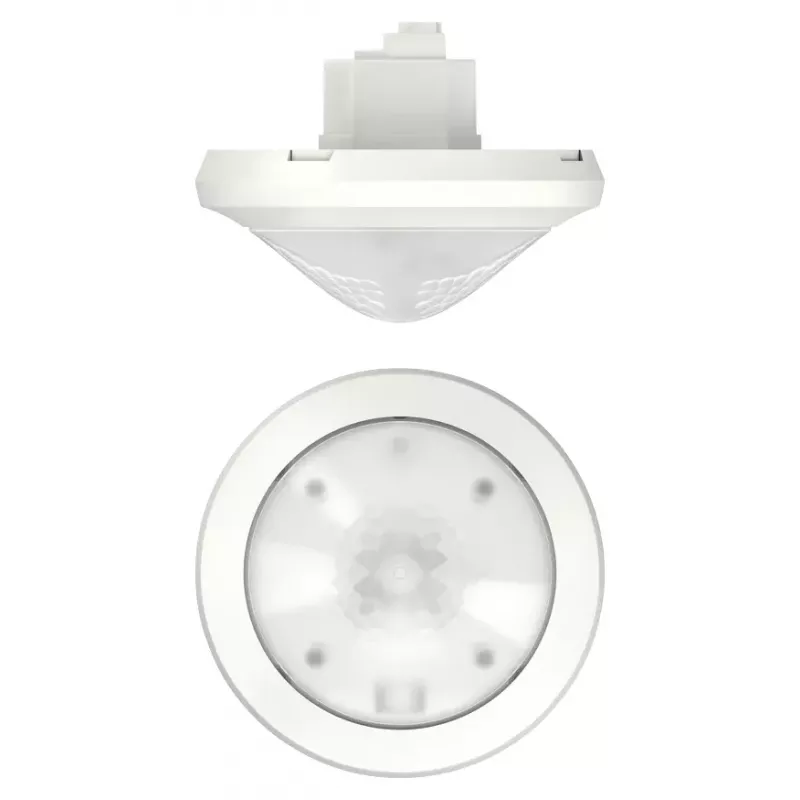

THEBEN thePassa P360 KNX UP WH is a ceiling flush-mounted passive infrared presence detector engineered for corridors, warehouses, and similar high-traffic spaces. Its 360° detection angle and corridor range of up to 24 metres ensure reliable presence detection and automatic lighting control across extensive areas. Integrated KNX bus communication enables seamless integration into building automation systems for lighting, HVAC, and constant light regulation.

Advantages

The thePassa P360 KNX UP WH combines precise presence detection with advanced KNX functionality. Three independent channels—two for lighting and one for HVAC—allow tailored control of different zones. The built-in light sensor (10–2000 lux) supports constant light control, maintaining desired illuminance while optimising energy use. Flush mounting with a visible diameter of only 70 mm and a height of 10 mm provides a discreet, professional appearance. UV-stabilised polycarbonate housing ensures durability, and the device operates within a wide temperature range from -15 °C to +50 °C.

Suitable for

• Corridors and passageways in offices, schools, and public buildings
• Warehouses and logistics areas with high ceilings
• Storage rooms and utility spaces requiring automatic lighting
• HVAC control in large open areas
• KNX-based building automation projects

Key specifications

• Detection angle: 360°
• Detection range: up to 24 m in corridors (at 3 m mounting height)
• Installation height: 2–10 m
• Mounting: ceiling flush-mounted (UP)
• Bus system: KNX (21–30 V DC)
• Colour: white
• Light sensor range: 10–2000 lux
• Number of channels: 3 (Light 1, Light 2, HVAC)
• Sensor technology: passive infrared (PIR)
• IP rating: IP20
• Operating temperature: -15 °C to +50 °C
• Housing material: UV-stabilised polycarbonate
• Power consumption: < 0.5 W
• Installation opening diameter: 60 mm
• Visible diameter: 70 mm
• Visible height: 10 mm
• Configuration: ETS software

Recommendations

For optimal performance, install the thePassa P360 KNX UP WH at a height between 2 and 10 metres, ensuring an unobstructed field of view. Use ETS software to commission the device and configure channels according to the specific lighting and HVAC requirements of the space. In corridors, position the detector to maximise the 24-metre range and reduce the number of units needed.
