Tlačidlový panel DeLOCK 20986 strieborný 230V 3A

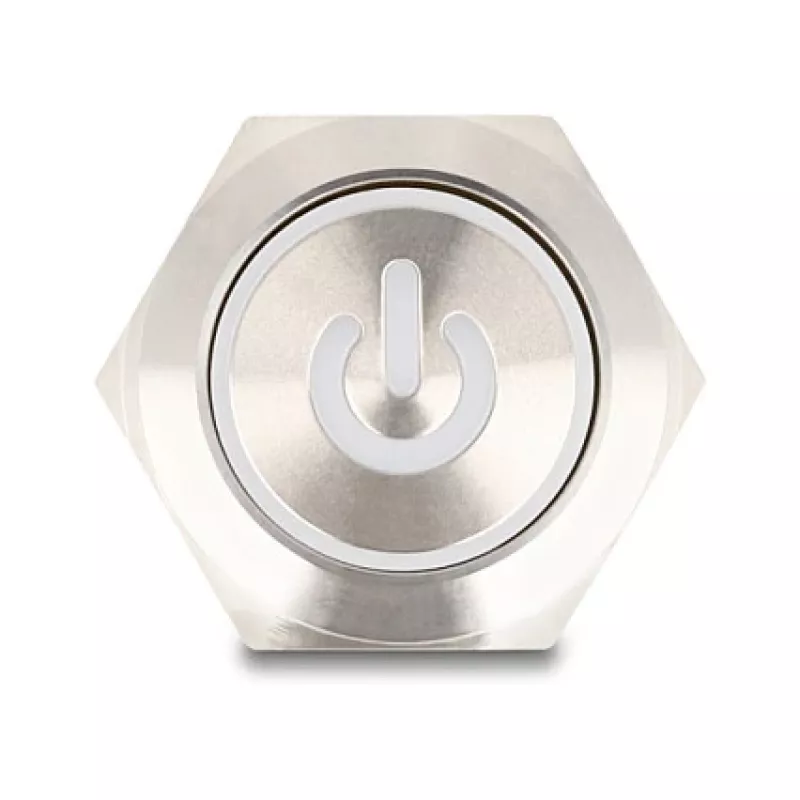

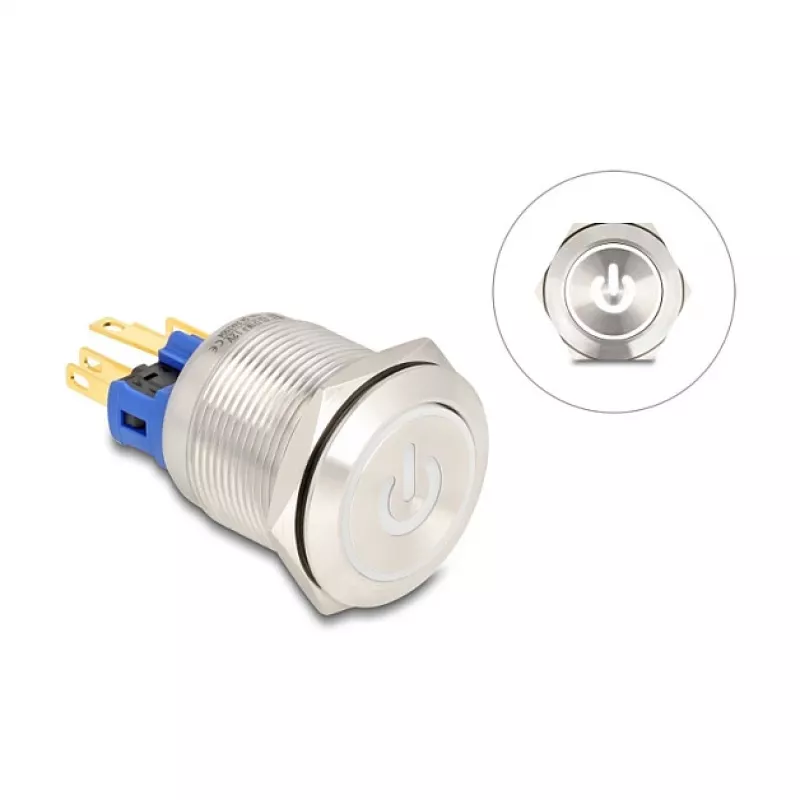

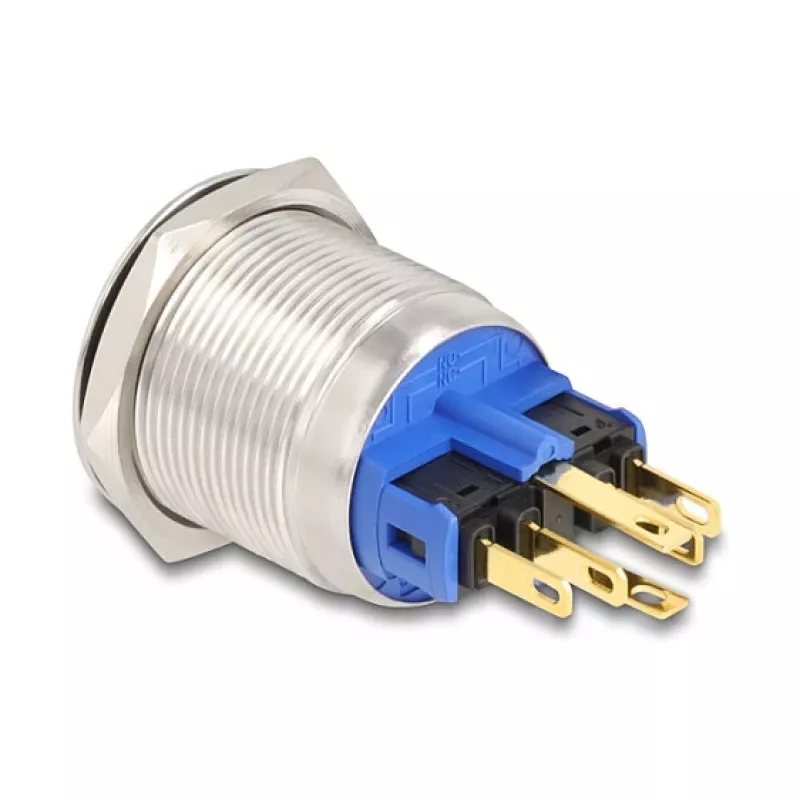

The DeLOCK 20986 is a silver push-button panel made of nickel and stainless steel, designed for flush installation in control panels and similar housings. It is rated for 230 V and a maximum current of 3 A, with dimensions of 45 mm width and 30 mm depth. The push button returns to its initial position after being pressed and features both NO (normally open, closer) and NC (normally closed, opener) contact functions suitable for switching and signaling tasks.

Advantages

The stainless steel and nickel construction provides corrosion resistance and a consistent surface appearance. The compact 45 × 30 mm dimensions enable installation in space-limited panels. Electrical ratings of 230 V and 3 A suit low-power control circuits. The mechanical push-button design with spring return ensures a defined tactile action, while separate NO and NC contacts allow flexible wiring for a variety of control and signaling functions.

Suitable for

• Industrial control panels and machine control units
• Control and regulation technology in building systems
• Doorbell or corridor lighting triggers
• Automotive and consumer equipment requiring a momentary push button

Key specifications

• Manufacturer: DELOCK (MPN 20986, EAN 4043619209866)
• Colour: Silver (nickel and stainless steel)
• Rated voltage: 230 V
• Maximum current: 3 A
• Dimensions: 45 mm (width) × 30 mm (depth)
• Contact types: NO (closer) and NC (opener)

How to use

Install the push-button panel into a suitably cut opening in a control panel or enclosure that matches the stated dimensions. Connect the NO and NC terminals according to the required function: wire the NO contact to create a connection when the button is pressed, or use the NC contact where release on press is required. Ensure the wiring and mounting comply with applicable electrical safety standards and that the circuit does not exceed the 230 V/3 A rating.

Recommendations

Use the DeLOCK 20986 in low-power control and signaling circuits. Avoid loads exceeding 3 A and protect the device against prolonged exposure to aggressive chemicals or excessive moisture to preserve the stainless steel finish and mechanical reliability.
