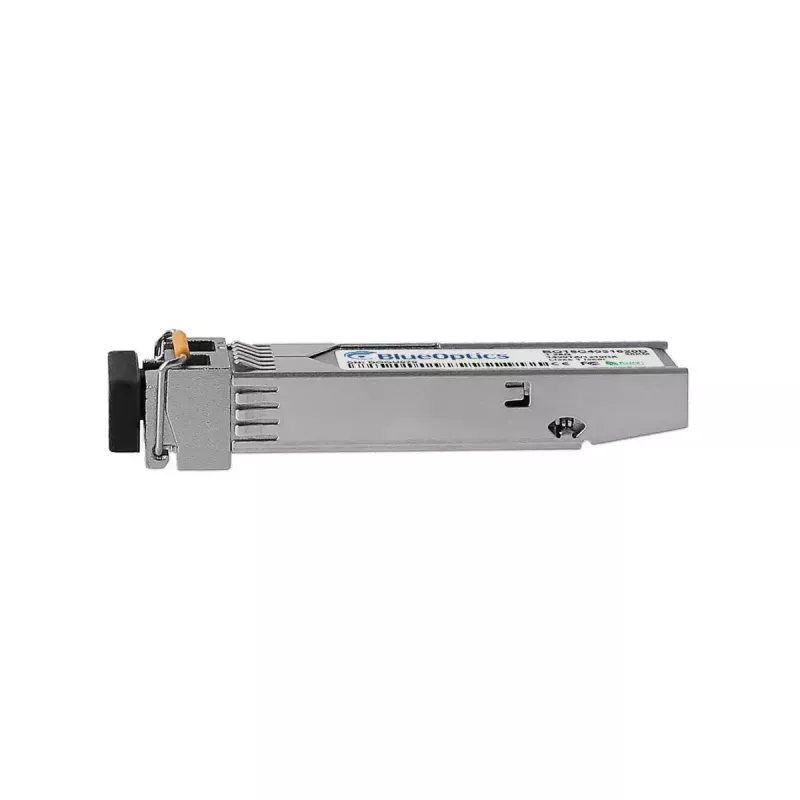

SFP transceiver modul BlueOptics SFP-17B-BO 1250 Mbit/s optický

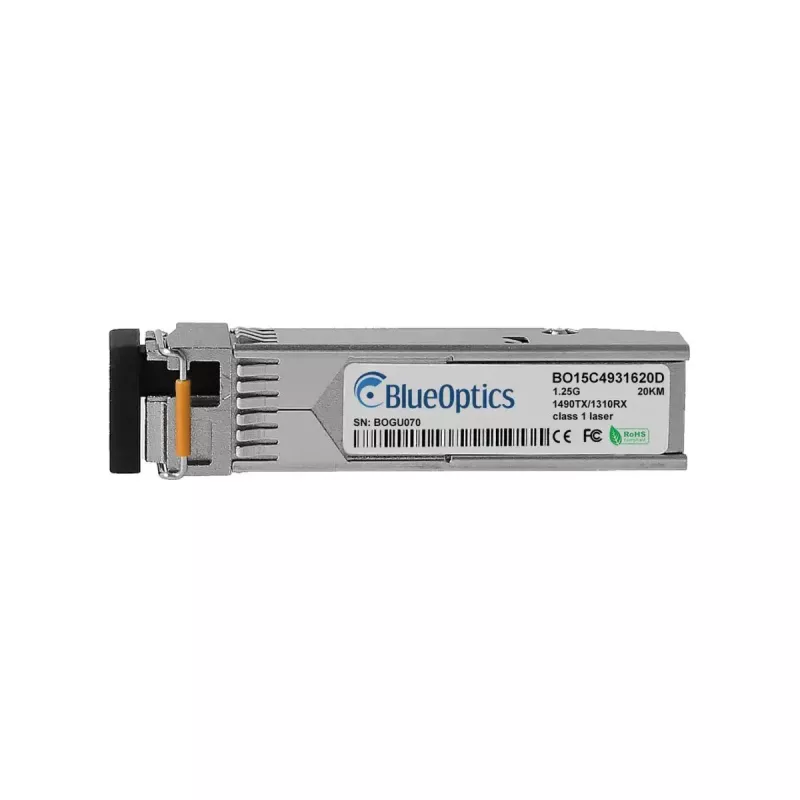

The BlueOptics SFP-17B-BO is a single‑port SFP fiber optic transceiver module designed for 1.25 Gbit/s (1250 Mbit/s) applications. It uses a metal housing, operates from a 3.3 V supply and weighs approximately 3 g. The module implements a bidirectional 1000BASE-BX-D design with separate transmit and receive wavelengths for single‑mode fiber and an LC simplex connector following MSA standards. It is intended for use in network equipment that supports RAD SFP-17b compatible transceivers and supports optical links up to around 20 km depending on fiber and system parameters.

Advantages

The transceiver offers compatibility with common RAD SFP-17b platforms while conforming to MSA mechanical and electrical standards, providing plug-and-play replacement capability. Its metal housing improves mechanical robustness and thermal dissipation. Built-in digital diagnostics (DDM/DOM, when supported by host hardware) supplies real‑time operational data such as supply voltage, laser bias current, optical output/input power and temperature for easier monitoring and troubleshooting.

Suitable for

• Gigabit Ethernet links over single‑mode fiber (1000BASE‑BX‑D)
• Long‑reach connections up to approximately 20 km (system dependent)
• Use in switches, routers, media converters and compatible RAD hardware platforms
• Environments requiring DDM/DOM monitoring for remote diagnostics

Key specifications

• Interface type: SFP (small form‑factor pluggable)
• Data rate: 1250 Mbit/s (1.25 Gbit/s)
• Optical type: Single‑mode fiber, bidirectional (BX‑D) with separate Tx/Rx wavelengths

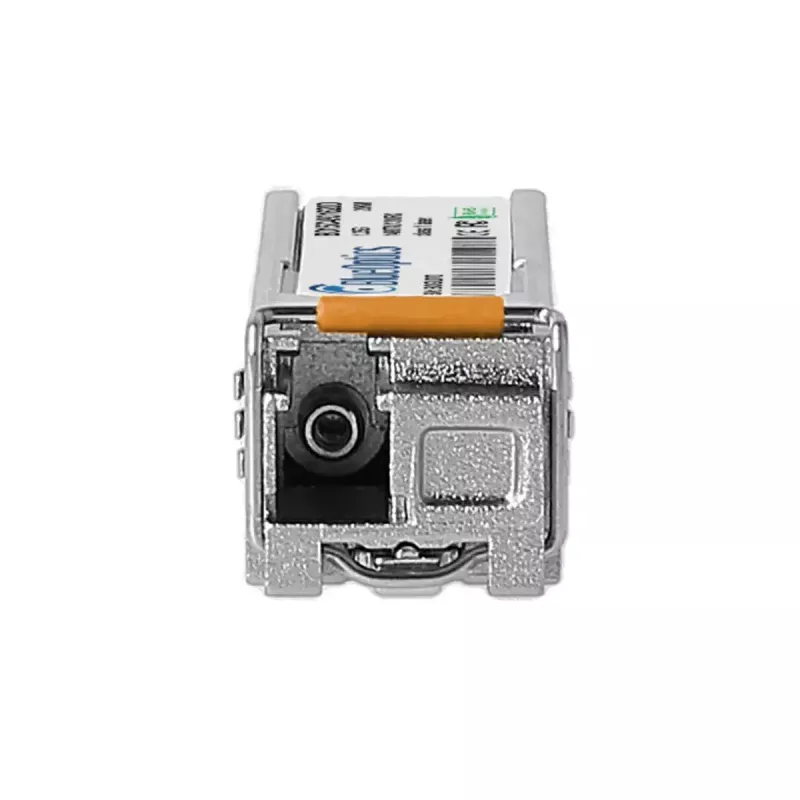

• Connector: LC simplex
• Operating voltage: 3.3 V
• Housing: Metal
• Typical reach: up to ~20 km (depends on fiber and link budget)
• Weight: ~3 g
• Digital diagnostics: supported (DDM/DOM) when enabled by host hardware

How to use

Power down the host device if recommended by the equipment manufacturer, insert the SFP transceiver into a compatible SFP slot until it seats firmly, and secure any retainers if present. Connect an LC simplex single‑mode fiber patch cable to the module, observing correct Tx/Rx orientation for bidirectional links. Ensure the host device recognizes the module and that link parameters (speed, duplex, and DDM support) match the network configuration. Verify optical power levels and diagnostics via the host management interface if available.

Recommendations

Use high‑quality single‑mode fiber and LC patch cords, maintain clean optical endfaces, and confirm that the host hardware supports RAD SFP‑17b compatible BX‑D transceivers and DDM/DOM if diagnostics are required. Observe ESD precautions when handling the module and store unused transceivers in protective caps to avoid contamination.
