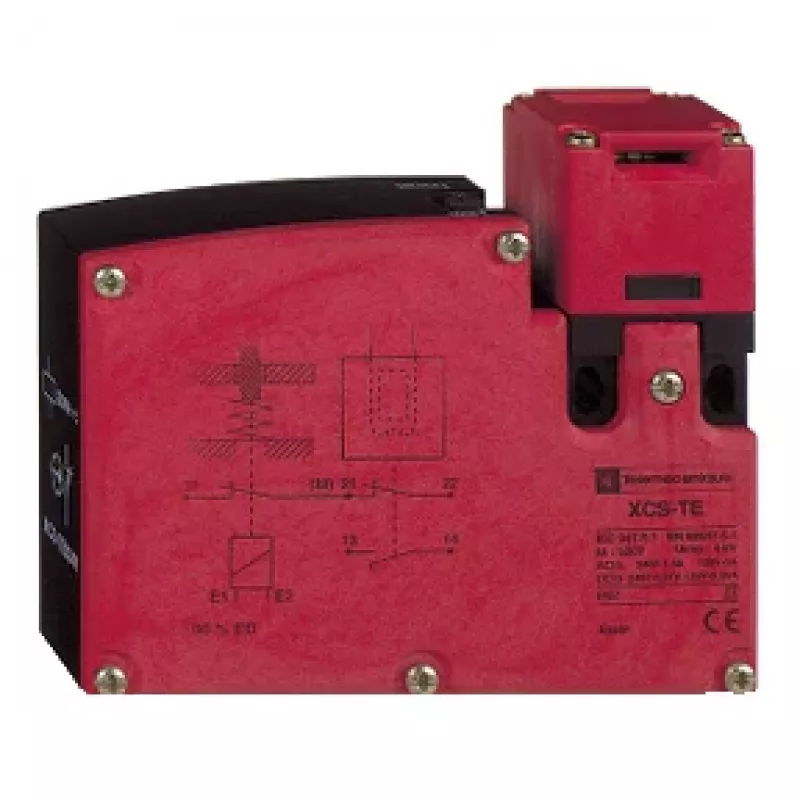

TMSS GERMANY Telemechanique Sensors bezpečnostný polohový spínač 24V XCSTE5312

The TMSS GERMANY XCSTE5312 is a safety position switch from the Preventa XCS series, engineered for reliable machine guarding. Unlike generic limit switches, it offers a snap action contact block with 1 NC + 1 NO configuration, ensuring positive opening of the safety contact for dependable stop signals.

Highlights

• Lever actuator with thermoplastic roller for smooth operation
• Compact plastic housing with IP67 protection for harsh environments
• Screw clamp terminals and Pg 11 cable entry for straightforward wiring
• Mechanical durability of 10 million cycles for long service life
• Wide operating temperature range from -25°C to 70°C

In daily use

Mount the XCSTE5312 on a fixed guard or frame, and connect the NC contact to your safety relay or controller. The roller lever follows the guard movement, and the snap action mechanism ensures a crisp, repeatable switching point. With its robust plastic body and IP67 rating, it withstands washdowns and dusty conditions, making it suitable for packaging, material handling, and assembly lines.

Full specifications

• Switch Type: Safety Limit Switch
• Actuator Type: Lever with thermoplastic roller
• Contact Configuration: 1 NC + 1 NO (Snap action)
• Electrical Connection: Screw clamp terminals, 1 x 0.34...2 x 1.5 mm²
• Cable Entry: 1 entry tapped for Pg 11
• Housing Material: Plastic
• IP Protection Rating: IP67
• Rated Insulation Voltage (Ui): 300 V (conforming to EN/IEC 60947-5-1)
• Rated Operational Current (Ie) AC-15: 1.5 A at 240 V
• Rated Operational Current (Ie) DC-13: 0.1 A at 250 V
• Minimum Actuation Speed: 0.01 m/min
• Maximum Actuation Speed: 0.5 m/s
• Mechanical Durability: 10,000,000 cycles
• Operating Temperature: -25 to 70 °C
• Storage Temperature: -40 to 70 °C
• Safety Level: Can reach PL e/Category 4 (with appropriate monitoring system)
• Mounting Type: Body fixing
• Short-circuit Protection: 4 A gG cartridge fuse (conforming to EN/IEC 60947-5-1)

Final note

For safety applications, always verify the complete system according to the relevant standards and use an appropriate monitoring device to achieve the required safety level.
