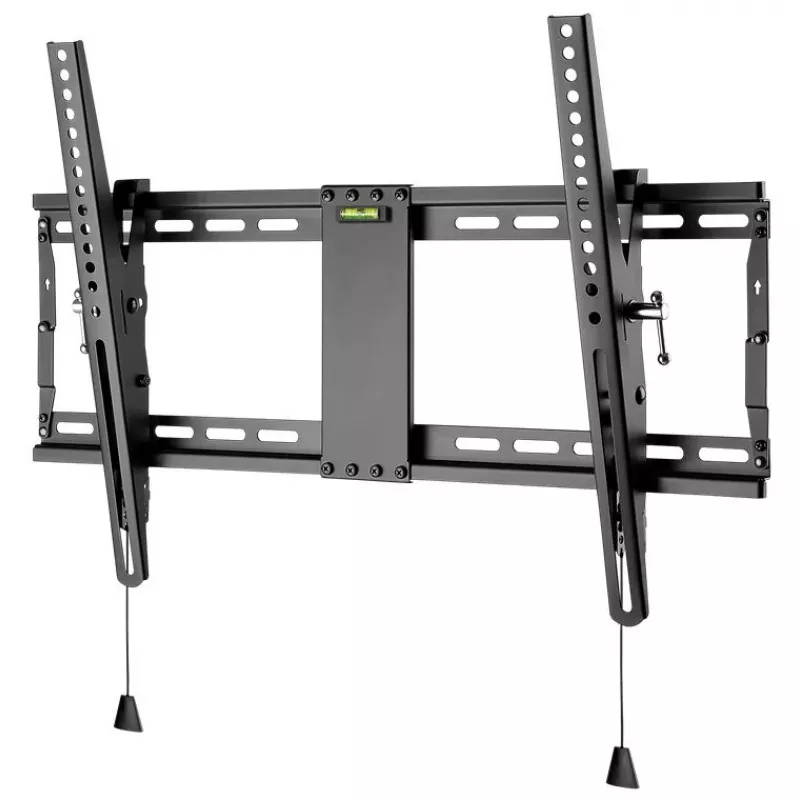

TV držiak Goobay 49929 čierny 70" 70 kg VESA 200x200 až 600x400

The Goobay 49929 TV mount is designed for flat-screen TVs from 37 to 70 inches (94–178 cm) with a maximum weight of 70 kg. It supports VESA patterns from 200x200 up to 600x400 mm and offers a slim profile with a minimum distance of 4.9 cm from the wall. The bracket provides a tilting range from -12° to 3° and allows lateral adjustment on the wall plate for precise positioning.

Advantages

This tilting wall mount secures TVs up to 70 kg while keeping a low profile close to the wall. The spring closure with an easy-release cord lock enables safe, quick mounting and removal of the panel. Adjustable tilt and lateral movement on the wall plate allow fine positioning to improve viewing angle and reduce reflections.

Suitable for

• Mounting 37"–70" flat-panel TVs (94–178 cm)
• TVs with VESA 200x200 to 600x400 mm
• Installations requiring a slim wall distance (min. 4.9 cm)
• Situations needing slight tilt adjustment (−12° to 3°)

Key specifications

• Model: Goobay 49929
• Supported screen size: 37"–70" (94–178 cm)
• Maximum weight capacity: 70 kg
• VESA compatibility: 200 x 200 up to 600 x 400 mm
• Tilt range: −12° to 3°
• Minimum distance to wall: 4.9 cm
• Colour: Black
• Displays supported: 1

How to use

Attach the wall plate to a suitable load-bearing surface following the included mounting instructions and using appropriate anchors and screws for your wall type. Fix the TV mounting arms to the display using compatible VESA holes, then hang the TV on the wall plate. Use the spring closure with the cord lock to secure the set in place. Tilt the screen within the −12° to 3° range and slide the TV left or right on the wall plate to achieve the desired position.

Recommendations

Ensure the mounting surface and fixings are rated for a load greater than the TV weight (including any accessories). Use appropriate tools and, if necessary, professional installation for heavy TVs or non-solid walls. Verify VESA compatibility before installation.
