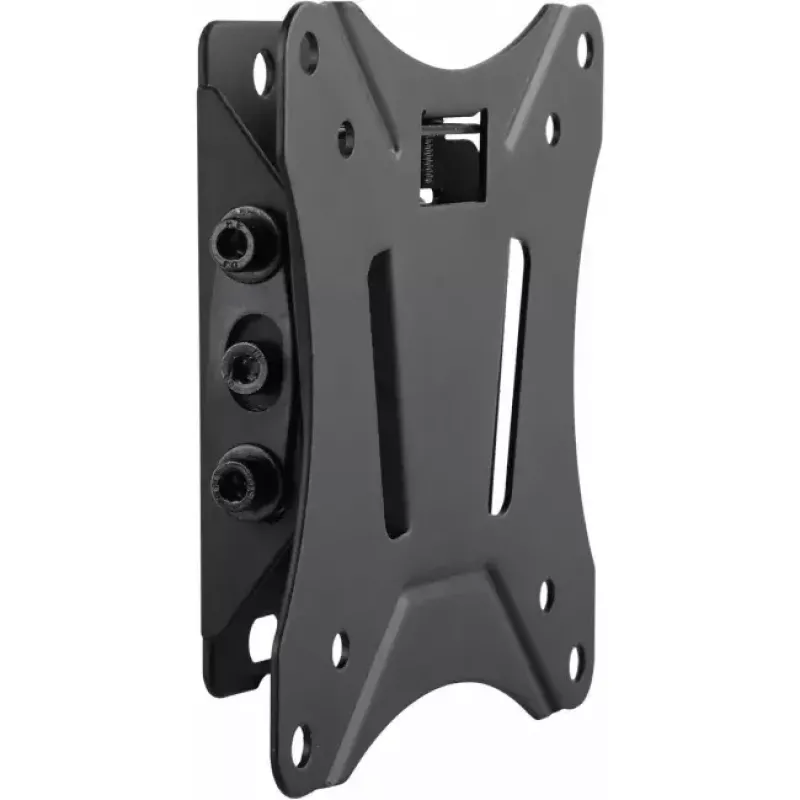

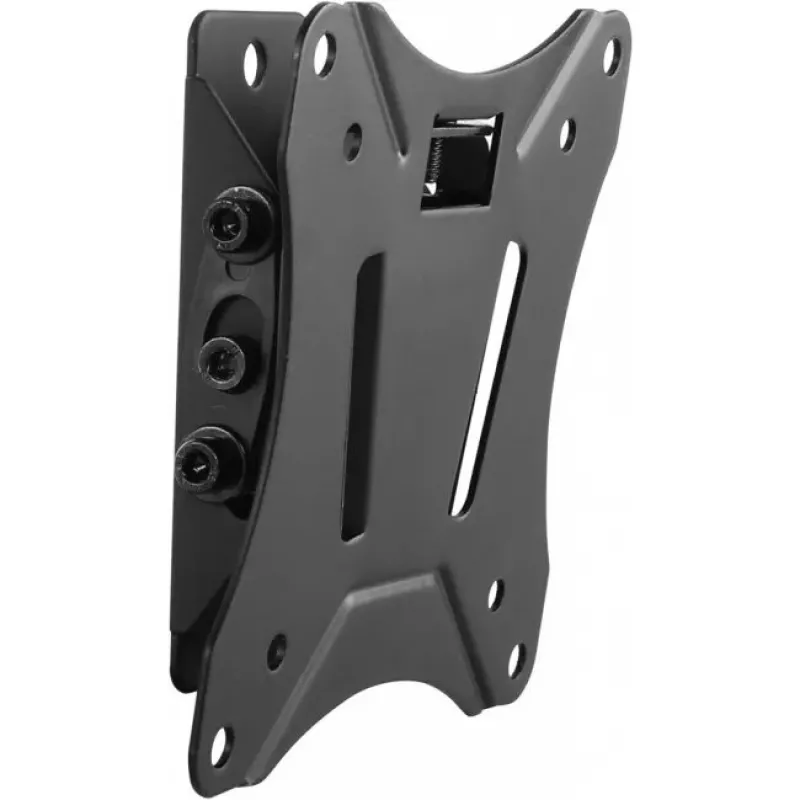

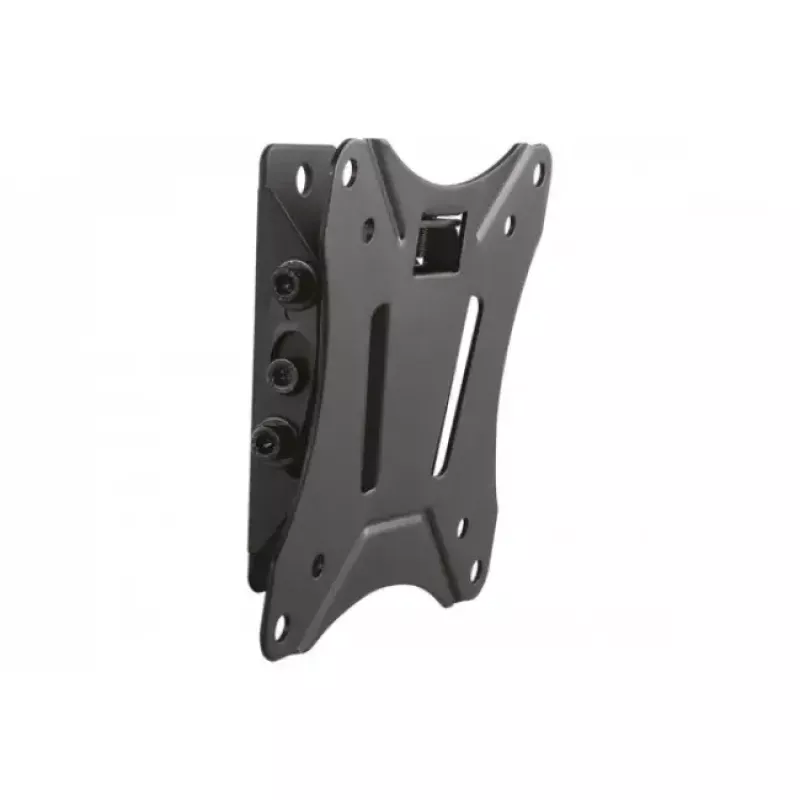

TV držiak Schwaiger LWHT2725 513 čierny

The SCHWAIGER LWHT2725 513 TV wall mount with one hinge is intended for mounting a single monitor or flat screen. It supports VESA patterns from 75 x 75 mm to 100 x 100 mm and is rated for screens up to 25 kg. The mount has a slim profile with a maximum distance from the wall of 3.4 cm and a black finish.

Advantages

The mount provides a simple tilting function with a range from -3° to 12°, a compact design that keeps the display close to the wall, and a lightweight construction (0.9 kg) for easy handling and installation. Its black colour integrates unobtrusively into most interiors.

Suitable for

• Mounting a single flat-screen TV or monitor
• Screens compatible with VESA 75 x 75 mm and 100 x 100 mm
• Displays weighing up to 25 kg

Key specifications

• Brand: SCHWAIGER
• Model: LWHT2725 513
• Maximum VESA mount: 100 x 100 mm (also fits 75 x 75 mm)
• Maximum weight capacity: 25 kg
• Weight: 0.9 kg
• Number of displays supported: 1

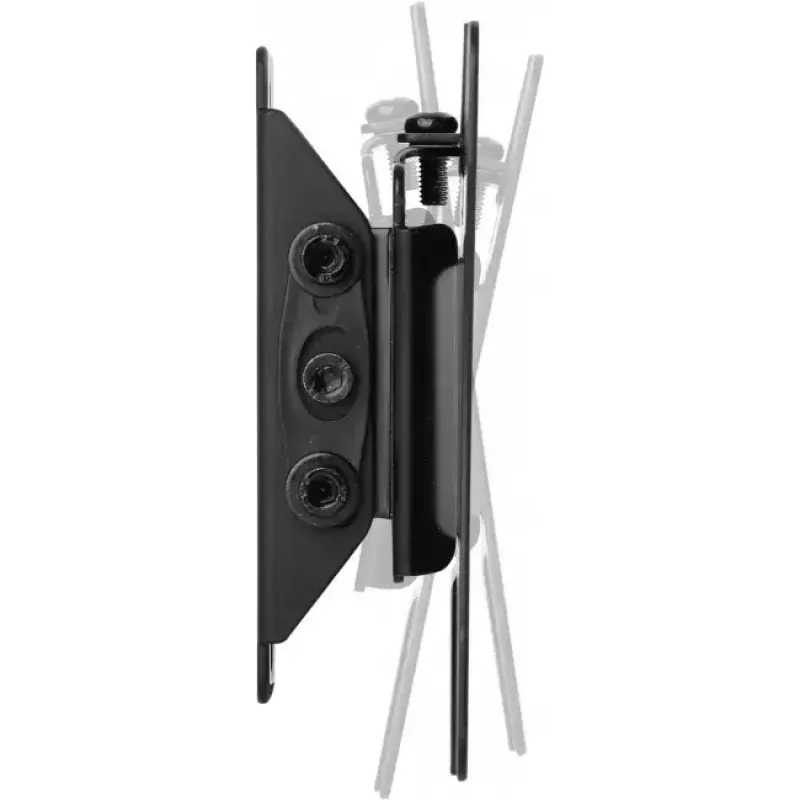

• Tilt range: -3° to 12°
• Max distance from wall: 3.4 cm
• Colour: Black

How to use

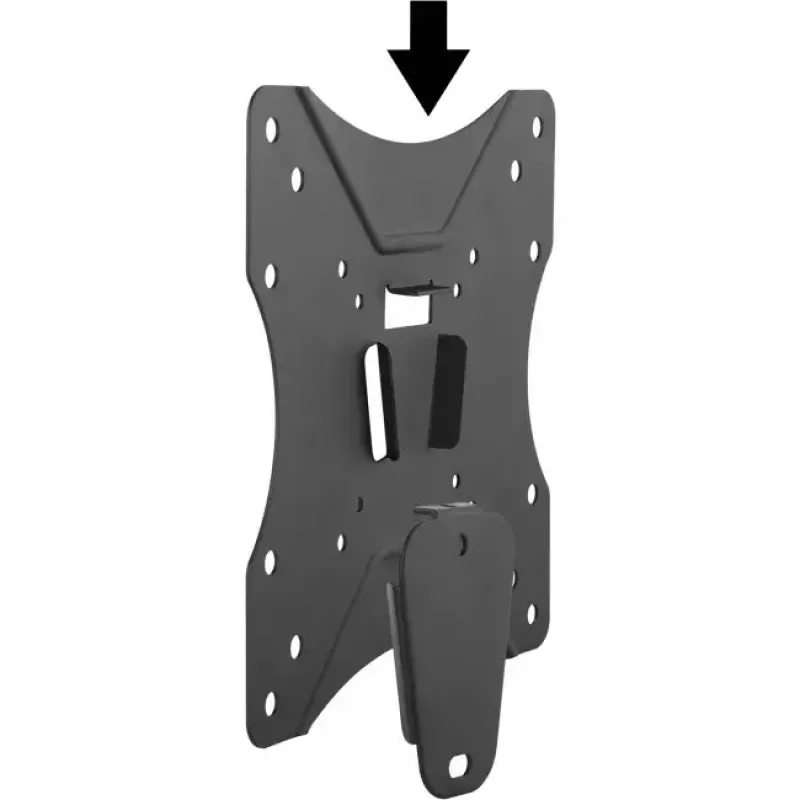

Attach the wall plate to a suitable wall surface using appropriate screws and anchors for the wall material (not included). Fasten the mounting plate to the back of the screen using the matching VESA holes (75 x 75 mm or 100 x 100 mm) and the correct screws for your screen. Hang the screen on the wall bracket and secure it according to the mounting instructions. Adjust tilt within the -3° to 12° range to obtain the desired viewing angle.

Recommendations

Ensure the wall and fixings can support the combined weight of the mount and screen (up to 25 kg). Use appropriate screws and anchors for your wall type and follow manufacturer instructions during installation. If unsure, consult a qualified installer.
