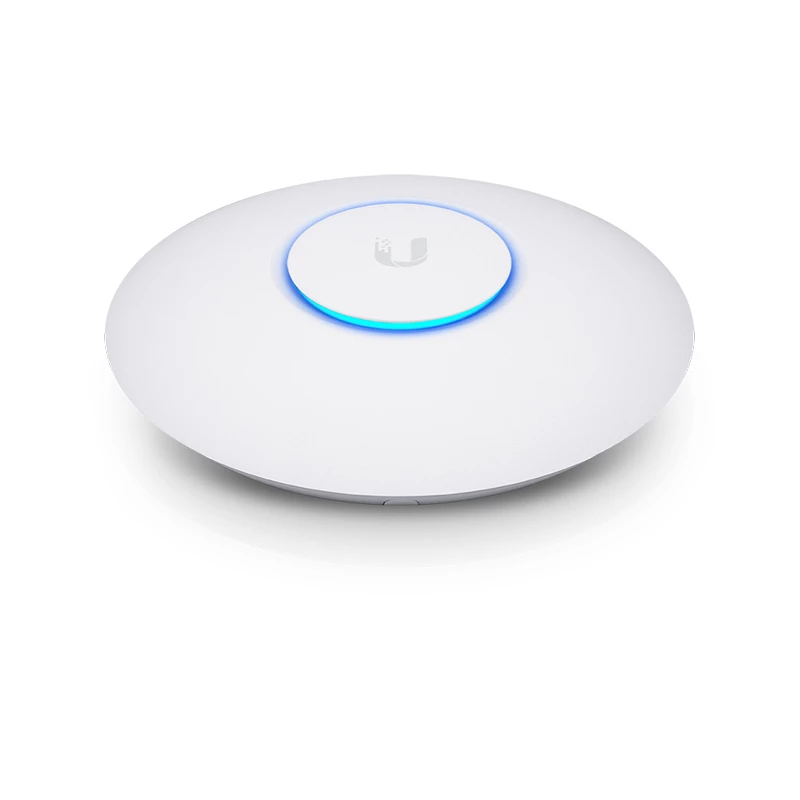

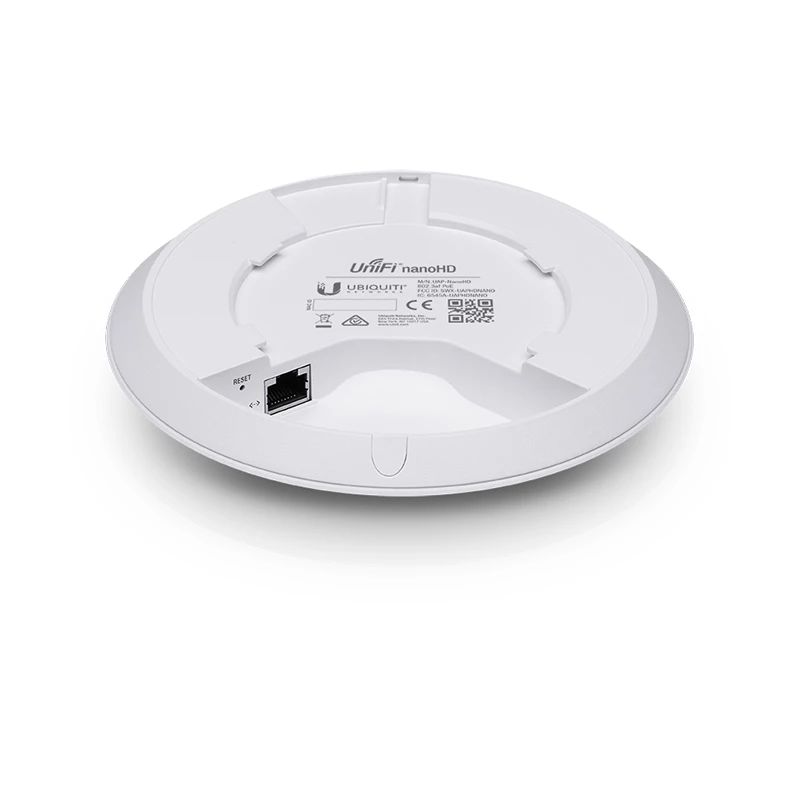

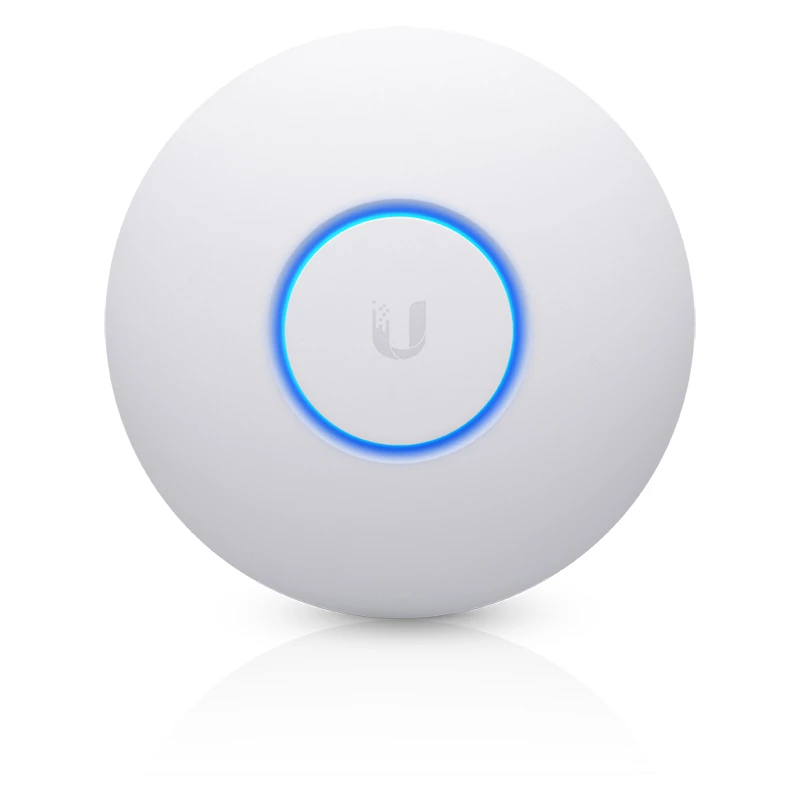

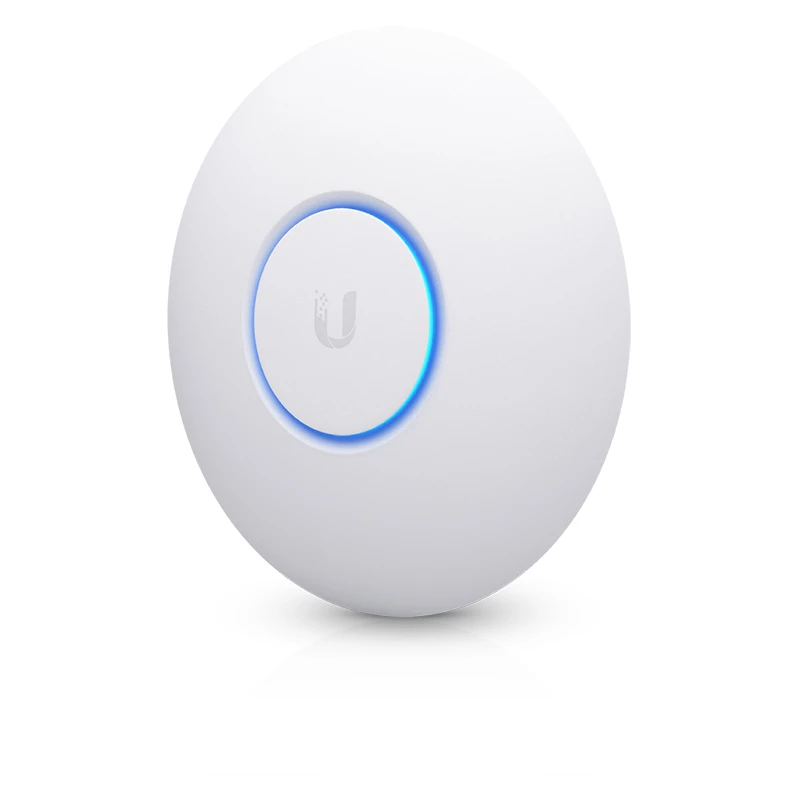

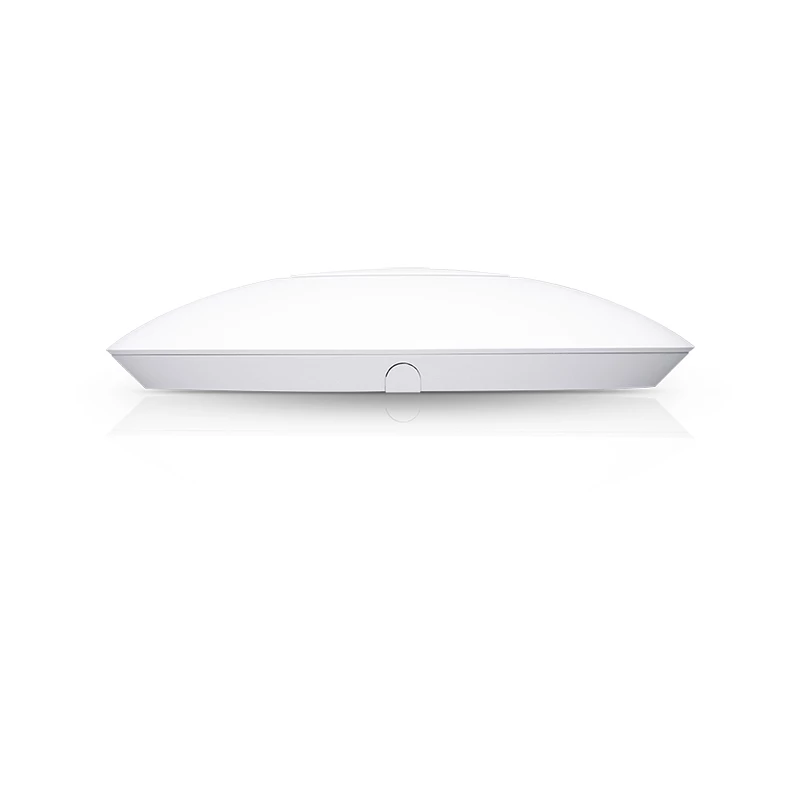

UBIQUITI NETWORKS Access Point Ubiquiti UAP-nanoHD 1300 Mbit/s 4x4 MU-MIMO 3-pack

The Ubiquiti UniFi nanoHD is a compact enterprise-class access point that delivers 802.11ac Wave 2 performance on both 2.4 GHz and 5 GHz bands. It supports a maximum data rate of 1733 Mbit/s and includes a single Gigabit Ethernet port with Power over Ethernet (PoE) capability. The AP integrates with the UniFi controller software for centralized management, offering RF mapping, real-time status, automatic device discovery and advanced security options such as AES, TKIP and WPA2.

Advantages

The UniFi nanoHD combines high-density MU‑MIMO wireless performance with a refined industrial design and simple mounting hardware for easy installation. Its compatibility with the UniFi Controller—deployable on-site, in a private cloud, via public cloud services or on a dedicated UniFi Cloud Key—reduces the need for specialized training while providing centralized configuration and monitoring. The compact unit supports enterprise features and unlimited scalability within a unified management system.

Suitable for

• Office environments with medium to high client density
• Schools, libraries and campus areas requiring centralized Wi‑Fi management
• Retail and hospitality venues needing secure, managed wireless access
• Small to large deployments where PoE installation flexibility is required

Key specifications

• Wireless standard: IEEE 802.11a/b/g/n/ac (Wave 2)
• Frequency bands: 2.4 GHz and 5 GHz
• Maximum data rate: 1733 Mbit/s
• Ethernet: 1 × Gigabit RJ‑45 (10/100/1000) with PoE
• Security: AES, TKIP, WPA2
• Weight: 0.3 kg
• Colour: White
• Model / MPN: UAP-NANOHD-3

How to use

Mount the UniFi nanoHD using the included hardware and connect it to a PoE-enabled switch or injector via the RJ‑45 port. Access the UniFi Controller from a web browser or the UniFi mobile app (iOS/Android) to adopt and configure the AP. Use the controller interface to set SSIDs, security settings (WPA2/AES), RF profiles and guest access policies. For larger deployments, deploy the UniFi Controller on a local server, cloud instance or UniFi Cloud Key to centrally manage multiple devices.

Recommendations

Place the access point on ceilings or high walls in open areas for optimal coverage; avoid locating it near large metal objects or sources of interference. For high-density environments, enable RF optimisation features in the UniFi Controller and consider additional APs to distribute client load.
