Ubiquiti UACC-OM-SFP10-1590 sieťový transceiver modul 11300 Mbit/s SFP+

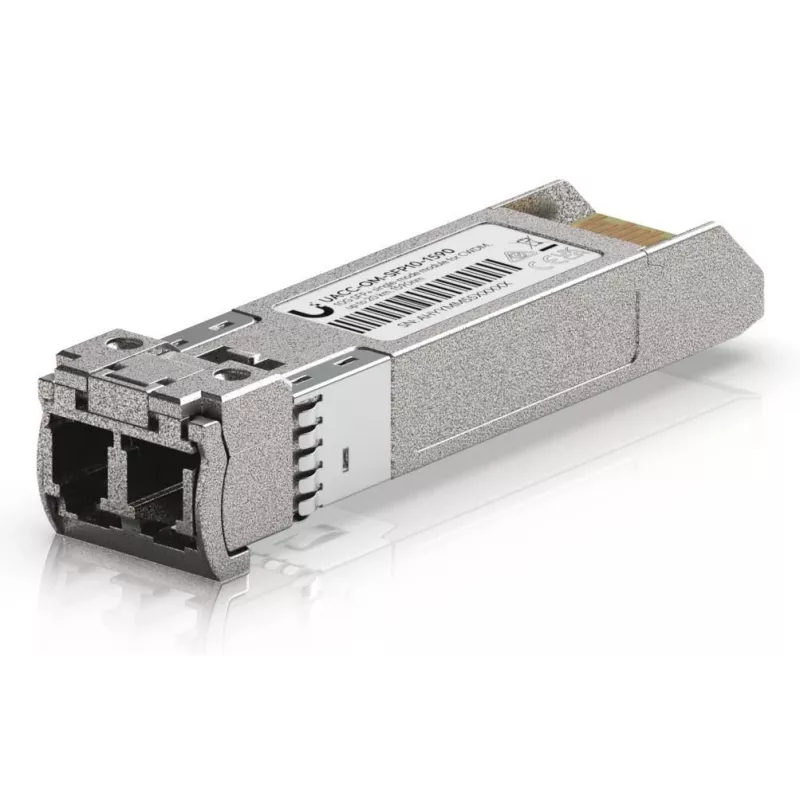

The Ubiquiti UACC-OM-SFP10-1590 is an SFP+ CWDM optical transceiver module designed for 10G links over single-mode fiber. It operates at a central wavelength of 1590 nm, supports duplex LC UPC connector type and is intended for point-to-point network connections up to 20 km. The module supports a maximum data transfer rate of 11,300 Mbit/s and is supplied as a single unit in grey/khaki housing.

Advantages

This SFP+ transceiver provides CWDM wavelength-specific operation at 1590 nm for dense wavelength environments, a standard duplex LC UPC interface for broad compatibility with single-mode fiber equipment, and support for 10G-class data rates up to 20 km. Its compact SFP+ form factor enables straightforward hot-pluggable installation into compatible network devices.

Suitable for

• 10 Gigabit Ethernet links over single-mode fiber
• Metro or campus point-to-point connections up to 20 km
• CWDM systems requiring a 1590 nm channel
• Switches, routers or media converters with SFP+ ports

Key specifications

• Interface type: SFP+
• Wavelength: 1590 nm (CWDM)
• Maximum data transfer rate: 11,300 Mbit/s
• Maximum reach: up to 20 km over single-mode fiber
• Connector: Duplex LC UPC
• Form factor: SFP+

How to use

Insert the SFP+ transceiver into a compatible SFP+ port on a switch, router or media converter while the host device is powered according to the equipment vendor’s instructions. Connect single-mode duplex fiber with LC UPC connectors to the module, ensuring correct TX/RX orientation. Configure the network device for 10G operation and CWDM wavelength channel management if required by your network design.

Recommendations

Verify device compatibility with Ubiquiti or third‑party equipment and confirm the 1590 nm CWDM channel matches your CWDM mux/demux plan. Use quality single‑mode fiber and clean LC UPC connectors before installation. For distances approaching 20 km, test link performance and consider link budget margins.
