Eaton ZSD-M17B0013 1-pole eHZ meracie miesto 63A 113068

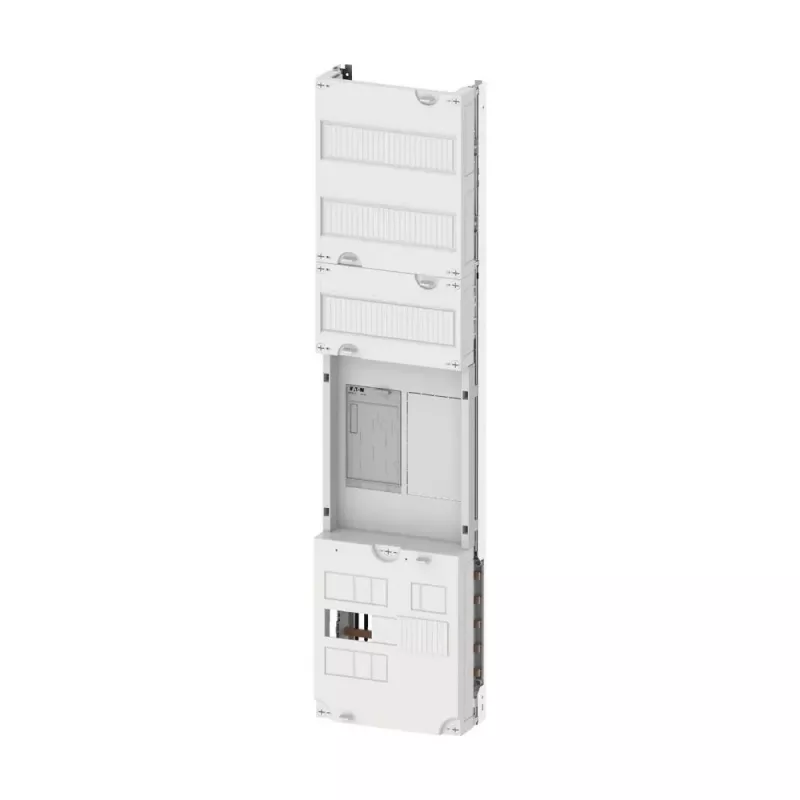

The Eaton ZSD-M17B0013 is a single-field meter panel engineered specifically for electronic household meters (eHZ). It combines a 7-pole main circuit, a 5-pole busbar system, and dedicated spaces for BKE-I and APZ modules, making it a practical choice for residential and commercial installations where space and compliance are critical.

Highlights

• 1 eHZ meter position, 1 field
• Rated current 63 A, 230/400 V AC
• 7-pole main circuit, 5-pole busbar
• Includes 1x BKE-I and 1x APZ device spaces
• Screw terminals up to 25 mm² (main), 16 mm² (N/PE)

In daily use

The panel is built on a galvanized steel base plate with a plastic carrier plate, ensuring durability in meter cabinets or distribution boards. Its 3-phase AC design and IP2XC protection when installed make it suitable for standard indoor electrical infrastructure.

Full specifications

• Number of meter positions: 1 (eHZ)
• Number of fields: 1
• Number of poles (main circuit): 7-pole
• Meter type compatibility: Electronic Household Meter (eHZ)
• Additional device spaces: 1x BKE-I, 1x APZ
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Busbar system: 5-pole
• Connection type: Screw terminals
• Terminal cross-section (main): Up to 25 mm²
• Terminal cross-section (N/PE): Up to 16 mm²
• Mounting type: For meter cabinets / distribution boards
• Material: Plastic carrier plate, galvanized steel base plate
• Protection class (installed): IP2XC
• Standard compliance: DIN VDE 0603-1, DIN 43870-1
• Application: Residential, Commercial
• Number of phases: 3-phase
• Type of current: AC

Final note

With its dedicated eHZ compatibility and modular device spaces, the ZSD-M17B0013 streamlines meter installation without compromising on electrical safety or flexibility.
