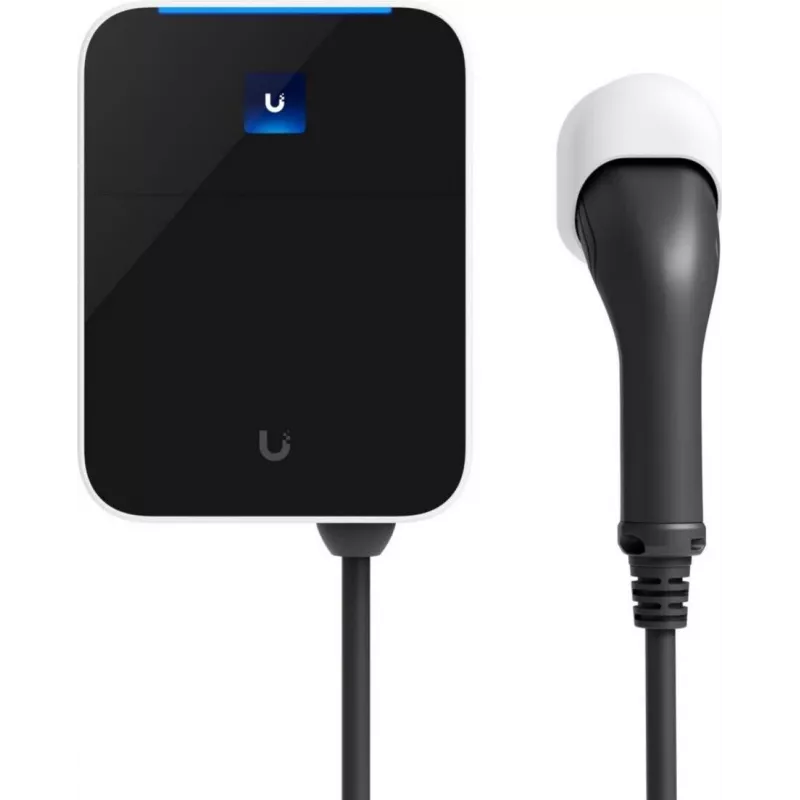

Ubiquiti UC-EV-Station-Lite EV nabíjačka 7.4kW Type 2 Tethered 5m biela/čierna

The Ubiquiti UC-EV-Station-Lite is a compact and intelligent electric vehicle charging station designed for residential and light commercial use. With a single-phase output of 7.4 kW and a tethered Type 2 connector, it provides reliable and efficient charging for all compatible EVs. The integrated 1.7-inch color LCD display and Wi-Fi/Bluetooth connectivity allow for easy monitoring and control via the UniFi Connect app.

Advantages

Seamlessly integrates into the UniFi ecosystem for centralized management. The weather-resistant IP55 and impact-resistant IK08 ratings ensure durability in outdoor installations. OCPP 1.6J compliance enables interoperability with various charging networks.

Suitable for

• Home garages and driveways
• Workplace parking lots
• Small commercial facilities
• UniFi Connect managed environments

Key specifications

• Charging Power: 7.4 kW (Single-Phase)
• Connector: Type 2 (IEC 62196-2) with 5m tethered cable
• Input Voltage: 230V AC, 32A max
• Connectivity: Wi-Fi 2.4/5 GHz, Bluetooth, Ethernet
• Display: 1.7" (4.32 cm) color LCD
• Enclosure: Polycarbonate (PC), wall-mounted
• IP Rating: IP55, IK08
• Operating Temperature: -30 to 50°C
• Access Control: RFID, UniFi Connect App
• Communication: OCPP 1.6J
• Energy Metering: Integrated
• Color: White with black accents

Recommendations

For optimal performance, pair with a dedicated 40A circuit breaker and ensure proper grounding. Use the UniFi Connect app for firmware updates and charging schedules.
