Upravovaný switch PLANET IP30 16-portový L2/L4 Gigabit Ethernet PoE

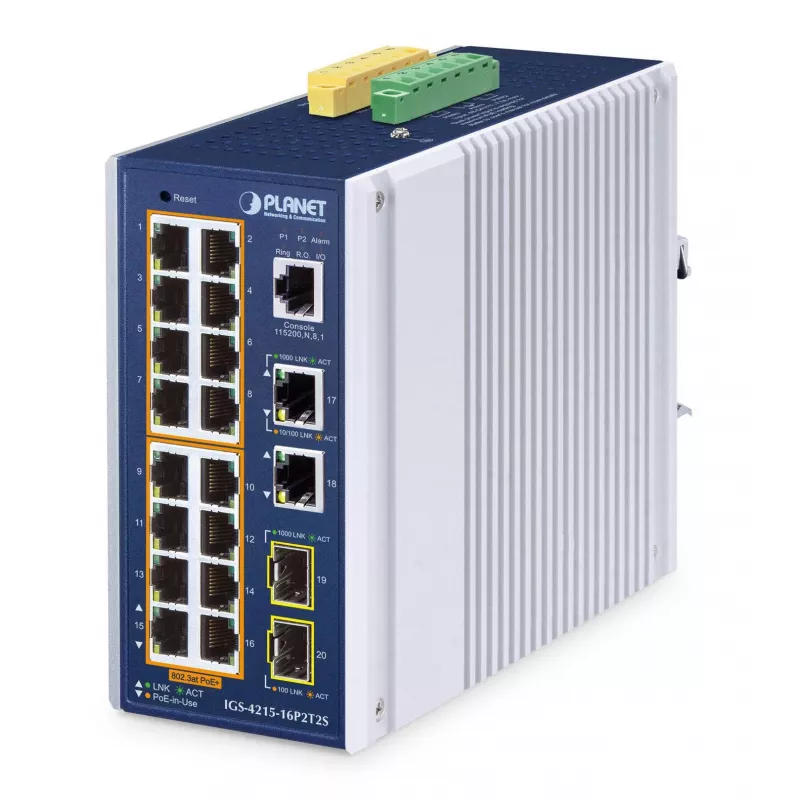

The PLANET IGS-4215-16P2T2S is an industrial-grade, DIN-rail managed Gigabit PoE+ switch with 16 Gigabit RJ-45 PoE+ ports, 2 additional Gigabit copper ports and 2 SFP fiber slots. Built for hardened environments, it provides IPv4/IPv6 dual-stack management, L2/L4 switching features and a total PoE power budget of up to 320 W in an IP30 metal housing rated to operate from -40 to 75 °C. The switch supports 802.3at PoE+ and includes extended-distance mode to supply up to 20 W at distances up to 250 m over UTP, plus SFP-based uplink options for long-distance connections.

Advantages

The IGS-4215-16P2T2S combines industrial durability and advanced network features: robust cybersecurity (SSHv2, TLS1.2, SNMPv3, RADIUS/TACACS+), redundant ring recovery (G.8032 ERPS, MSTP), extensive Layer 2/Layer 4 management (VLAN, QoS, ACLs, link aggregation) and specialized PoE management tools (PD alive check, scheduled power recycle, PoE schedule, usage monitoring and PoE extension). It offers ESD and surge protection and supports SFP-DDM for fiber diagnostics.

Suitable for

• Industrial surveillance systems with multiple PoE cameras
• Outdoor and hardened wireless access point deployments
• VoIP and converged voice/video/data networks in factories or transportation
• Long-distance uplink to monitoring centers or NVR/NAS via SFP

Key specifications

• Model: PLANET IGS-4215-16P2T2S (MPN)
• Ports: 16 x 10/100/1000BASE-T PoE+ ports, 2 x Gigabit copper ports, 2 x 100/1000BASE-X SFP slots
• PoE: IEEE 802.3at PoE+, total power budget up to 320 W; PoE extension mode: 20 W up to 250 m
• Switching: L2/L4 managed, 40 Gbit/s switching capacity
• Management: Web GUI, CLI (console/Telnet), SNMP (v1/2/3), SSHv2, TLS1.2
• Security: DHCP Snooping, IP Source Guard, Dynamic ARP Inspection, 802.1X, ACL, RADIUS/TACACS+
• Redundancy: ITU-T G.8032 ERPS, 802.1s MSTP
• Environment: IP30 metal housing, operating temperature -40 to 75 °C
• Protection: ESD ±6 kV contact / ±8 kV air, surge immunity ±4 kV
• Weight & colour: approx. 1.404 kg; aluminium/blue

How to use

Mount the switch on a DIN rail or appropriate surface and connect power and uplink cables according to site design. Use the web-based interface, CLI or SNMP management system to configure IPv4/IPv6 addressing, VLANs, QoS, PoE schedules and security policies. For PoE devices, enable PD alive check and scheduled power recycling where needed; configure PoE schedule to disable ports outside business hours. Use the SFP slots with compatible fiber transceivers for long-distance uplinks and monitor SFP-DDM parameters from the management interface.

Recommendations

Place the switch in a ventilated but dust-protected location within its -40 to 75 °C range, ensure proper grounding for surge protection, and keep firmware updated. Use PoE schedule and PD alive check to reduce device downtime and energy consumption; use extend mode only for devices that support reduced 10 Mbps operation at extended distances.
