Upravovaný switch PLANET IP30 priemyselný L2+/L4 8-portový Gigabit Ethernet

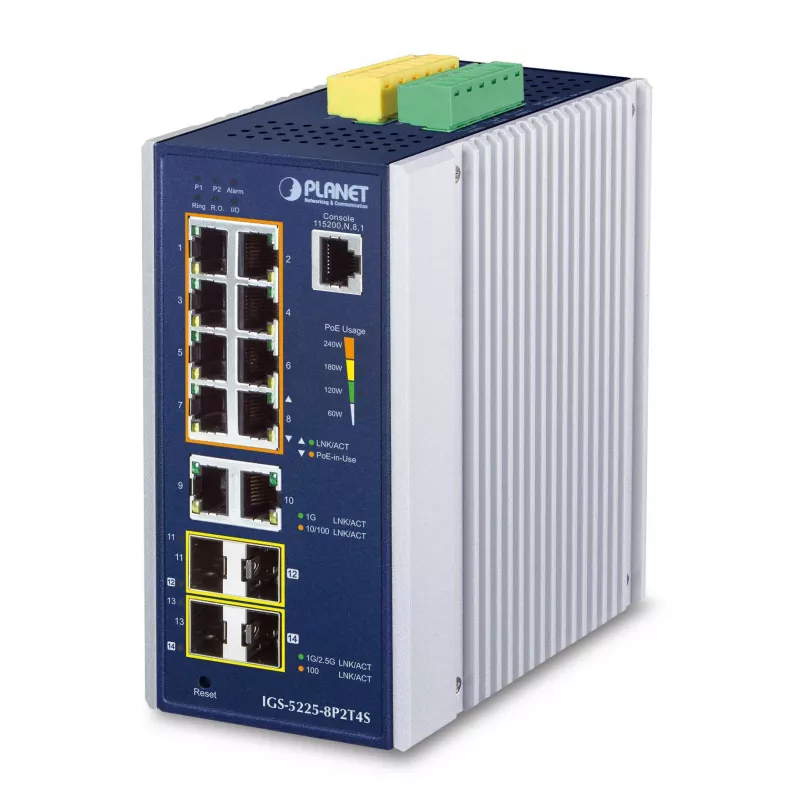

PLANET IGS-5225-8P2T4S is an IP30 rugged metal industrial managed PoE+ switch with 8 10/100/1000BASE-T 802.3at PoE+ ports (up to 36 W per port), two 10/100/1000BASE-T ports, two 100/1000BASE-X SFP ports and two 100/1000/2500BASE-X SFP ports. Designed for harsh environments, it supports IPv4/IPv6 management, L2/L4 switching functions, Layer 3 static routing, ITU‑G.8032 ERPS ring protection and PLANET intelligent PoE features. The switch operates reliably from -40 to 75 °C and provides a total PoE budget of 240 W.

Advantages

The IGS-5225-8P2T4S combines high PoE power delivery, industrial-grade construction and resilient network protection in a single unit. It offers fast ring recovery (ITU‑T G.8032 ERPS) and redundant power input for increased uptime, advanced Layer 2–4 security and QoS features, SFP flexibility for fiber extension, and management via Web, CLI and SNMPv3. Additional functions include ONVIF device discovery, digital input/output for external alarms, scheduled PoE control and automated PoE port recycling.

Suitable for

• Outdoor and indoor IP surveillance systems with PoE cameras and PTZ devices
• Wireless network deployments with multi‑radio access points
• Industrial automation and factory floor networking (SCADA/Modbus TCP integration)
• Critical networks requiring fast ring recovery and redundant power
• Enterprise or SMB edge aggregation requiring fiber extension

Key specifications

• Model: PLANET IGS-5225-8P2T4S
• Ports: 8 x Gigabit PoE+ (802.3at, up to 36 W/port), 2 x Gigabit RJ-45, 2 x 100/1000BASE-X SFP, 2 x 100/1000/2500BASE-X SFP
• Total PoE budget: 240 W
• Switching capacity: 34 Gbit/s
• MAC address table: 8,000 entries
• Operating temperature: -40 to 75 °C
• IP rating / enclosure: IP30, rugged metal case; wall or DIN/wide industrial mounting (refer to manufacturer)
• Power input: DC 48–56 V (redundant input supported)
• Standards: IEEE 802.3at/af, IEEE 802.1Q, 802.1x, 802.1s/MSTP, IEEE 1588 etc.
• Weight & colour: approx. 1.1 kg; aluminium/blue

How to use

Install the switch in a suitable industrial location using the recommended wall or DIN mounting. Connect DC power (48–56 V) to the redundant power inputs, connect uplink and SFP transceivers as required, and attach PoE devices to the PoE+ RJ‑45 ports. Access the management interface through the web GUI, CLI (console/Telnet) or SNMPv3 for configuration of VLANs, QoS, ERPS ring topology, PoE scheduling and ONVIF device discovery. Use SFP-DDM diagnostics to monitor fiber transceiver parameters and set PoE schedules or ping‑based alive checks to automate device rebooting when needed.

Recommendations

For reliable operation, use appropriate industrial-grade SFP transceivers matched to required distance and speed, keep firmware updated, configure ERPS or MSTP for ring redundancy, enable SNMPv3/SSHv2/TLSv1.2 for secure management, and apply PoE schedule and power recycling to reduce device crashes and save energy.
