UPS DIGITUS DN-170063-B Line-Interactive 600 VA / 360 W, AVR, LCD, 2x Type-F výstupy, 7-Ah batéria

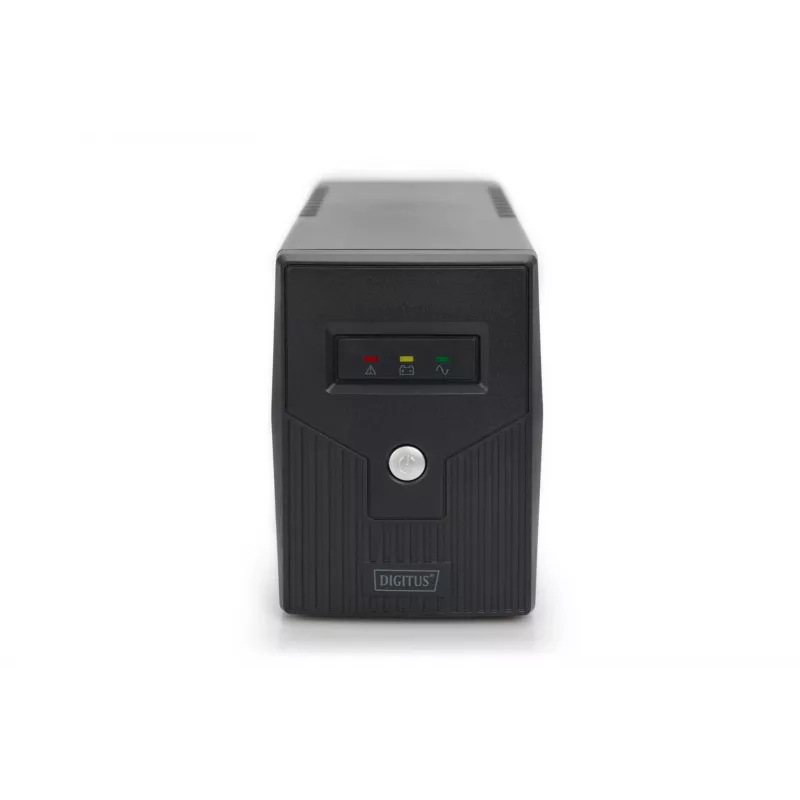

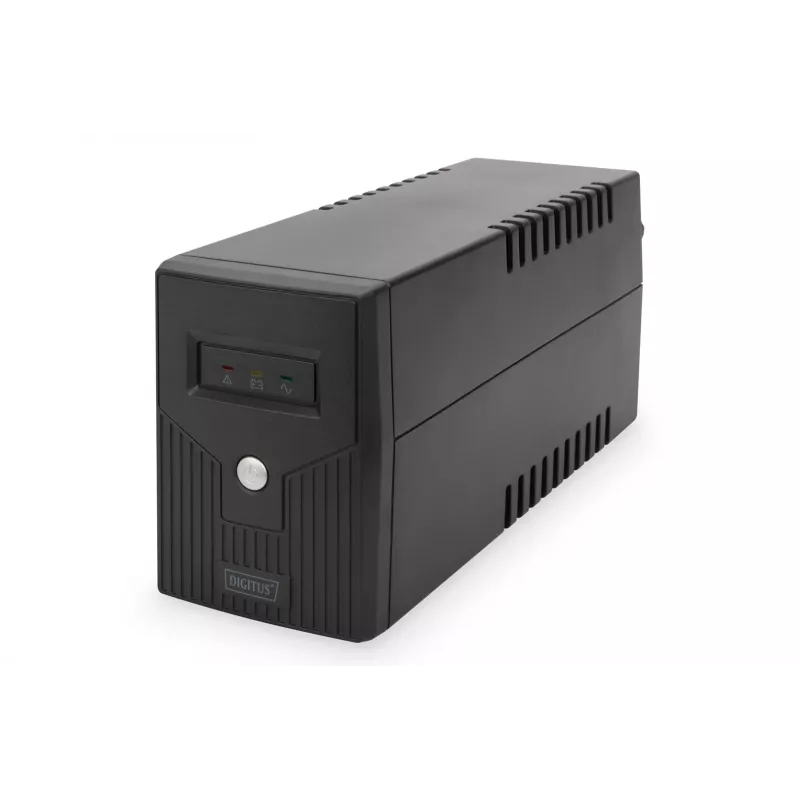

Line-interactive UPS DIGITUS DN-170063-B provides 600 VA (360 W) backup power for PCs and network devices. It offers automatic voltage regulation (AVR) and a pseudo-sine output waveform, an LCD status display and audible alarms for battery, fault and overload conditions. The unit includes two Type F AC outlets, a 12 V / 7 Ah internal battery with cold-start capability and a typical recharge time of 6 hours to 90%. Operating range covers 162–290 V input and 0–40 °C ambient temperature.

Advantages

The UPS combines AVR stabilization and line-interactive topology to maintain supply during voltage fluctuations with a 2 ms transfer time to battery. Its LCD and LED indicators provide clear status information while audible alarms signal battery, fault and overload conditions. Compact tower form factor with two grounded Type F outlets fits small office and home setups and a 7 Ah battery supports short runtime during outages.

Suitable for

• Desktop PCs and workstations
• Network equipment such as routers and modems
• Home office and small office setups
• Point-of-sale terminals and small servers with low power draw

Key specifications

• Output power: 360 W (0.6 kVA)
• Topology: Line-Interactive with AVR
• Waveform: Pseudo sine
• Input voltage range: 162–290 V
• Nominal input/output voltage: 230 V
• Frequency: 50 Hz
• Transfer time: 2 ms
• Battery: 12 V, 7 Ah (1 battery); cold start supported; recharge to 90% in ~6 h
• Noise level: 40 dB
• Output voltage regulation: ±10%

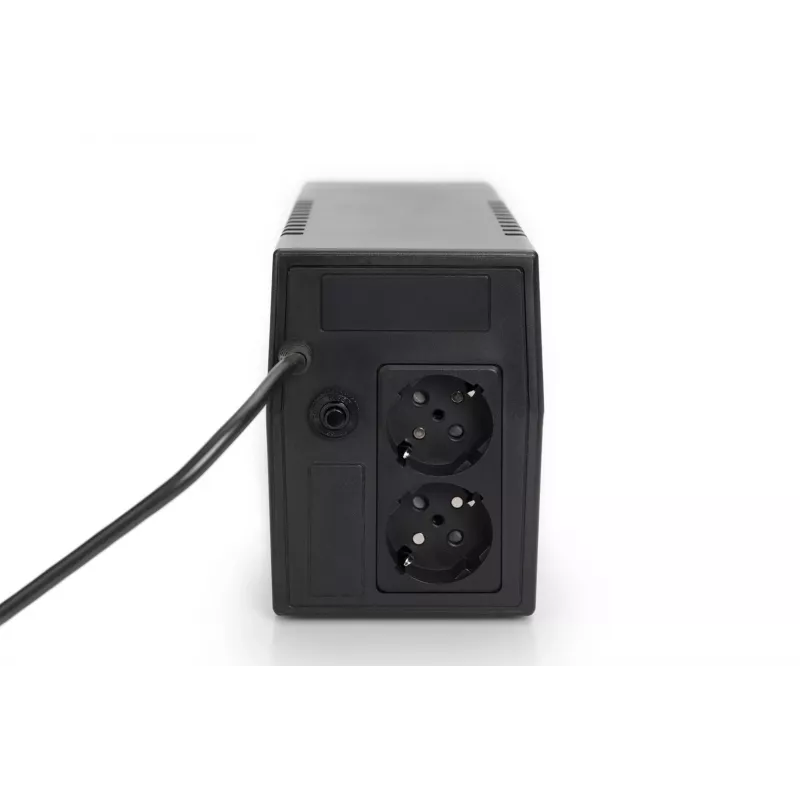

• AC outlets: 2 (Type F)
• Form factor and colour: Tower, black
• Display: LCD with LED indicators
• Operating conditions: 0–40 °C, 0–95% relative humidity
• Dimensions (W×D×H): 101 × 298 × 142 mm
• Weight: 4.35 kg

How to use

Place the UPS on a stable, level surface with adequate ventilation and connect the mains power via the integrated Type F plug. Plug protected equipment into the two Type F outlets. The unit charges its internal battery when mains power is present; use the LCD and LED indicators to monitor status. In case of mains interruption the UPS will automatically switch to battery power within 2 ms; audible alarms indicate battery, fault or overload conditions. Cold-start allows powering the unit from battery when mains are absent.

Recommendations

Do not open or disassemble the unit housing due to risk of electric shock. Ensure regular battery recharge cycles and periodic testing under load to verify runtime; keep the UPS in a dry, dust-free environment within the specified temperature range.
