USB Hub EXSYS EX-1504HMS

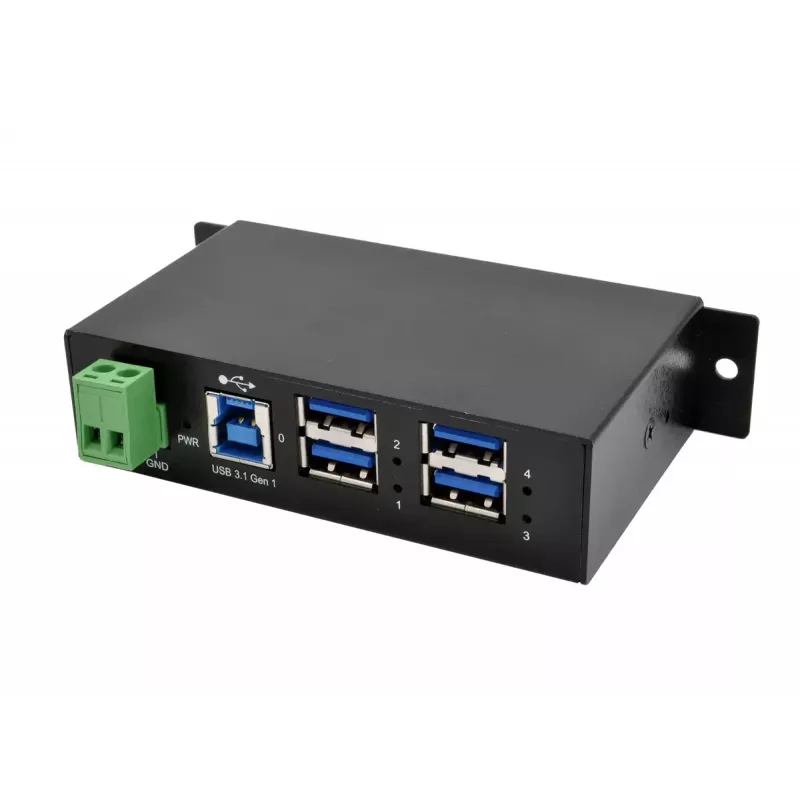

The EXSYS EX-1504HMS is a USB 3.2 Gen1 hub with a Type-B host interface and four Type-A downstream ports, providing data transfer rates up to 5000 Mbit/s. Housed in a durable metal enclosure and compact in size (114.6 × 67.4 × 26 mm), the hub is compatible with USB 3.1/3.0, USB 2.0 and USB 1.1 devices and supplies up to 2.4 A for connected devices.

Advantages

The EX-1504HMS offers four high-speed USB 3.2 Gen1 ports for instant device expansion, backward compatibility with older USB standards, and support for USB Battery Charging specification v1.2 including SDP, CDP and DCP modes. Built-in vendor-specific charging profiles such as Apple 2.4A and Samsung are supported. The metal housing increases durability for industrial use and the compact footprint simplifies integration into constrained setups.

Suitable for

• Industrial systems requiring multiple high-speed USB ports
• Workstations and embedded platforms with USB Type-B host ports
• Charging and connecting mobile devices that use BC1.2 or vendor-specific charging
• Environments where a robust metal-housed hub is preferred

Key specifications

• Host interface: USB 3.2 Gen1 (3.1/3.0 Gen1) Type-B
• Hub interfaces: 4 × USB 3.2 Gen1 Type-A downstream ports
• Data rate: up to 5000 Mbit/s (USB 3.2 Gen1)
• Power: supports USB Battery Charging v1.2 (SDP, CDP, DCP), vendor-specific charging (e.g., Apple 2.4A, Samsung); 2.4 A supply
• Compatibility: USB 3.1/3.0, USB 2.0, USB 1.1 devices
• Dimensions: 114.6 × 67.4 × 26 mm
• Weight: 0.45 kg
• Enclosure: metal; colour: black

How to use

Connect the Type-B host connector of the EX-1504HMS to your computer or host device and attach peripherals to the Type-A downstream ports. If external power is required for charging, connect the hub’s power supply according to the system setup. Install the provided management utilities on the target operating system to control per-port bus power, perform hub resets, and store or restore power states from the hub’s flash memory. Utilities are available for Windows (GUI and command-line) and various Linux platforms (x86 and ARM) and can be integrated into applications written in C#, C++, VB, Python or PHP.

Recommendations

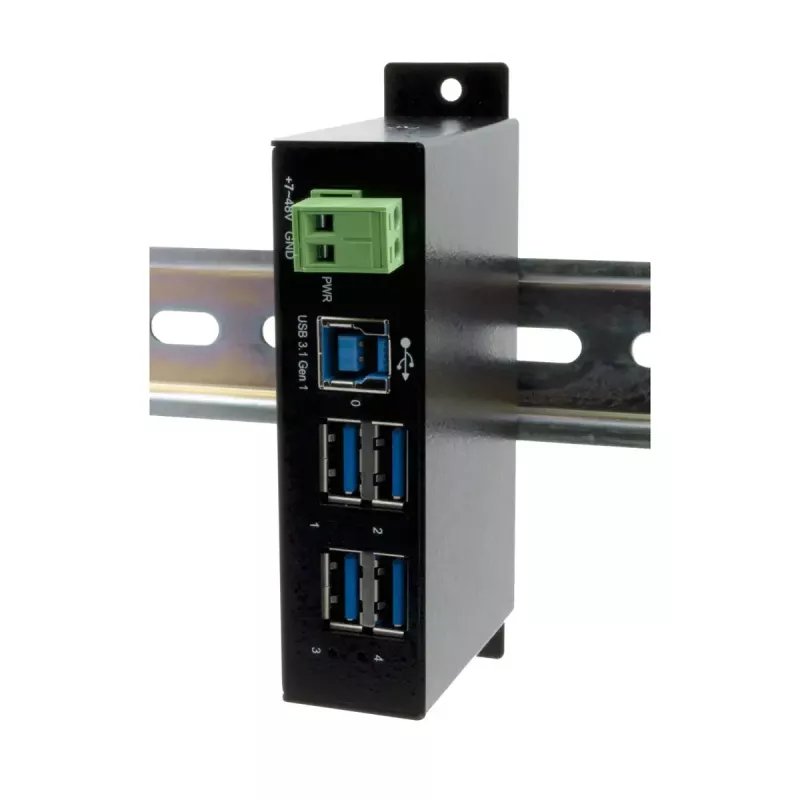

Use the supplied management software to set per-port power behavior and to save the desired initial state to flash memory before deployment; for industrial installations, mount the metal housing on a stable surface and ensure proper grounding and cable strain relief.
