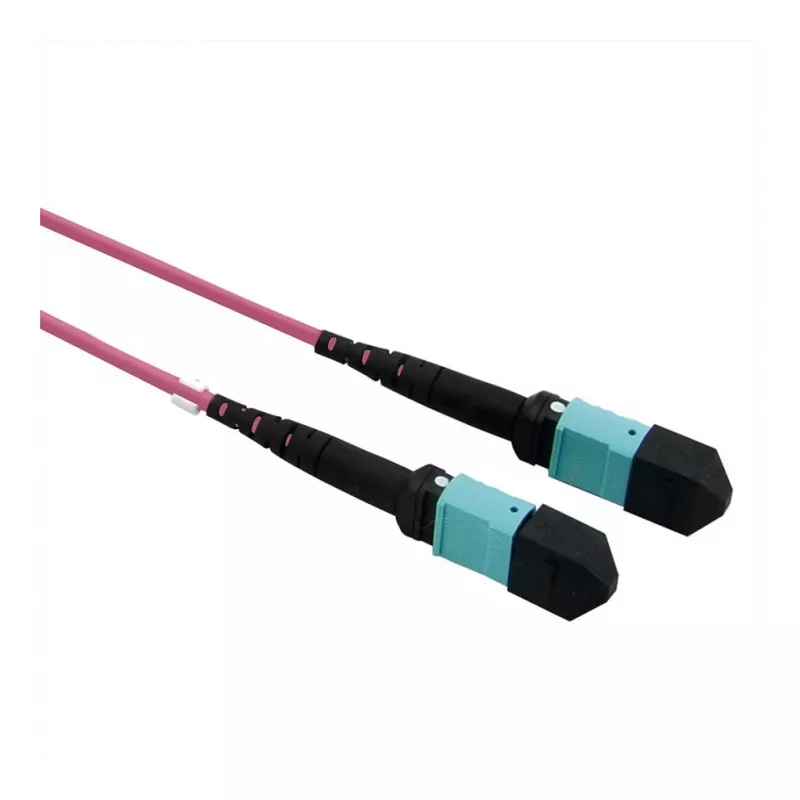

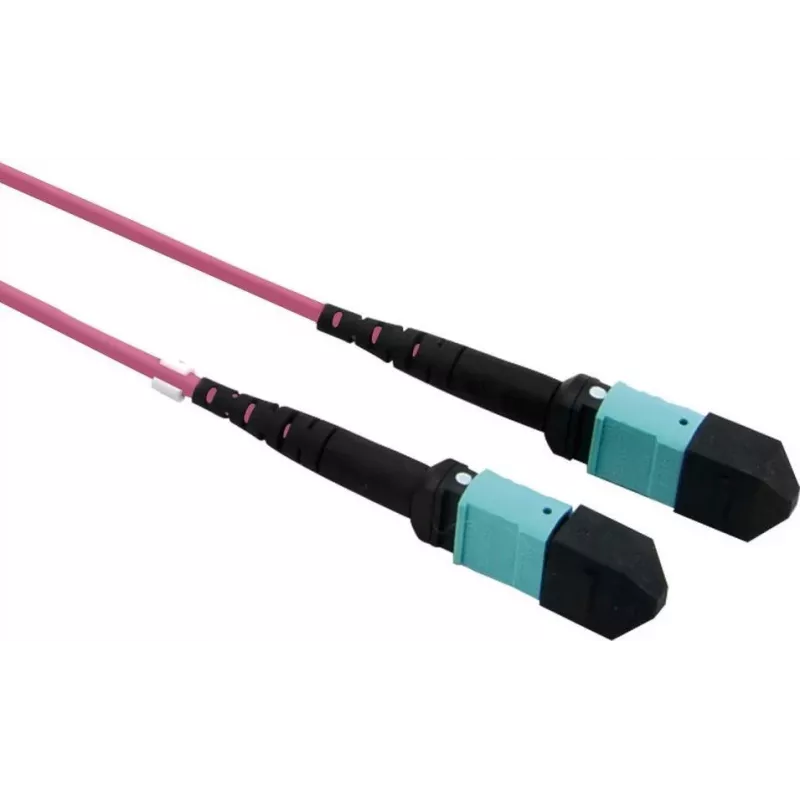

VALUE MPO trunk kábel 50/125µm OM4, MPO/MPO, typ A, fialový, 15 m

MPO trunk cable with 12 fibers, OM4 multimode 50/125µm, MPO female to MPO female, Type A polarity, violet jacket, 15 m length. Ideal for high-density data center links, supporting 40G and 100G parallel optics with low insertion loss.

Advantages

Precision MPO connectors ensure stable optical performance. OM4 fiber supports 10G up to 550 m and 40G/100G up to 150 m, enabling efficient cable aggregation. Type A straight-through polarity simplifies deployment in parallel optic systems. Violet jacket allows quick identification of OM4 grade. Push-pull tabs (if present) facilitate high-density patching. RoHS compliant.

Suitable for

• Data center backbone and high-density patching
• 40GBASE-SR4 and 100GBASE-SR4 parallel optics
• Telecom rooms and enterprise networks
• Storage area networks (SANs)

Key specifications

• Cable type: MPO trunk cable, 12 fibers
• Fiber type: Multimode OM4, 50/125 µm
• Connectors: MPO female to MPO female
• Polarity: Type A (straight-through)
• Length: 15 m
• Jacket color: Violet
• Insertion loss: ≤ 0.35 dB per mated pair
• Return loss: ≥ 20 dB per mated pair
• Standards: IEC 61754-7, TIA/EIA-568-C.3

Recommendations

For reliable high-speed connectivity in dense fiber environments, this MPO trunk cable offers excellent performance and easy identification with its violet OM4 jacket.
