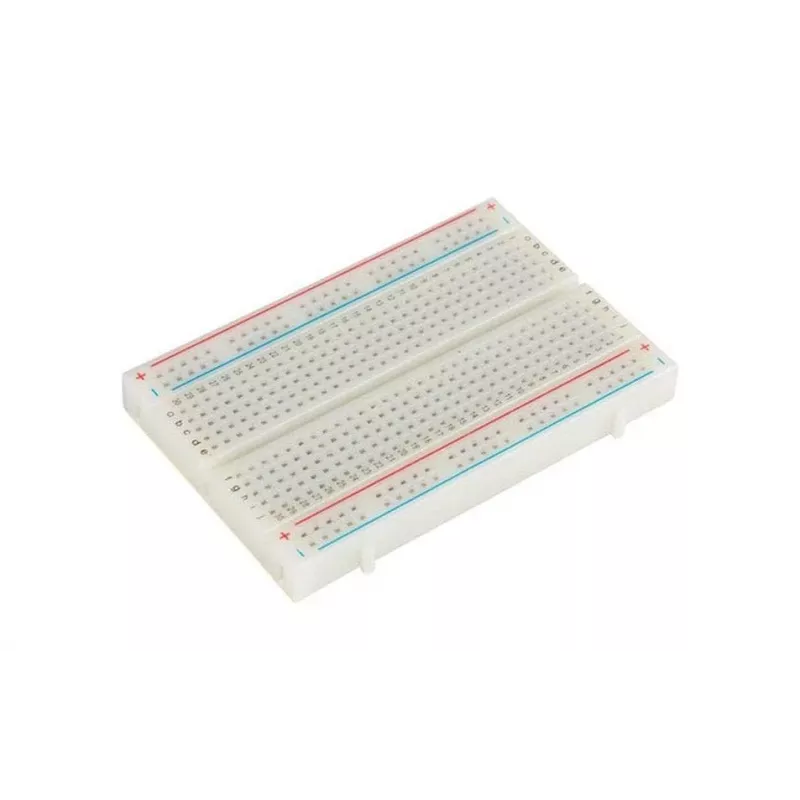

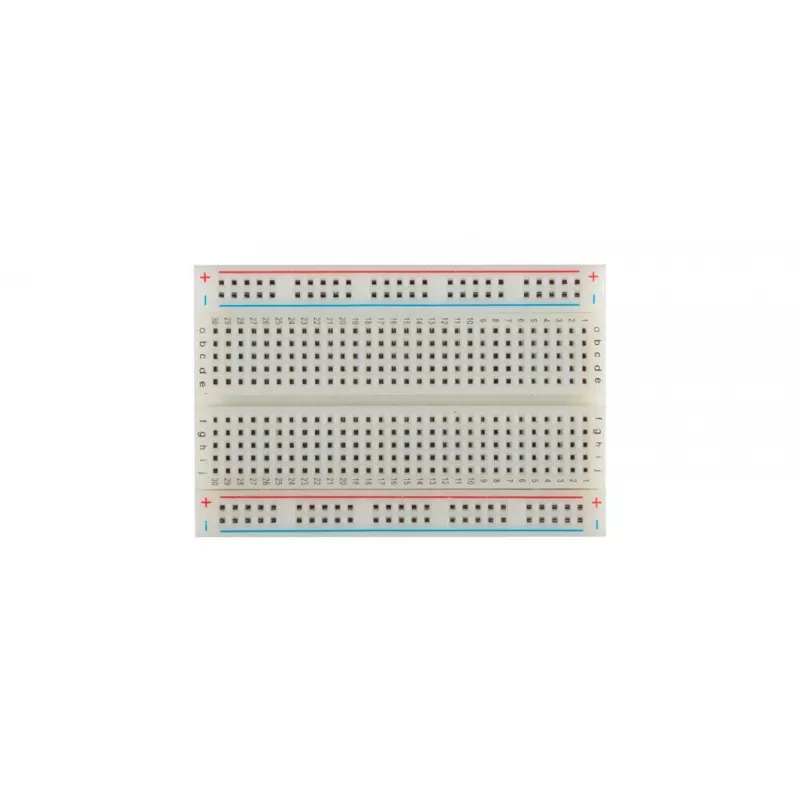

Velleman VTBB3 nepájivé kontaktné pole 400 kontaktných bodov biele

The Velleman VTBB3 is a 400-tie-point solderless breadboard with a self-adhesive backing and interlocking edges, making it easy to build and expand prototype circuits without soldering.

Highlights

• 400 total tie points: 300 in the terminal strip and 100 in two distribution strips
• Nickel-plated phosphor bronze contacts accept 20–29 AWG solid or stranded wire
• White ABS body with standard 2.54 mm (0.1 inch) pitch
• Self-adhesive backing for secure mounting on a project base
• Interlocking design allows multiple boards to be snapped together

In daily use

Insert DIP ICs, resistors, capacitors, and jumper wires directly into the spring contacts. The two power rails run the full length of the board, simplifying power distribution. For larger projects, connect multiple VTBB3 boards side by side using the interlocking tabs.

Full specifications

• Total tie points: 400
• Terminal strip tie points: 300 (30 rows × 10 columns)
• Distribution strip tie points: 100 (2 × 50)
• Contact material: Nickel-plated phosphor bronze
• Body material: ABS plastic
• Wire compatibility: 20–29 AWG (0.3–0.8 mm)
• Pin pitch: 2.54 mm (0.1 inch)
• Color: White
• Adhesive backing: Yes
• Interlocking capability: Yes
• Maximum voltage: 30 V
• Maximum current: 1 A
• Operating temperature: -20 °C to +80 °C

Final note

A reusable prototyping surface that holds components firmly and releases them cleanly, ideal for education, testing, and rapid development.
