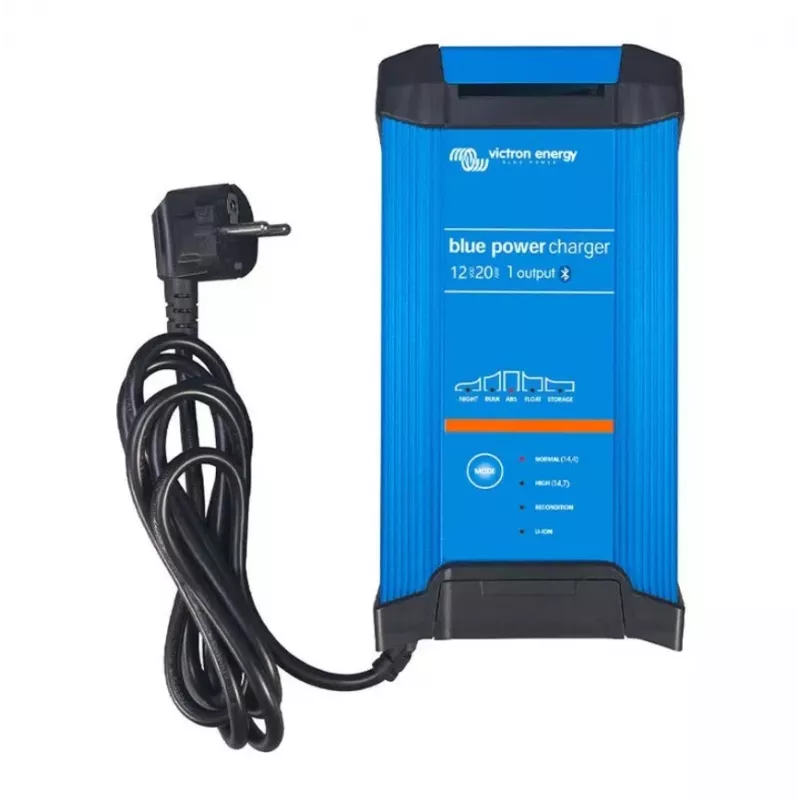

Victron Energy nabíjačka batérií Blue Smart IP22 12V 20A (model BPC122042002)

The Victron Energy Blue Smart IP22 12V 20A battery charger is a compact mains charger engineered for reliable charging and maintenance of 12V lead‑acid and compatible battery banks. Designed to deliver a regulated 20A output, the unit applies multi‑stage charging algorithms that include bulk, absorption and float phases to restore capacity and minimize sulfation. With IP22 protection for indoor and sheltered installations, the charger is suitable where a compact, efficient 12V/20A solution is required for marine, automotive, caravan and stationary battery systems.

Advantages

This Blue Smart charger provides precise multi‑stage charging to extend battery life and improve performance. Its compact form factor and IP22-rated enclosure allow flexible mounting in cabins, workshops or service compartments. The charger includes overcurrent protection, temperature compensation and monitoring features that reduce the risk of overcharging while allowing continuous float maintenance. Energy-efficient operation reduces standby losses, and the design supports long periods of connected maintenance without manual intervention.

Suitable for

• Charging and maintaining 12V lead‑acid, AGM and gel batteries in boats and yachts
• Automotive and light commercial vehicle battery charging and upkeep
• Caravan, camper and motorhome battery systems during storage and travel
• Small stationary and backup battery installations in workshops or off‑grid cabins

Key specifications

• Output voltage: 12 V DC nominal
• Maximum charging current: 20 A
• Charging method: regulated multi‑stage (bulk, absorption, float)
• Battery types supported: lead‑acid variants including flooded, AGM and gel
• IP rating: IP22 for protection against solid objects and vertical dripping water (indoor/sheltered use)
• Casing: compact, wall‑mountable enclosure suitable for confined spaces
• Protection features: overcurrent and temperature compensation for safer charging
• Efficiency: energy‑efficient design with low standby power consumption

How to use

Install the charger in a dry, ventilated location protected from direct water exposure and excessive heat. Connect the charger’s DC output to the battery following correct polarity, ensuring battery connections are clean and secure. Plug the charger into an AC mains outlet rated for the unit and switch it on; the charger will automatically run its multi‑stage charging program. Monitor charging status via the unit’s indicators; once the float phase is reached the charger can remain connected to maintain the battery without overcharging.

Recommendations

For best results, check battery electrolyte levels where applicable and ensure good electrical connections prior to charging. Use the charger indoors or in sheltered locations consistent with the IP22 rating. When charging batteries in marine or vehicle environments, secure the charger against movement and follow vehicle manufacturer guidance for shore power and battery maintenance.
