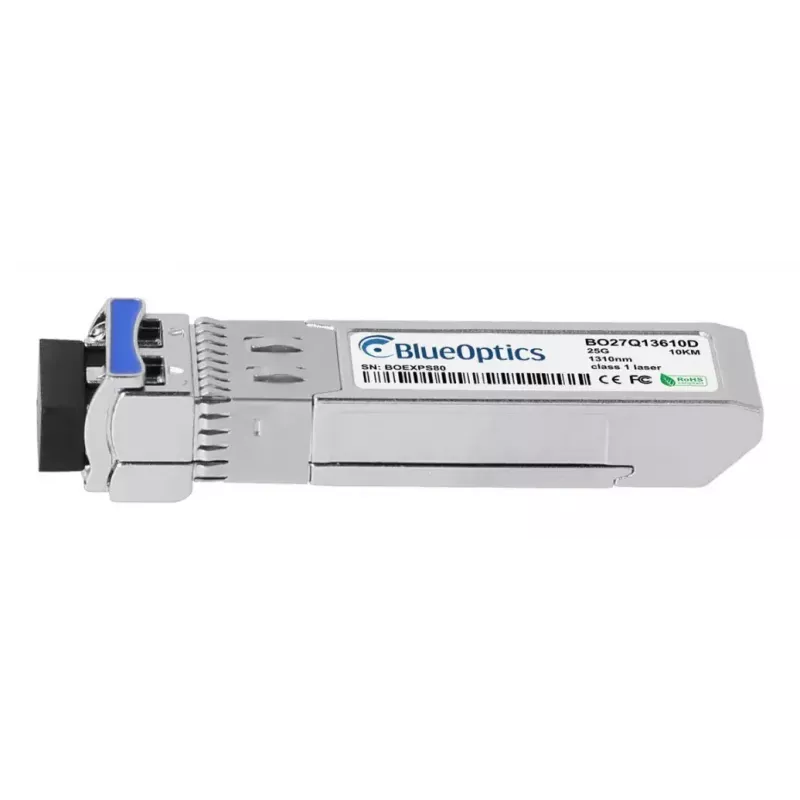

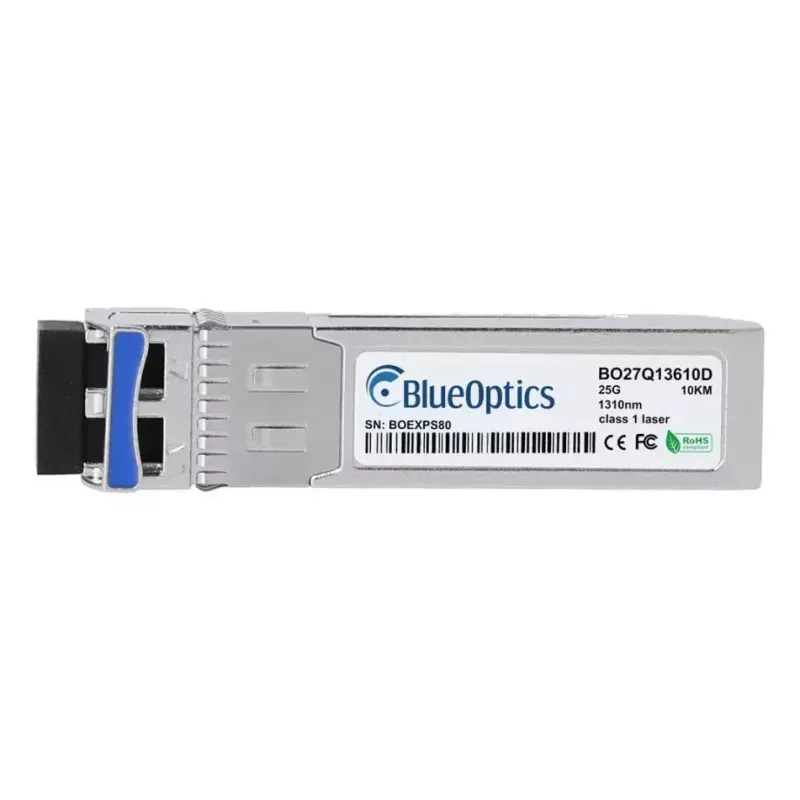

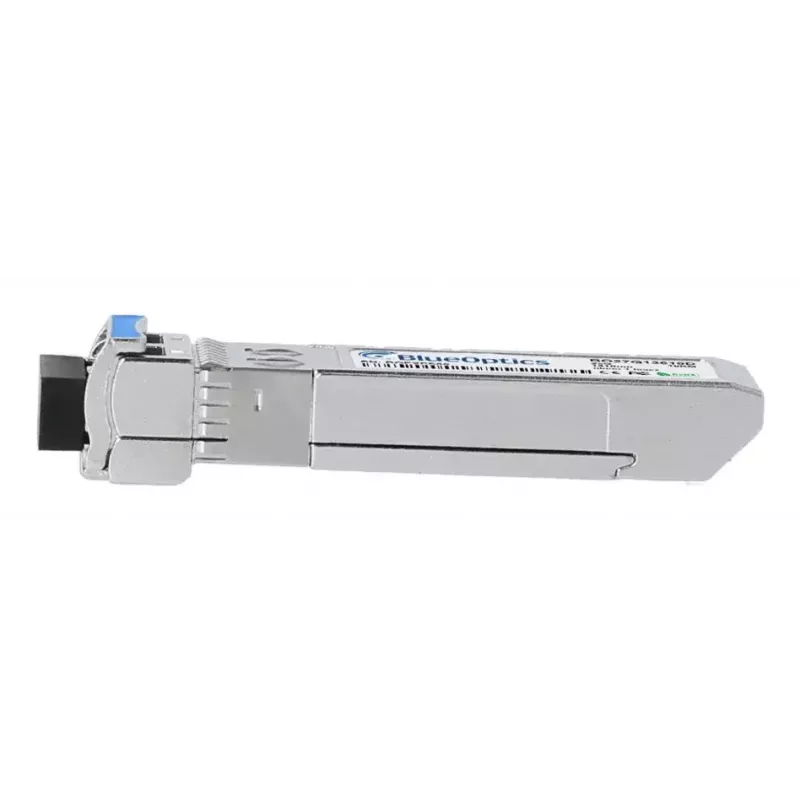

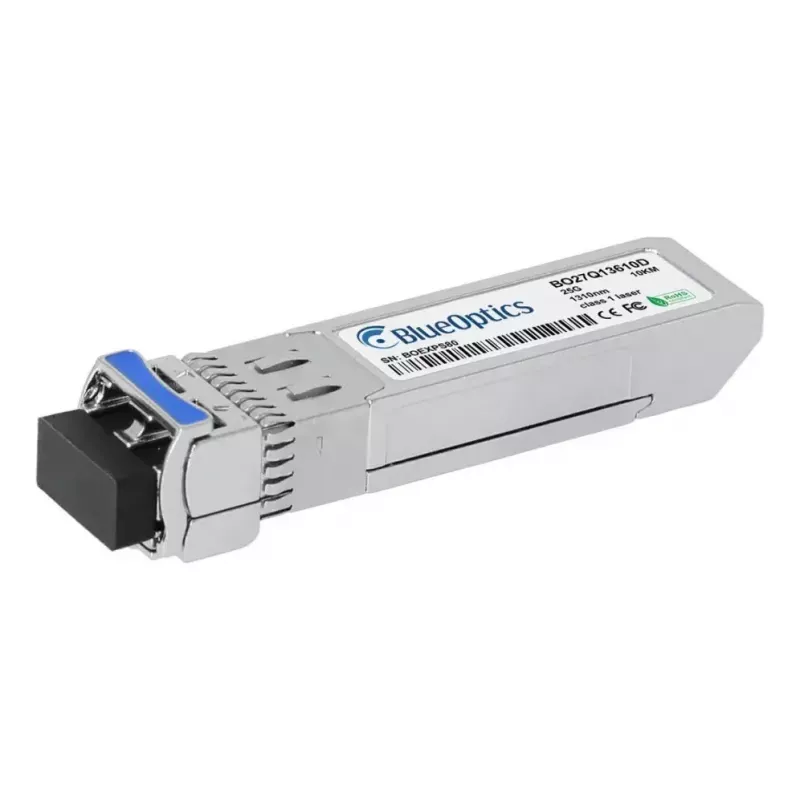

SFP28 transceiver modul BlueOptics RDH10275/2-BO 25000 Mbit/s 1310 nm

The BlueOptics RDH10275/2-BO is an SFP28 transceiver module designed for 25G fiber optic links. It supports a maximum data transfer rate of 25000 Mbit/s and operates at a wavelength of 1310 nm in an LC duplex connector format. The compact SFP28 form factor fits standard SFP28 ports on switches, routers and storage systems, while a specified MTBF of 3,000,000 hours indicates long-term reliability. The module complies with CE, FCC and RoHS standards and is finished in a silver housing suitable for dense deployment in data center environments.

Advantages

The module offers 25G performance in the well-known SFP28 form factor, enabling higher bandwidth without changing port density. Integrated transmit and receive functions at 1310 nm allow bidirectional optical links using LC duplex fiber. Compliance with industry safety and environmental standards ensures broadly accepted use in enterprise and carrier equipment. The device’s low weight and compact dimensions support easy installation and hot-swap replacement in rack-mounted systems.

Suitable for

Key specifications

How to use

Insert the SFP28 transceiver into a compatible SFP28 port until it clicks into place, ensuring the host device is powered per the manufacturer’s instructions. Connect LC duplex singlemode fiber patch cables to the transceiver’s LC ports, observing correct transmit/receive orientation. Configure the network device to recognize the 25G interface and, if available, enable digital diagnostics to monitor optical power, voltage and temperature. For safe hot-swap, follow the equipment vendor’s procedures to avoid signal interruptions.

Recommendations

Use singlemode LC duplex fiber patch cords matched to 1310 nm specifications and verify compatibility with the host hardware’s firmware. Keep fiber connectors clean and handle the module by its housing to avoid contamination. If monitoring is required, confirm that the host system supports DDM/DOM to access real-time diagnostic parameters.
