Video kábel adaptér DeLOCK 87695

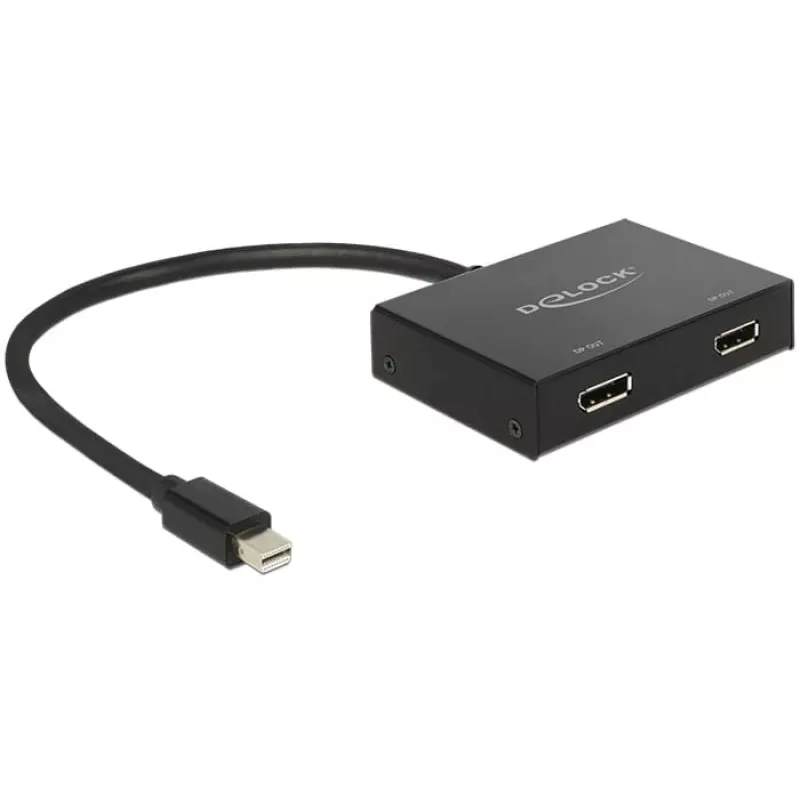

The DeLOCK 87695 video cable adapter receives a Mini DisplayPort signal from a PC or laptop and splits it to two DisplayPort outputs. With a 0.3 m cable and compact housing (67 × 100 × 23 mm), this black adapter enables one Mini DisplayPort connection to drive two DisplayPort monitors. Both outputs are dual-mode (DP++), allowing connection of HDMI or DVI displays using appropriate passive adapters.

Advantages

The adapter supports simultaneous output to two displays from a single Mini DisplayPort source. Its DP++ outputs provide flexibility to connect DisplayPort, HDMI or DVI monitors with suitable adapters. The short integrated cable and small enclosure make it convenient for desktop use and portable setups where space is limited.

Suitable for

• Extending a laptop or PC display to two external DisplayPort monitors
• Connecting a Mini DisplayPort-equipped device to HDMI or DVI screens using passive adapters
• Compact workstations and mobile setups requiring an extra video output

Key specifications

• Manufacturer: DELOCK
• Model: 87695
• Input: Mini DisplayPort (male)
• Outputs: 2 × DisplayPort (DP++)
• Cable length: 0.3 m
• Dimensions: 67 × 100 × 23 mm
• Colour: Black
• EAN: 4043619876952

How to use

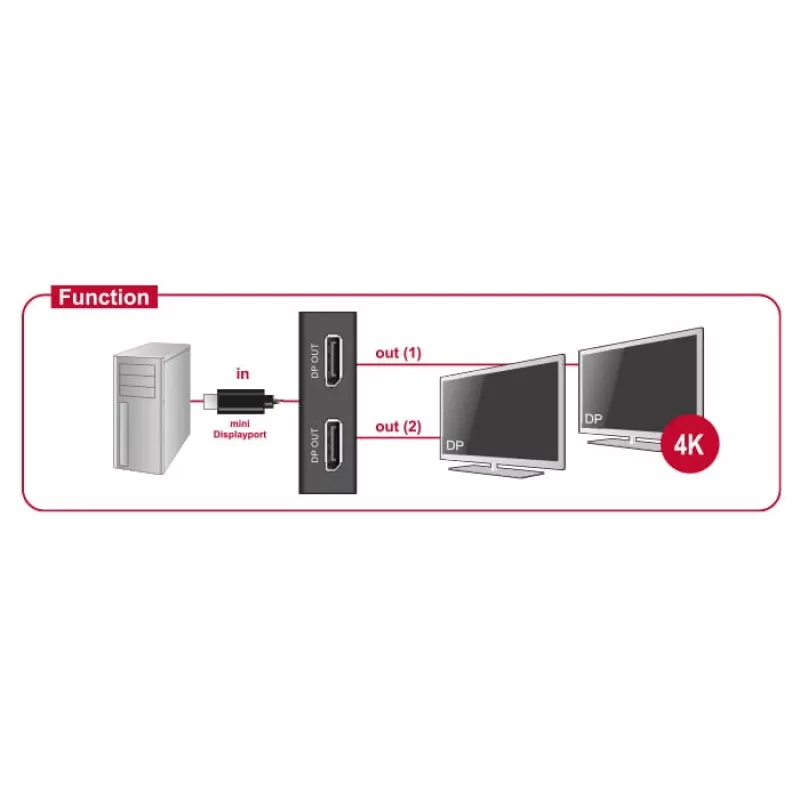

Connect the Mini DisplayPort plug to the Mini DisplayPort output of your PC or laptop. Attach two DisplayPort cables from the adapter’s DisplayPort outputs to the corresponding inputs on the monitors. If you need to connect HDMI or DVI monitors, attach passive DisplayPort-to-HDMI or DisplayPort-to-DVI adapters to the DP++ outputs before connecting the monitor cables. Power on the computer and configure the display arrangement in the operating system display settings.

Recommendations

For best results, use high-quality DisplayPort cables and, when connecting HDMI/DVI monitors, certified passive adapters. Check that the graphics source supports multi-stream transport or the required output mode for dual-output operation.
