Video rozbočovač DeLOCK 87776 1x HDMI 1x VGA

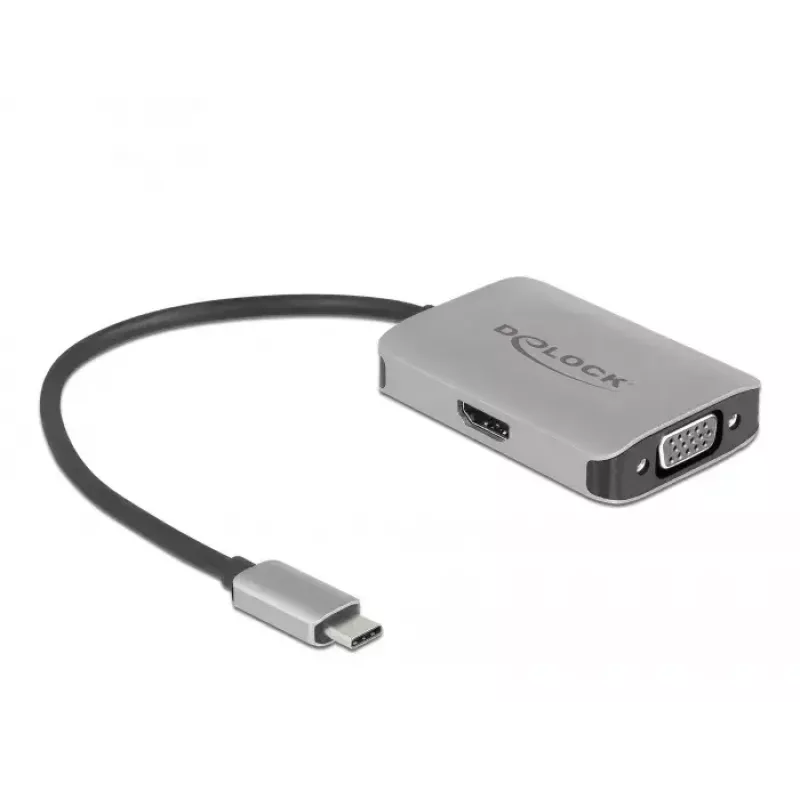

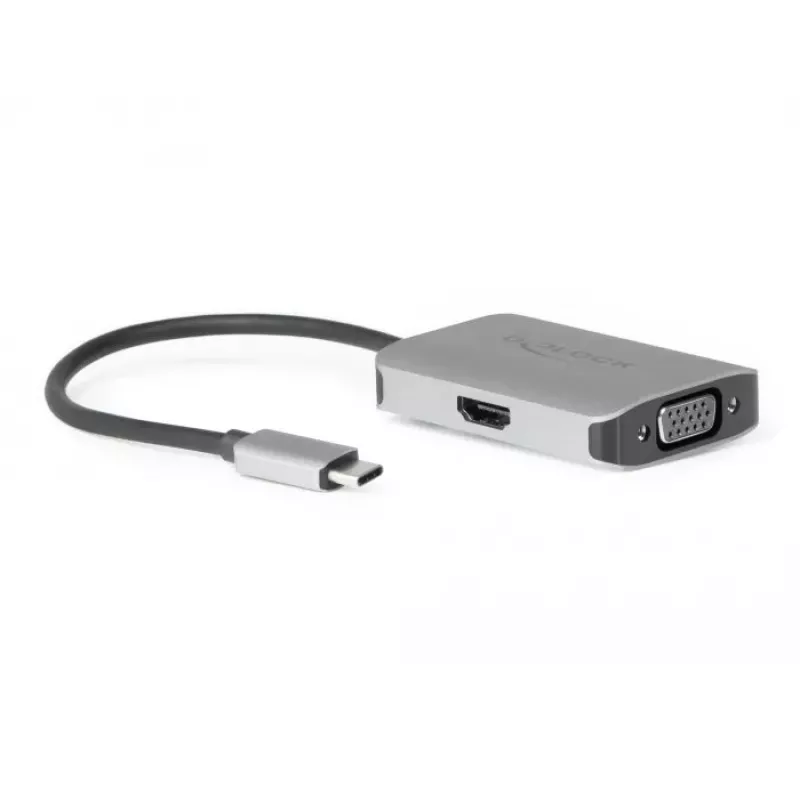

The DeLOCK 87776 video splitter connects a computer with a USB‑C port that supports DisplayPort alternate mode to two monitors: one via HDMI and one via VGA. Both outputs can be operated simultaneously and display the same image, with support for resolutions up to 3840 x 2160 pixels (4K Ultra HD). The unit is compact (46 mm × 65 mm × 14 mm) and comes in black and grey, packaged in a box as a single item.

Advantages

The splitter provides simultaneous HDMI and VGA outputs from a single USB‑C/DisplayPort Alt Mode source, enabling connection of a modern digital display and a legacy analogue monitor at the same time. It supports up to 4K UHD resolution on the HDMI output while offering a compact, lightweight design that is easy to place near a laptop or desktop. No additional power supply is required when used with a compatible USB‑C port.

Suitable for

• Connecting a laptop with USB‑C/DisplayPort Alt Mode to an HDMI monitor
• Connecting the same laptop to a VGA projector or older monitor
• Setting up presentations where two displays must show identical content

Key specifications

• Model: DeLOCK 87776
• Inputs: USB‑C (requires DisplayPort alternate mode)
• Outputs: 1 × HDMI, 1 × VGA
• Maximum resolution: up to 3840 × 2160 pixels (4K UHD) on supported output
• Dimensions: 46 mm (W) × 65 mm (D) × 14 mm (H)
• Colour: Black, Grey
• Packaging: Retail box, single unit

How to use

Connect the DeLOCK 87776 to a computer’s USB‑C port that supports DisplayPort alternate mode. Plug an HDMI cable from the splitter’s HDMI output to an HDMI display and a VGA cable from the VGA output to a VGA monitor or projector. Power on the computer and the displays; both outputs will mirror the same image. Configure display settings on the computer if needed to match resolution and scaling preferences.

Recommendations

Use quality HDMI and VGA cables and ensure the source device’s USB‑C port supports DisplayPort Alt Mode for proper operation. For best image quality on the HDMI display, select 3840 × 2160 resolution in the source device settings when supported. When connecting older VGA equipment, set compatible lower resolutions to avoid scaling artifacts.
