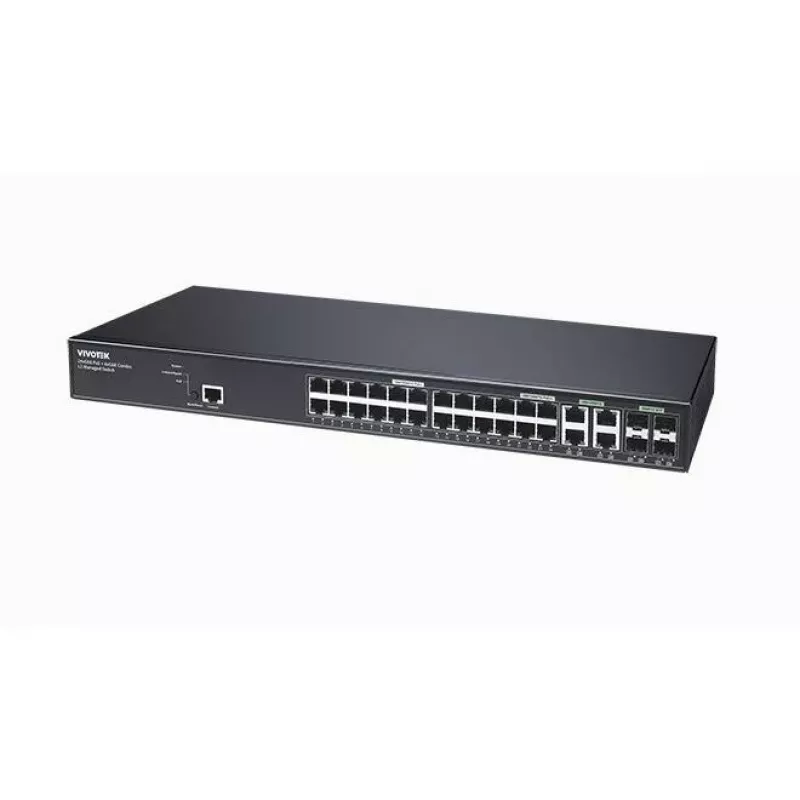

VIVOTEK AW-GEV-288A-370 PoE switch, 24-portový gigabitový, 4 SFP, 370W, rackmount, unmanaged

The VIVOTEK AW-GEV-288A-370 is a high-performance unmanaged PoE switch designed for reliable network connectivity and power delivery. With 24 Gigabit Ethernet ports and 4 SFP uplink slots, it provides seamless integration for IP cameras, access points, and other PoE devices. The switch delivers a total PoE power budget of 370W, supporting both IEEE 802.3af/at standards, making it ideal for power-hungry devices.

Advantages

This switch offers plug-and-play installation with no configuration required, reducing deployment time. Its robust metal housing and smart fan cooling ensure stable operation in demanding environments. The 56 Gbps switching capacity and 41.67 Mpps forwarding rate guarantee smooth data flow, while jumbo frame support up to 9K bytes optimizes performance for large data transfers.

Suitable for

• Small to medium business networks requiring PoE for IP cameras, VoIP phones, and wireless access points
• Surveillance systems needing centralized power and data connectivity
• Rackmount installations in server rooms or network closets

Key specifications

• 24 x 10/100/1000Base-T (RJ45) PoE+ ports
• 4 x 1000Base-X SFP uplink ports
• Total PoE power budget: 370W (up to 30W per port)
• Switching capacity: 56 Gbps
• Forwarding rate: 41.67 Mpps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes
• Management: Unmanaged
• Mounting: Rackmount 1U
• Power input: 100-240V AC, 50/60 Hz internal power supply
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 70°C
• Humidity: 10% to 90% non-condensing
• Cooling: Smart fan
• ESD protection: 6KV

Recommendations

For optimal performance, use quality Cat5e or higher cabling. Ensure adequate ventilation for the smart fan cooling. This switch is ideal for expanding your network with PoE capabilities without the complexity of managed switches.
