Voľne stojaci rack Lanview RDL12U66BL — 12U, 600 kg, zámok na kľúč, nastaviteľné nožičky, manažment káblov, IP40, čierny

The Lanview RDL12U66BL stands out among freestanding racks by combining a 600 kg load capacity with a compact 600x600 mm footprint, making it a robust yet space-efficient choice for small server rooms and edge deployments. Unlike many cabinets in its class, it pairs a smoked safety glass front door with a lockable steel rear door, providing both visibility and physical security without compromising on ventilation.

Highlights

• 12U height with depth-adjustable 19" mounting rails for flexible equipment installation.

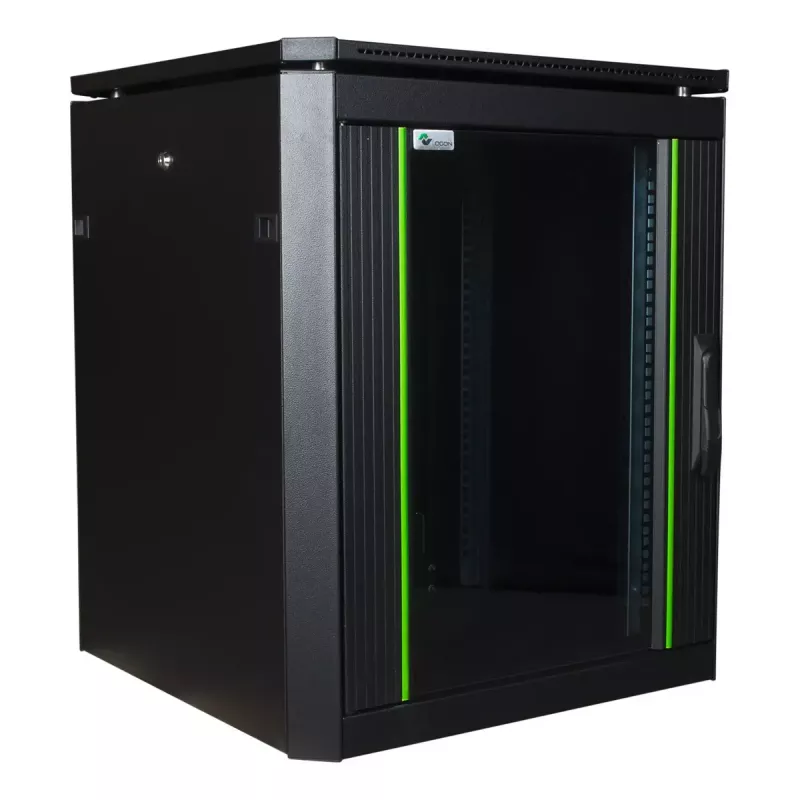

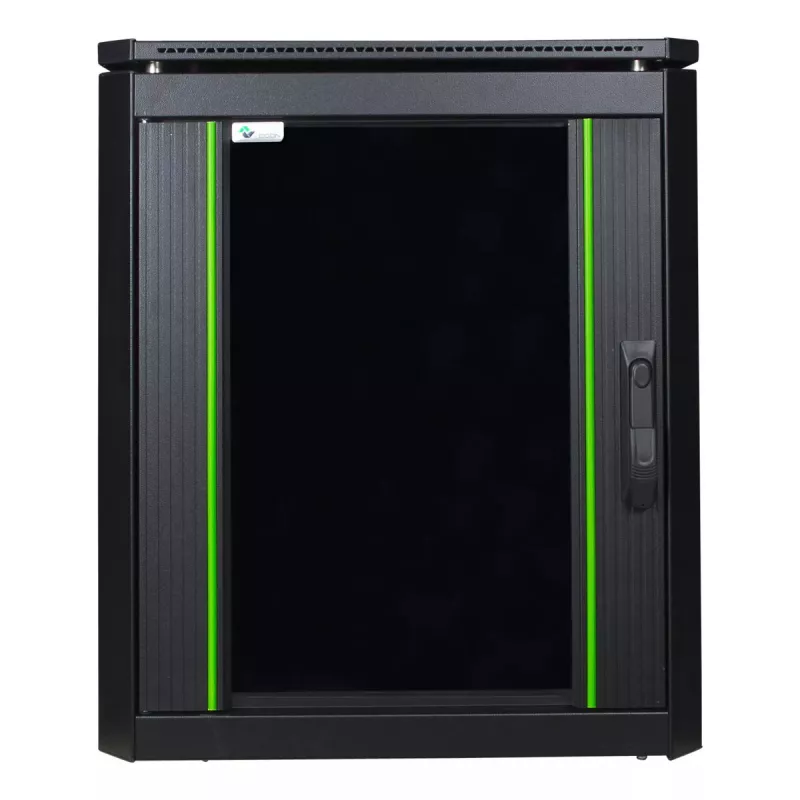

• Front door: 4 mm smoked framed safety glass, lockable swing handle, 180° opening angle.
• Rear door: lockable steel with barrel locking mechanism.

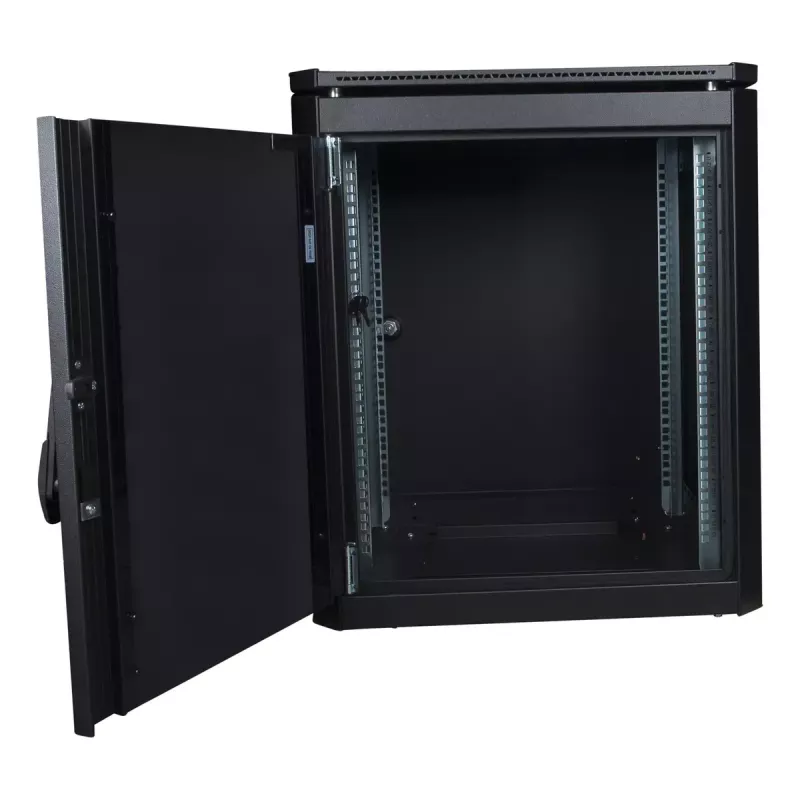

• Tool-free removable and reversible front door with spring-mounted hinges.
• Integrated cable management: rubber-edged floor entry, top/bottom brush strips.
• Passive ventilation via raised roof design; IP40 protection against dust and water ingress.
• Adjustable leveling feet for stable placement on uneven floors.
• Powder-coated SPCC cold rolled steel construction for durability.

In daily use

This cabinet is built for organized, secure housing of network switches, patch panels, and telecom equipment. The adjustable rails allow precise alignment with various device depths, while the brush-strip cable entries keep cabling tidy and protected. The reversible front door adapts to your room layout, and the lockable doors deter unauthorized access. Passive ventilation ensures adequate airflow for typical office or branch IT loads, with the option to add fan units if needed.

Full specifications

• Rack type: Freestanding server rack
• Rack capacity: 12U
• Maximum load capacity: 600 kg
• External dimensions (WxDxH): 600 x 600 x 640 mm
• Internal rack width: 19 inch
• IP rating: IP40
• Colour: Black
• Material: SPCC cold rolled steel, powder coated
• Front door: 4 mm smoked tempered glass, lockable
• Rear door: Steel, lockable

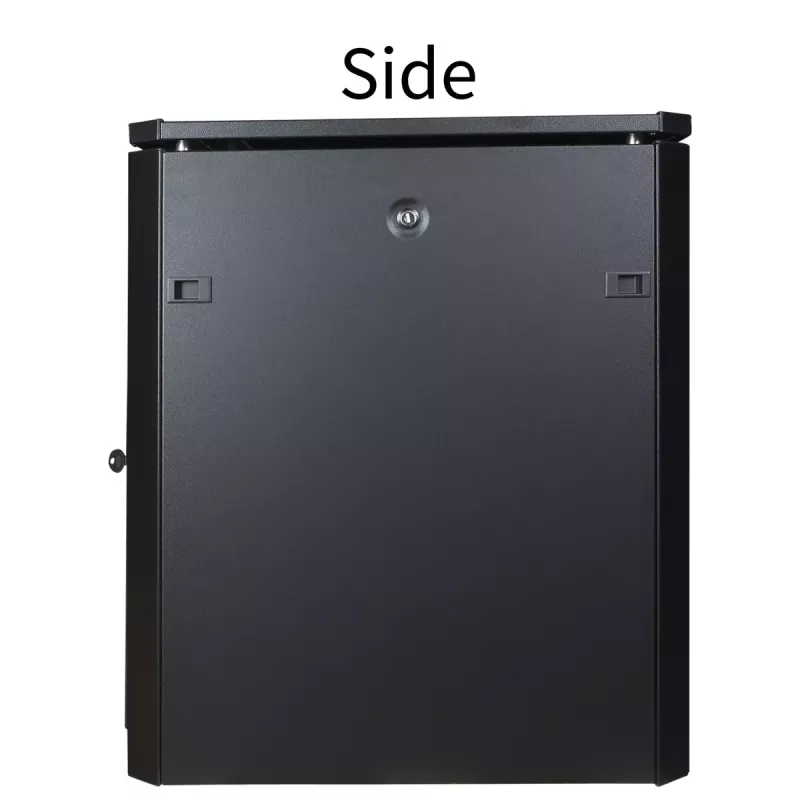

• Side panels: Removable, lockable
• Feet: Adjustable leveling feet
• Cable management: Top/bottom brush strips, rubber-edged floor entry
• Ventilation: Passive (perforated top/bottom, optional fans)
• Compliance: ANSI/EIA RS-310-D, IEC297-2, DIN41494 PART1, DIN41494 PART7
• Included accessories: 2 keys, mounting hardware (cage nuts, screws)

Final note

The Lanview RDL12U66BL delivers enterprise-grade security and load capacity in a compact form factor, ideal for edge IT, telecom closets, and small server installations where space and reliability are critical.
