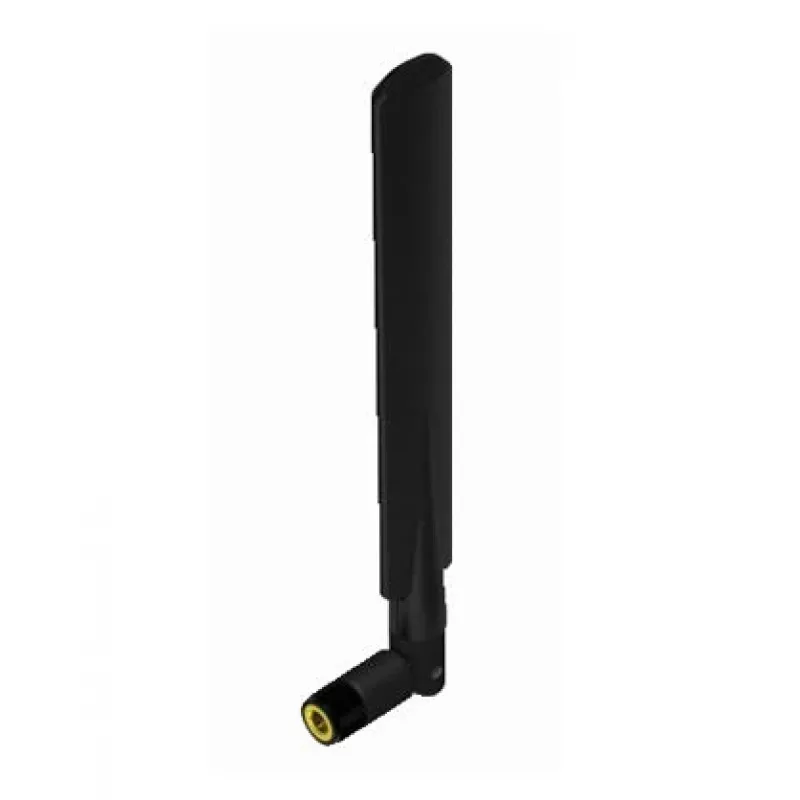

Všesmerová anténa Panorama Antennas PWB-BC3G-38-RSMAP 2 dBi SMA

The Panorama Antennas PWB-BC3G-38-RSMAP is an omni-directional, ground-plane independent antenna covering global 2G/3G/4G bands and 5G frequencies in the 3.4–3.8 GHz range. Built for use with terminals and routers, it provides a compact form factor (22 mm × 163 mm × 7 mm) and a 2 dBi gain with an SMA connector for straightforward installation in confined spaces.

Advantages

The PWB-BC3G-38-RSMAP supports multiple cellular bands (698–960 / 1710–2170 / 2500–2700 MHz) plus 3.4–3.8 GHz 5G, enabling broad compatibility with global networks. Its ground-plane independent design allows flexible mounting without requiring a conductive surface. The articulated SMA connector permits angled positioning for improved clearance and neat cable routing while the low-profile housing reduces visual impact.

Suitable for

• Indoor and outdoor routers and gateways
• Cellular terminals and industrial modems
• IoT and M2M communication devices requiring 3.4–3.8 GHz 5G
• Applications with limited mounting space

Key specifications

• Model: Panorama Antennas PWB-BC3G-38-RSMAP
• Frequency coverage: 698–960 / 1710–2170 / 2500–2700 / 3400–3800 MHz
• Antenna gain: 2 dBi
• Connector: Articulated SMA
• Dimensions: 22 mm (W) × 163 mm (D) × 7 mm (H)
• Ground plane: Independent

How to use

Connect the antenna to the device’s SMA socket, adjusting the articulated connector to achieve the desired orientation. Mount the antenna in a vertical position where possible for omni-directional coverage, taking care to keep it clear of large metal obstructions that can attenuate signals. Use suitable mounting hardware or adhesive as required by the installation environment.

Recommendations

For best performance, place the antenna away from other RF sources and large metal structures. Verify network band compatibility with your operator and position the antenna to minimise cable bends and losses between the antenna and modem or router.
