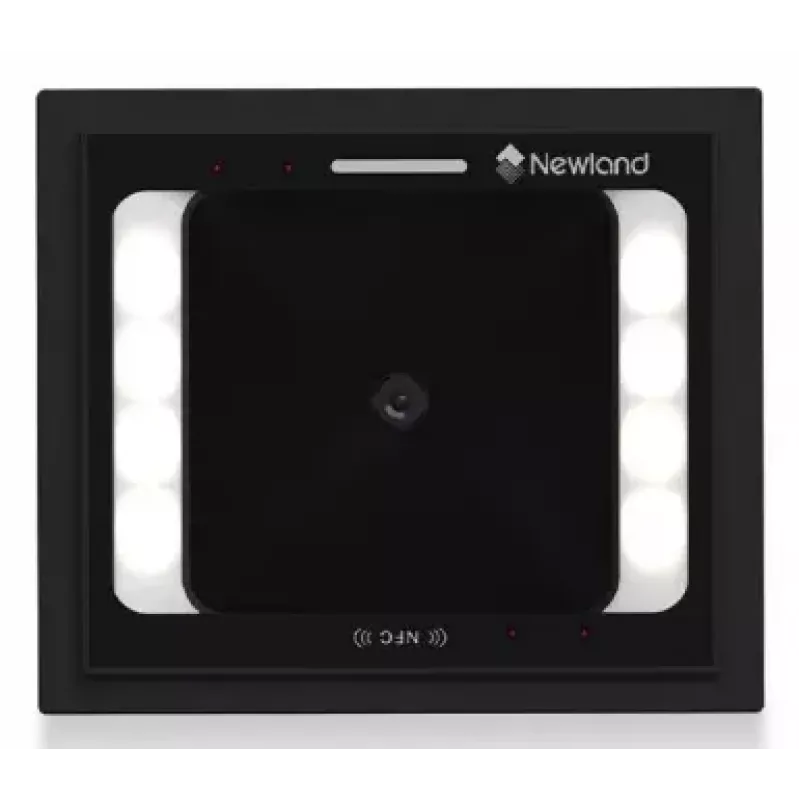

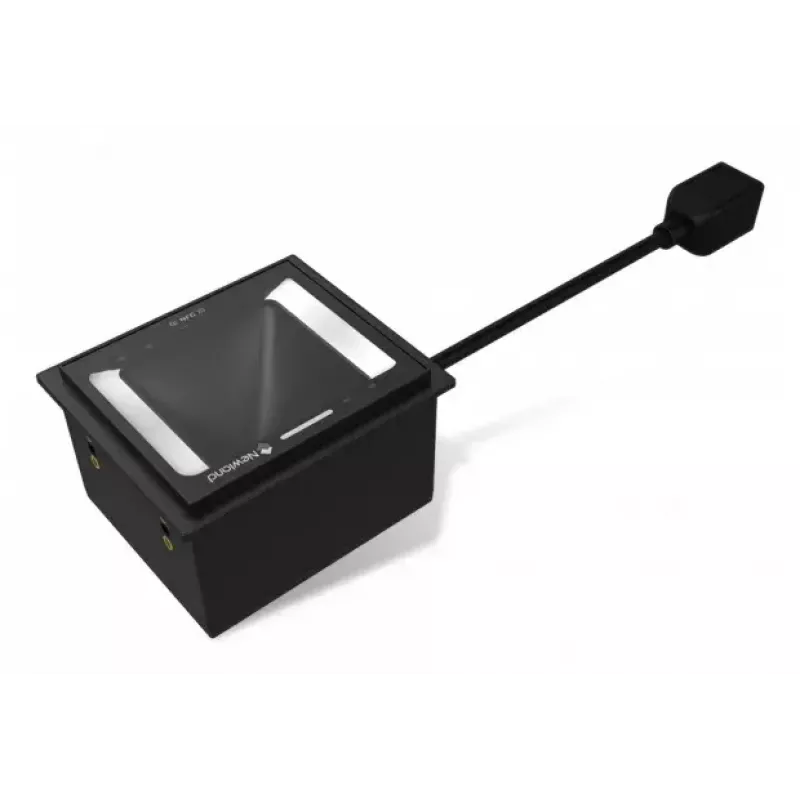

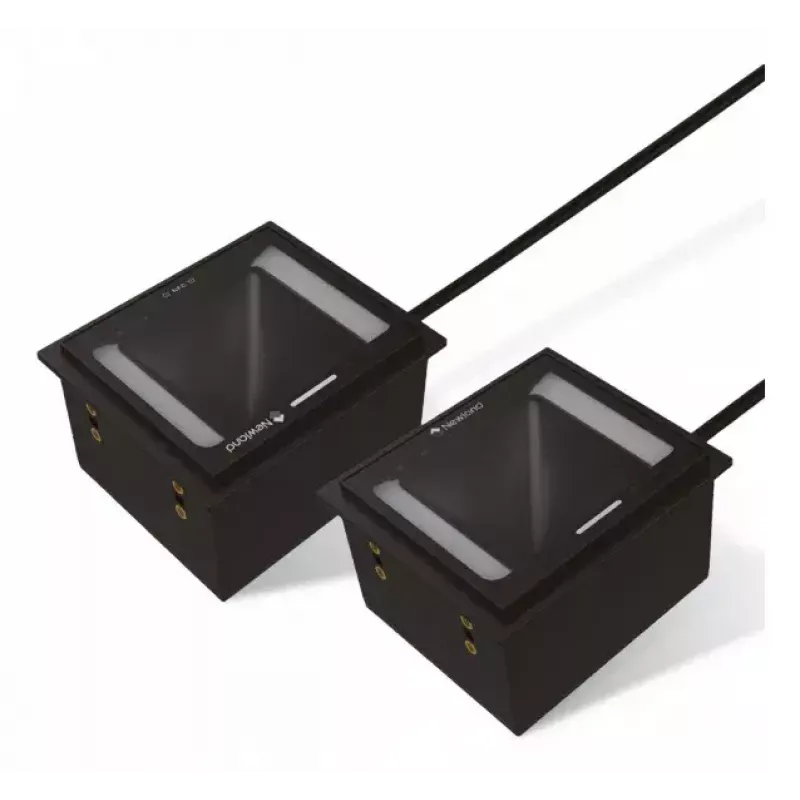

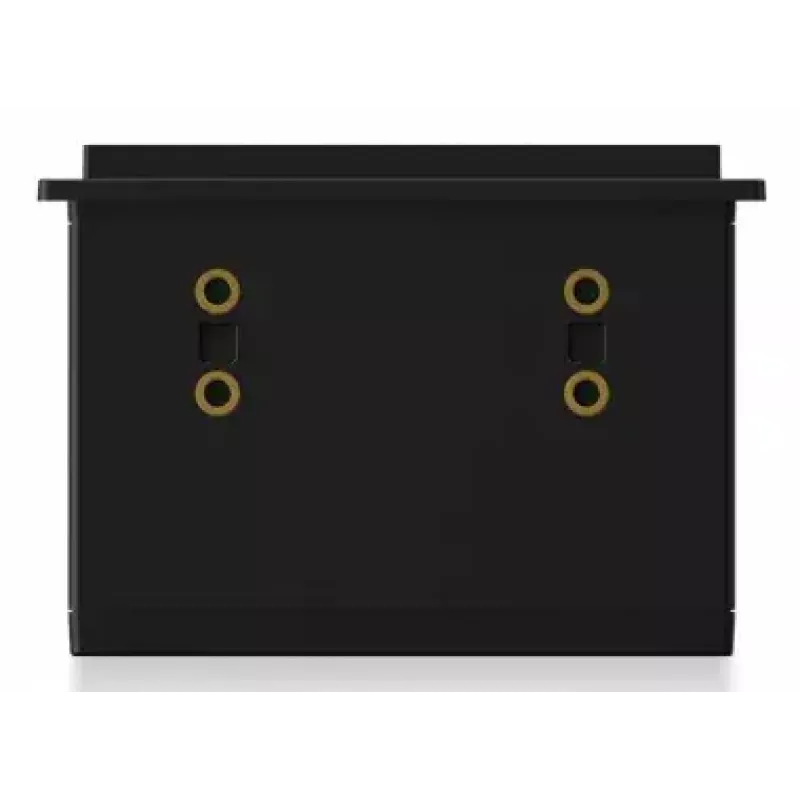

Vstavaná čítačka čiarových kódov Newland FM3281 Grouper 1D/2D CMOS káblová čierna

The Newland FM3281 Grouper is a built-in 1D/2D barcode and OCR reader with integrated NFC and a rugged outdoor-ready design. Featuring a CMOS sensor, wired connectivity (RS-232 and USB) and IP67 protection, the FM3281 is intended for fixed-mount applications where durable, continuous operation and secure data exchange are required. Compact dimensions and support for multiple NFC card types make it suitable for access control, ID reading and other automated workflows.

Advantages

The FM3281 combines full NFC functionality with advanced barcode and OCR capture using Newland’s sixth-generation Megapixel technology. An IP67 seal protects against dust and water and reduces condensation when temperatures change. Glare-reduction optics and combined IR and light triggers improve read reliability in bright sunlight and low ambient light. Built-in status reporting provides 24/7 feedback to a host system while optional protocols such as Wiegand and RS485 expand integration options for access control and industrial deployments.

Suitable for

• Outdoor fixed-mount barcode scanning (entrances, gates, kiosks)
• Access control systems using contactless NFC cards
• ID and OCR reading (identity documents, ID cards)
• Industrial installations requiring RS485 or Wiegand connectivity
• Remote monitoring applications needing continuous status updates

Key specifications

• Scan types: 1D/2D barcodes and OCR
• Sensor: CMOS, Megapixel imaging
• Connectivity: Wired — RS-232, USB (additional protocols: Wiegand, RS485)
• NFC: Full-function NFC support for multiple contactless card types
• Ingress protection: IP67
• Power: DC input 5–24 V, 220 mA
• Dimensions (W×D×H): 78.7 × 47.7 × 67.7 mm
• Color: Black

How to use

Mount the FM3281 securely at the fixed location and connect power and the chosen host interface (RS-232 or USB). Configure NFC, barcode and OCR modes through the host software according to the target application. Position the reader so barcodes or ID cards pass within the optics’ read zone; IR and light sensors will trigger capture automatically when objects are presented. For multi-device or long-distance installations use RS485 or Wiegand as appropriate and verify host integration and permissions if NFC is used for access or payment scenarios.

Recommendations

The FM3281 performs best when installed with a clear line of sight and minimal reflective surfaces; verify mounting angle for optimal barcode alignment. Use RS485 for longer runs and Wiegand for secure access control integrations. Regularly check firmware and host software for updates to maintain NFC security and read performance.
