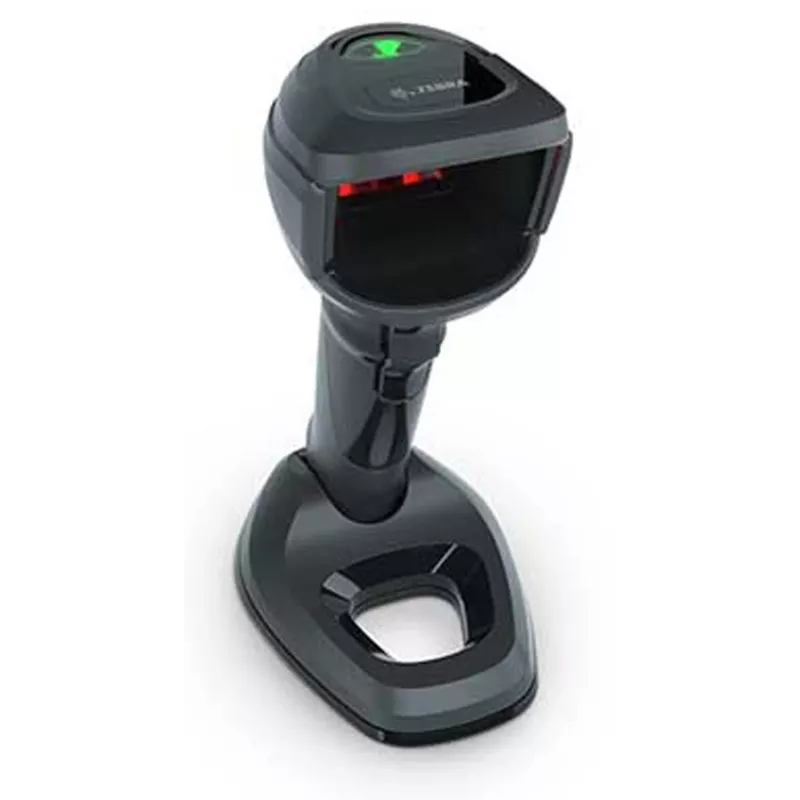

Zebra DS9908-SR ručný čítač čiarových kódov 1D/2D čierna

The Zebra DS9908-SR handheld bar code reader is designed for laboratory and high-density scanning environments. It captures 1D and 2D barcodes, including small, curved and color-coded codes found on microscope slides, vials and specimen trays. The hybrid presentation imager supports both handheld and hands-free use and offers wired connectivity with robust dust and moisture resistance for reliable operation.

Advantages

The DS9908-SR achieves first-time capture of dense and curved barcodes using a megapixel sensor, 800 MHz processor and PRZM Intelligent Imaging technology. Its hybrid design allows seamless switching between handheld and presentation modes with automatic scan-range adjustment. Built with a compact, ergonomic one-piece housing, it provides high manageability through remote configuration, firmware updates and data-formatting tools. White illumination LEDs improve readability on color-coded labels and small symbols.

Suitable for

• Laboratory specimen identification (slides, biopsy cassettes)
• Pharmacy and medication vial scanning
• Specimen tray and plate tracking in clinical workflows
• Environments requiring mixed handheld and hands-free scanning

Key specifications

• Scanner type: 1D/2D imaging
• Supported barcode types: common linear and 2D symbologies (e.g., U.P.C., Code 128, Code 39, PDF417, Data Matrix, QR Code)
• Sensor: megapixel image sensor with PRZM Intelligent Imaging technology
• Processor: 800 MHz microprocessor
• Illumination: white LEDs for high-density barcode reading
• Connectivity: wired interface with auto-host detect
• Ingress protection: IP52 (dust and moisture resistance)
• Weight: approximately 0.33 kg
• Physical dimensions (footprint): compact, small desk/base footprint
• Image output formats: BMP, JPEG, TIFF

How to use

Connect the DS9908-SR to a host using the supplied cable; the scanner auto-detects the correct host interface. For handheld use, grasp the ergonomic one-piece scanner and aim at the barcode, allowing the device to adjust its scan range automatically. For hands-free presentation mode, place the scanner in its base and present barcodes to the imaging window. The device uses white LEDs and PRZM imaging to capture dense, curved or color-coded barcodes; captured images or decoded data are sent to the host in the selected format.

Recommendations

The DS9908-SR performs best when used at the correct distance for the barcode size—keep small or high-density barcodes close to the imaging window. Use the hands-free mode for high-throughput tasks and handheld mode for targeted scanning of curved or awkwardly positioned items. Regularly update firmware using the management tools to ensure optimal performance and compatibility.
