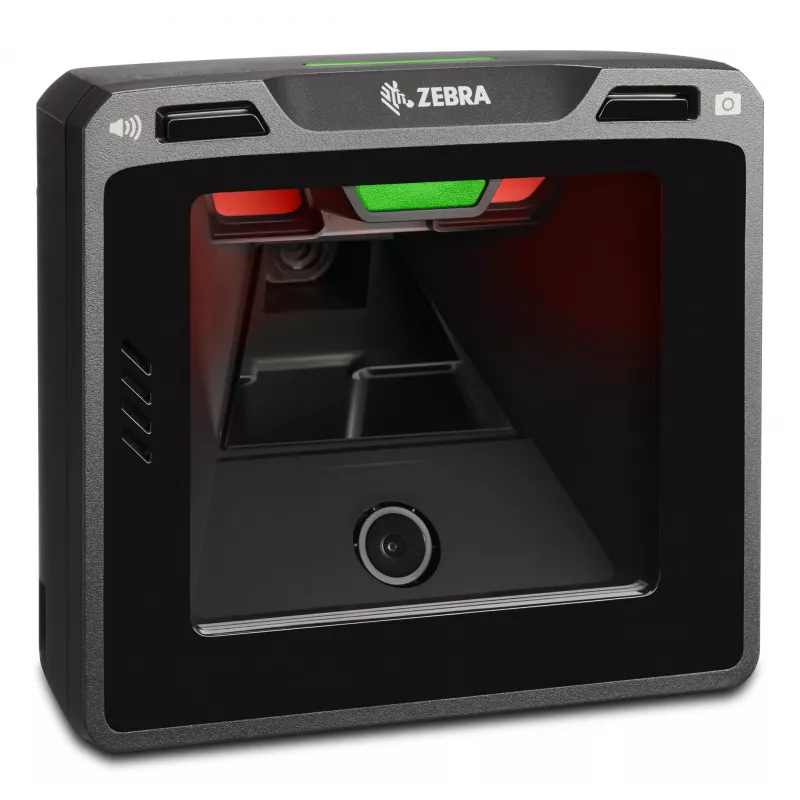

Vstavaná čítačka čiarových kódov Zebra SP7208-V 1D/2D USB čierna

The Zebra SP7208-V is a built-in barcode reader that supports both 1D and 2D codes and connects via USB. Designed for in-counter and on-counter installation, the SP7208-V offers a compact black housing with IP52 protection and a durable build suitable for grocery, convenience, pharmacy and specialty store checkouts. The scanner delivers high-performance single-plane vertical scanning that speeds up transactions and integrates with self-checkout (SCO) systems.

Advantages

The SP7208-V provides fast "swipe-and-go" scanning for cashiers and self-checkout users, available in a vertical form factor to fit counters and lanes. It reduces shrink and fraud risk at self-checkouts by supporting vision-based applications via an optional color camera, and its multiple on-board interfaces ensure compatibility with common POS systems. The unit’s USB wired connectivity, support for a wide range of 1D and 2D symbologies, and compact design simplify installation and maintenance.

Suitable for

• Supermarket and grocery checkout lanes
• Self-checkout stations in retail and convenience stores
• Pharmacy and specialty store counters
• Point-of-sale environments requiring built-in vertical scanners

Key specifications

• Brand: Zebra
• Model: SP7208-V (MPN: SP7208-SV4U2100TZW)
• Connectivity: USB (wired)
• Supported codes: 1D and 2D (Code 93, UPC-A, Plessey, MSI, GS1 DataBar, Code 39, Code 128, Code 11, Codabar; Composite Codes, QR Code, TLC-39, PDF417, MicroPDF417, Micro QR Code, MaxiCode, Han Xin, Data Matrix, Aztec Code)
• Protection rating: IP52
• Colour: Black
• Weight: 0.577 kg
• Power: 5 V DC
• EAN: 5715063412640

How to use

Install the SP7208-V flush into a counter opening or mount it on the counter edge in the vertical orientation. Connect the scanner to a POS or self-checkout terminal using the USB interface and ensure the host system provides 5 V DC power as required. For standard scanning, pass barcodes across the scanner window in a steady motion; the high-performance single-plane imager will read supported 1D and 2D codes. If using vision-based applications, install and configure the optional color camera and related software according to Zebra’s integration guidelines.

Recommendations

Place the scanner at a comfortable height for both cashiers and customers, verify compatibility with your POS software before installation, and consider enabling vision-based shrink-mitigation features where appropriate. Regularly clean the scanner window to maintain optimal read rates.
