Vzduchový chladič DeepCool AG620 BK ARGB V2 — 120 mm dvoj ventilátor, 6 heatpipes, podpora LGA 1700/AM4/AM5, čierny

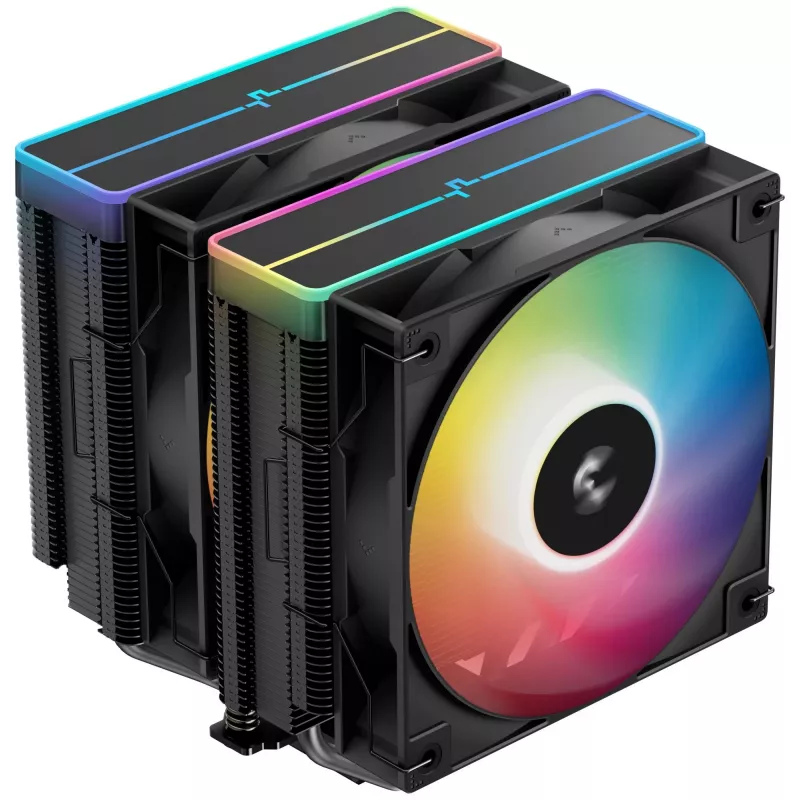

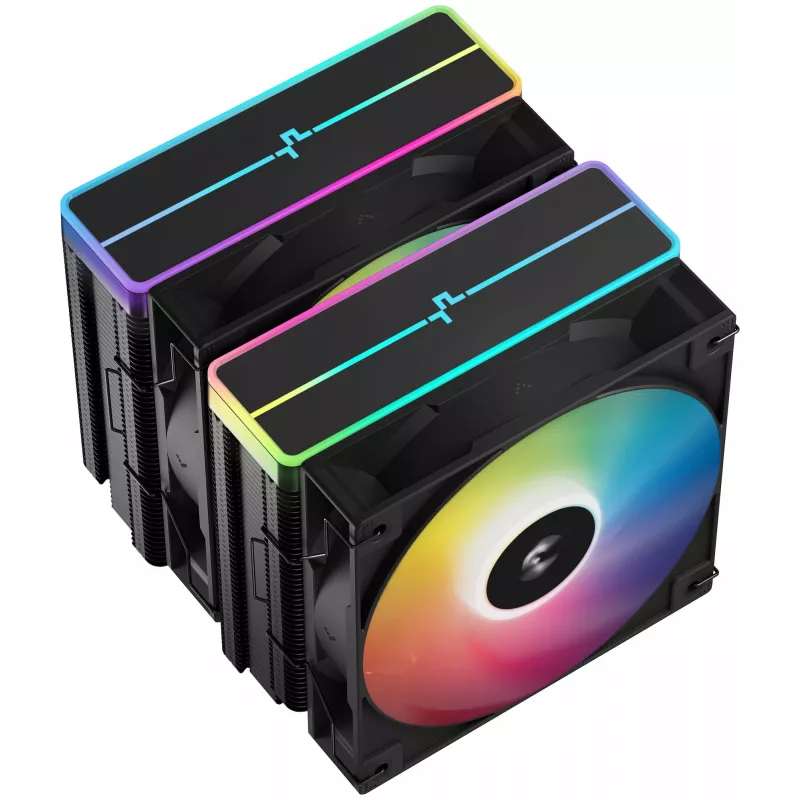

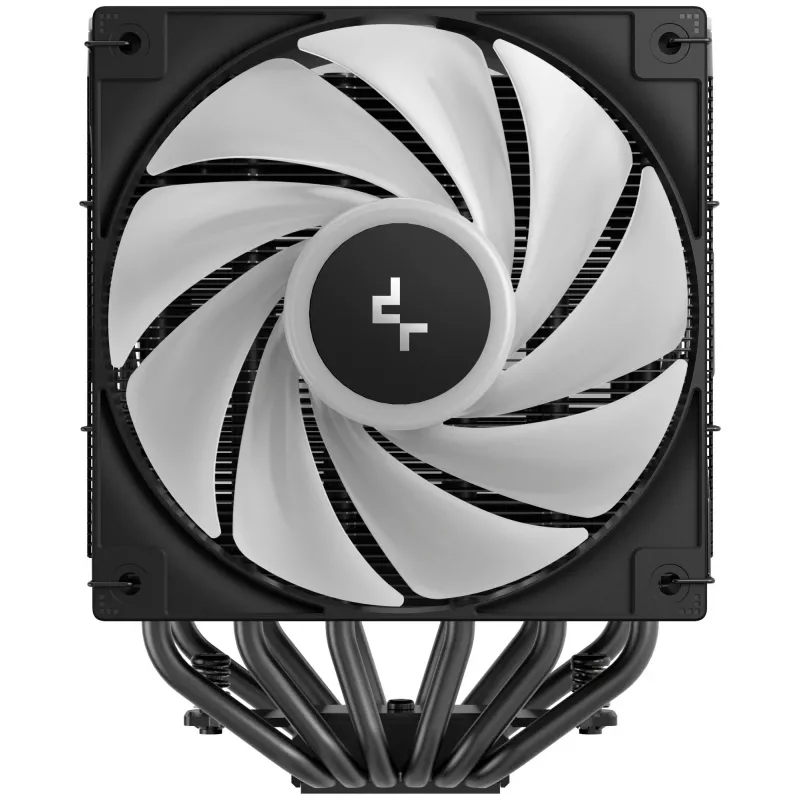

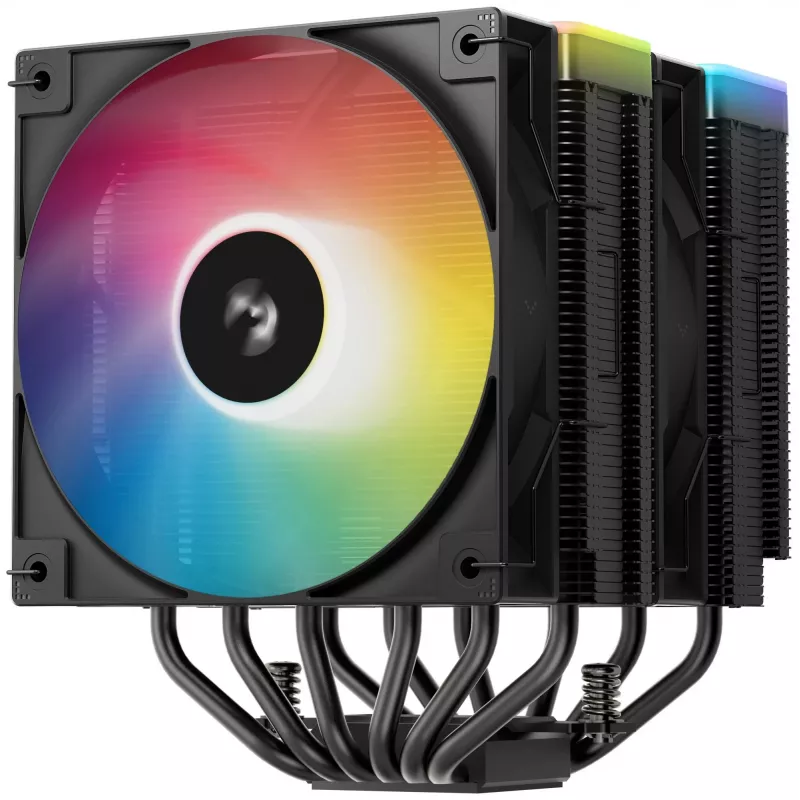

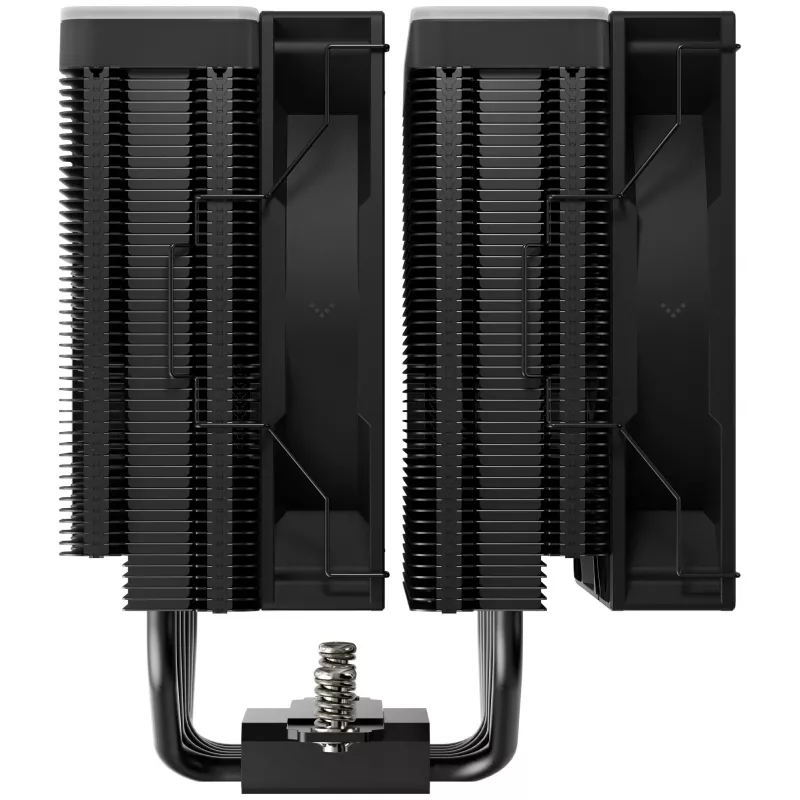

The DeepCool AG620 BK ARGB V2 is an all-black dual-tower air cooler designed for efficient CPU heat dissipation. It features six heat pipes embedded in a dense fin stack, two 120 mm ARGB PWM fans, and a nickel-plated coldplate that works with Core Touch Technology 2.0 to improve thermal transfer. The cooler measures approximately 136 mm (W) × 129 mm (D) × 161 mm (H) and weighs 1.33 kg, and is compatible with a wide range of Intel and AMD sockets including LGA 1155/1151/1150/1200/1700 and AM4/AM5.

Advantages

The dual-tower layout with six optimized heat pipes and a dense matrix fin stack provides substantial cooling capacity across a broad TDP range. Core Touch Technology 2.0 and a nickel-plated coldplate enhance thermal transfer from the CPU IHS. Balanced bidirectional heat pipe technology and a precisely controlled capillary structure improve phase-change efficiency regardless of cooler orientation. Two fine-tuned 120 mm ARGB PWM fans offer a balance of high static pressure for effective heat sink airflow and quiet operation at low loads. The all-metal mounting bracket ensures secure, even contact on both Intel and AMD platforms.

Suitable for

• Air cooling for mid- to high-performance desktop CPUs
• Systems requiring ARGB lighting in a black, minimalist style
• Motherboards with sockets LGA 1155/1151/1150/1200/1700 and AM4/AM5
• Compact towers that can accommodate a cooler up to 161 mm in height

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm (two ARGB PWM fans)
• Heat pipes: 6
• Cooling technology: Core Touch Technology 2.0, nickel-plated coldplate
• Dimensions (W×D×H): ~136 × 129 × 161 mm
• Weight: 1.33 kg
• Supported sockets: LGA 1155 / 1151 / 1150 / 1200 / 1700, AM4, AM5
• Colour: Black

How to use

Install the DeepCool AG620 BK ARGB V2 using the supplied all-metal mounting bracket and follow the platform-specific mounting steps for your Intel or AMD socket. Apply an appropriate amount of thermal paste to the CPU IHS, align the nickel-plated coldplate with the processor, and tighten the mounting screws to achieve even pressure. Connect the two 120 mm ARGB PWM fan power and ARGB headers to the motherboard or controller according to the manual to enable fan speed control and lighting.

Recommendations

For optimal performance, ensure adequate case airflow with at least one intake and one exhaust fan. Use motherboard fan controls or a PWM fan curve to balance noise and cooling based on system load. Verify cooler clearance around RAM and VRM components before installation, especially in smaller cases.
