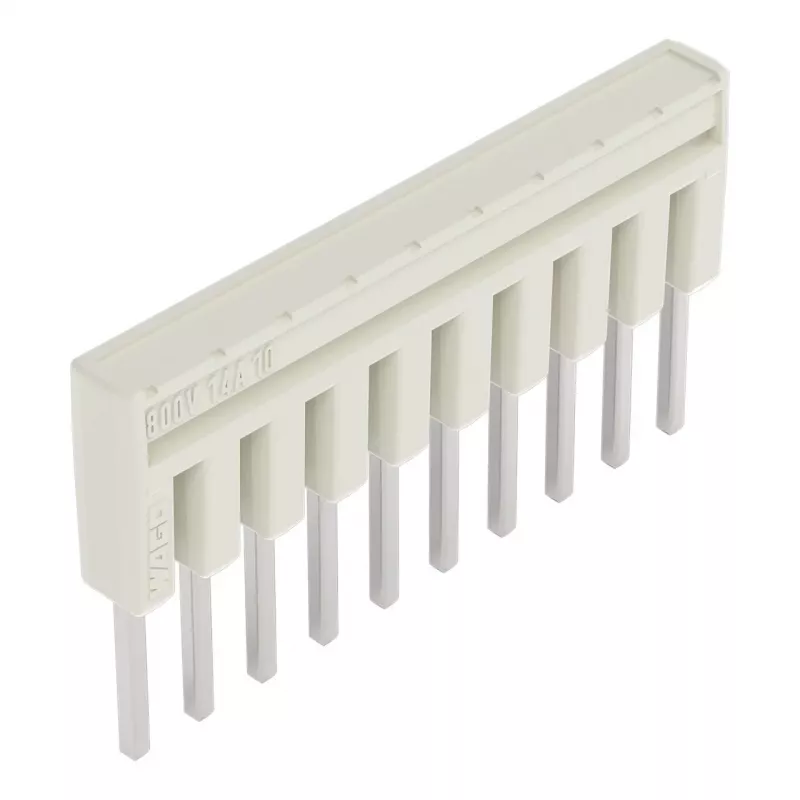

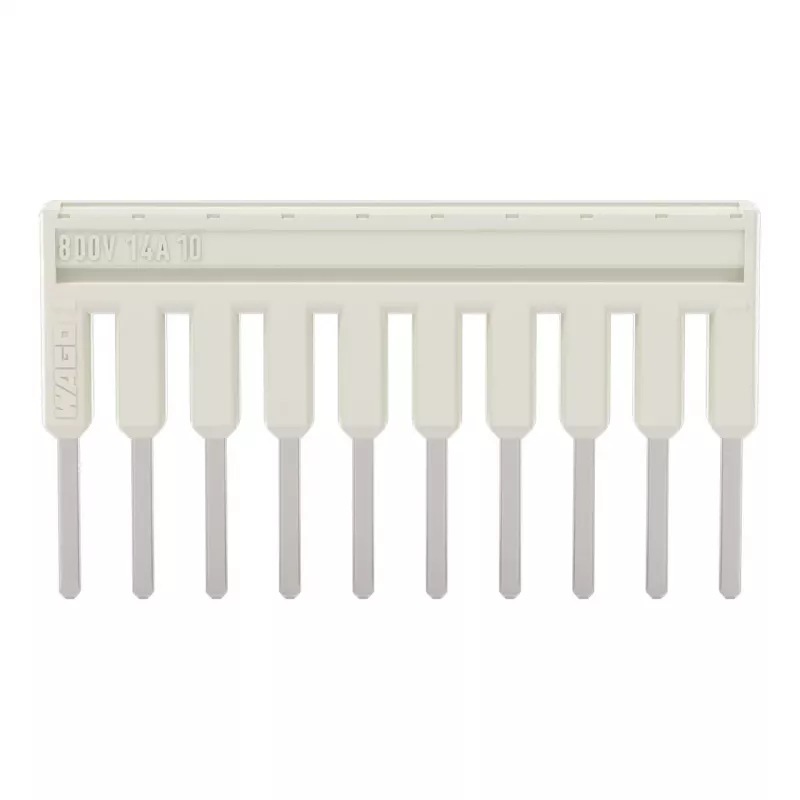

WAGO 2000-410 izolovaná priečna prepojka, 10-násobná, sivá

Jumper bar for WAGO TOPJOB S rail-mounted terminal blocks, enabling quick potential distribution across 10 adjacent terminals without individual wiring. The insulated design prevents accidental contact and short circuits.

Advantages

Push-in connection allows tool-free installation and removal. The grey insulation matches standard terminal block colour coding. Rated for 24 A and 800 V, suitable for industrial control and power distribution.

Suitable for

• Potential distribution in control cabinets
• Bridging common potentials (e.g., 24 V DC, 0 V) across multiple terminals
• Use with WAGO 2000 series TOPJOB S terminal blocks

Key specifications

• Number of poles: 10
• Pitch: 5.2 mm
• Rated current: 24 A
• Rated voltage: 800 V
• Insulation material: Polyamide (PA), flammability class UL94 V0
• Operating temperature: -35 to +105 °C

Recommendations

For reliable potential distribution in industrial applications, combine with WAGO TOPJOB S terminal blocks of the 2000 series.
