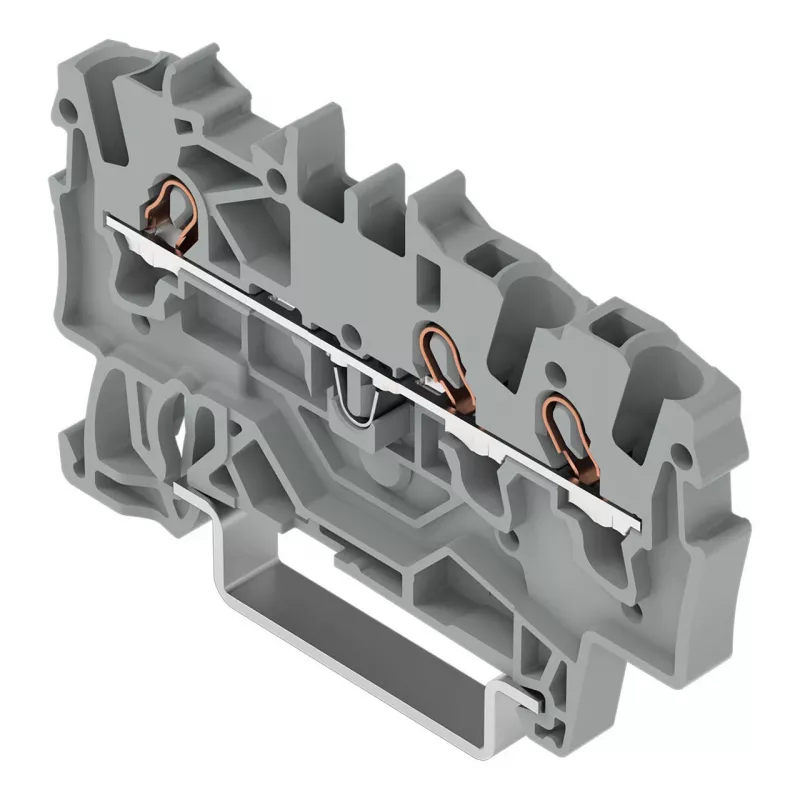

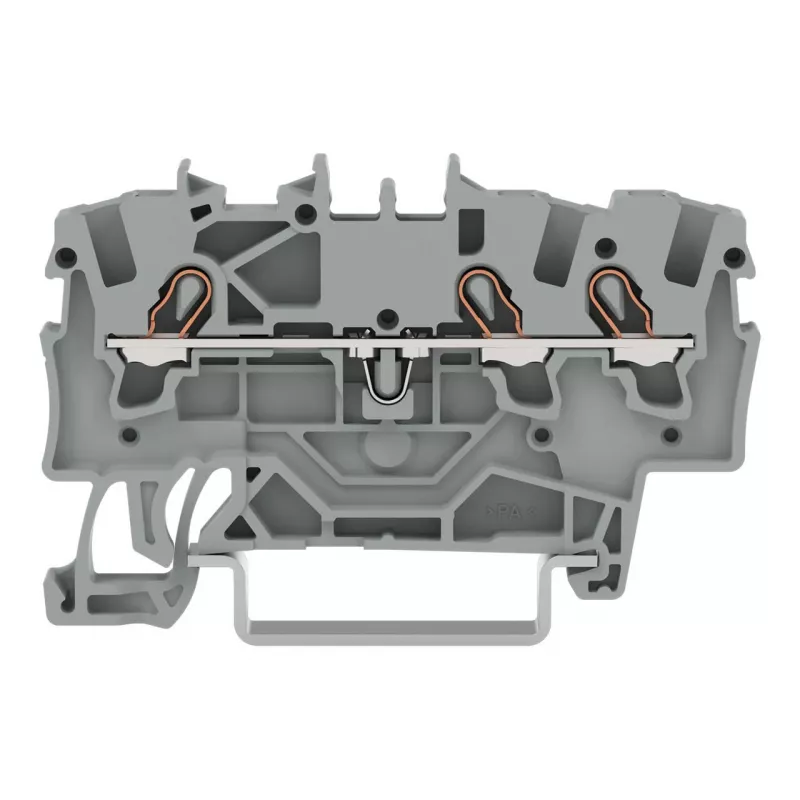

WAGO 2001-1301 3-vodičová priechodná svorka, 1,5 mm², Push-in CAGE CLAMP, Ex e II, sivá

Industrial installations in hazardous areas demand connection technology that combines safety, compactness, and ease of use. The WAGO 2001-1301 3-conductor through terminal block meets these needs with push-in CAGE CLAMP® technology, allowing tool-free insertion of solid and ferruled conductors. Its Ex e II approval makes it suitable for use in potentially explosive atmospheres, while the 1.5 mm² nominal cross-section supports a wide range of signal and control wiring. Mounted on a DIN rail, this gray terminal block provides a reliable, vibration-resistant connection point for three conductors in a single potential.

Who is it for

This terminal block is ideal for panel builders, machine manufacturers, and electrical contractors working on control cabinets, junction boxes, and equipment intended for use in hazardous locations. It is particularly suited for applications requiring compact, high-density wiring with frequent conductor changes or maintenance, thanks to its push-in termination that speeds up installation without special tools.

Main features

• 3-conductor through terminal block with one potential, enabling easy distribution of a single signal or power line.
• Push-in CAGE CLAMP® connection: insert solid or ferruled conductors directly; no tools needed, reducing wiring time by up to 50%.
• Ex e II certified for use in increased safety (Ex e) enclosures and hazardous areas.
• Rated voltage 800 V and current 17.5 A (per EN), suitable for many industrial control circuits.
• Compact dimensions: width 4.2 mm, height 59.2 mm, depth 32.9 mm, saving space on the DIN rail.
• Gray polyamide (PA 66) housing, UL94 V0 flammability rating, halogen-free.
• Accepts solid, stranded, and fine-stranded conductors from 0.25 to 2.5 mm² (solid/stranded) and 0.25 to 1.5 mm² (fine-stranded with ferrule).
• Wide operating temperature range: -35 °C to +85 °C.

Specifications

• Brand: WAGO
• Model: 2001-1301
• MPN: 2001-1301
• EAN: 4017332998628
• Number of conductors: 3
• Number of potentials: 1
• Connection technology: Push-in CAGE CLAMP®
• Mounting type: DIN-rail (35 mm)
• Nominal cross-section: 1.5 mm²
• Rated voltage (EN): 800 V
• Rated current (EN): 17.5 A
• Stripping length: 9 – 11 mm
• Conductor types: solid, stranded, fine-stranded
• Solid/stranded conductor range: 0.25 – 2.5 mm²
• Fine-stranded with ferrule: 0.25 – 1.5 mm²
• Insulation material: Polyamide (PA 66)
• Flammability rating: UL94 V0
• Color: Gray
• Operating temperature: -35 to +85 °C
• Ex e II approval: Yes
• Dimensions (W x H x D): 4.2 x 59.2 x 32.9 mm

Tips

For reliable push-in connections, use ferrules on fine-stranded conductors and ensure the conductor is stripped to 9–11 mm. When installing in Ex e enclosures, verify that the terminal block's ratings match the system requirements and follow the enclosure manufacturer's instructions. To release a conductor, use a standard screwdriver to press the orange push-button, then pull the conductor out.
