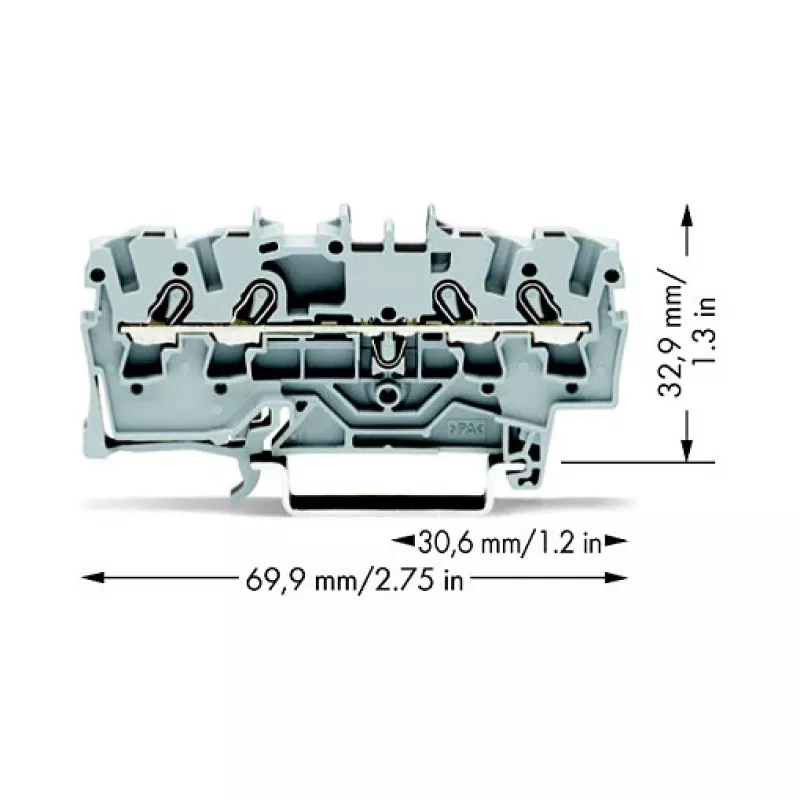

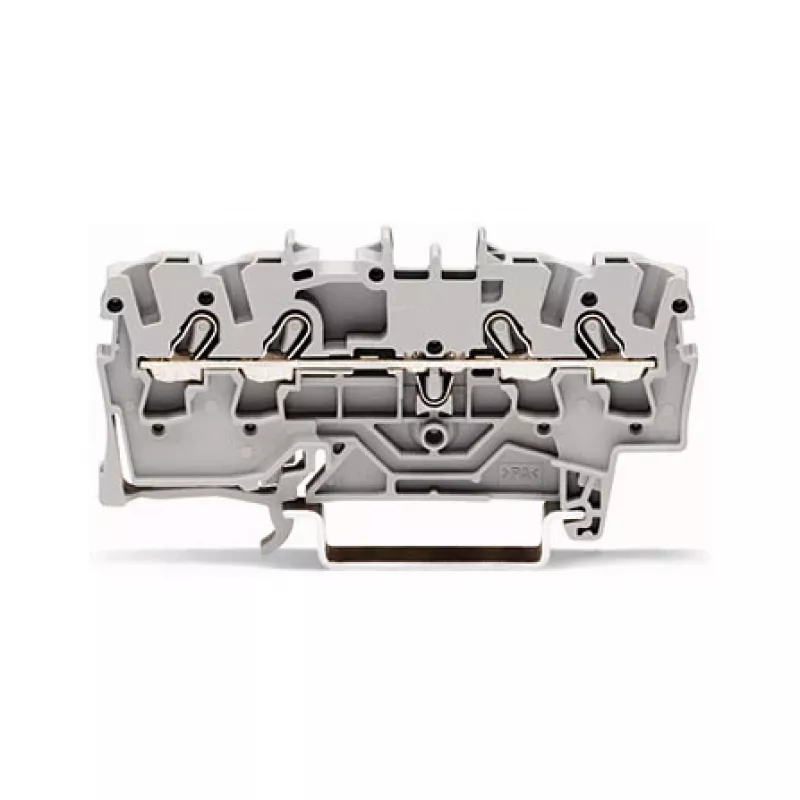

WAGO 2002-1401 priechodná svorka, 4-vodičová, 2,5 mm², Push-in CAGE CLAMP, 800 V, sivá

The WAGO 2002-1401 is a high-quality through terminal block designed for reliable and efficient electrical connections. With 4 conductors and a nominal cross-section of 2.5 mm², it is ideal for a wide range of industrial and commercial applications. The innovative Push-in CAGE CLAMP® technology ensures fast, tool-free wiring, saving time and reducing installation errors.

Advantages

This terminal block offers exceptional ease of use with its push-in connection system, allowing solid and fine-stranded conductors to be inserted directly without the need for ferrules. The compact design saves space on the DIN-rail, while the robust polyamide housing provides excellent insulation and durability. Rated for 800 V and 24 A, it meets stringent safety standards.

Suitable for

• Control cabinet wiring
• Building automation
• Industrial machinery
• Power distribution systems

Key specifications

• Number of Conductors: 4
• Connection Type: Through Terminal Block
• Wiring Technology: Push-in CAGE CLAMP®
• Nominal Voltage (EN): 800 V
• Rated Current (EN): 24 A
• Nominal Cross-Section: 2.5 mm²
• Conductor Size (Solid): 0.25 - 4 mm² (22 - 12 AWG)
• Conductor Size (Fine-Stranded): 0.25 - 4 mm² (22 - 12 AWG)
• Conductor Size (Fine-Stranded with Ferrule): 0.25 - 2.5 mm² (22 - 14 AWG)
• Mounting Type: DIN-rail 35
• Color: Gray
• Insulation Material: Polyamide (PA)
• Pollution Degree: 3
• Rated Surge Voltage: 8 kV
• Stripping Length: 9 - 11 mm (0.35 - 0.43 inch)
• Operating Temperature: -35 … +85 °C

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length for secure connections.
