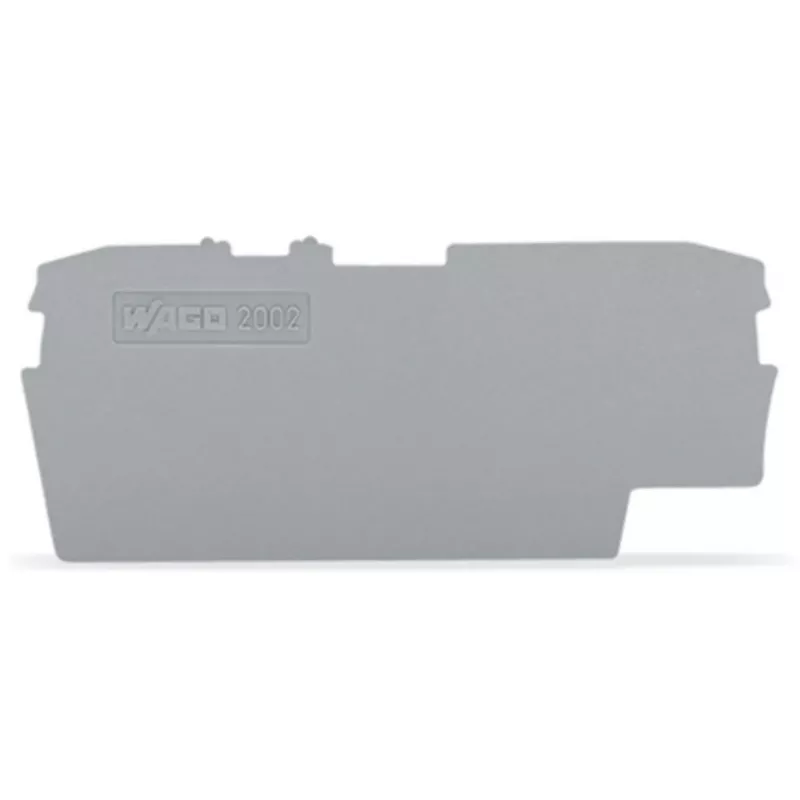

WAGO 2002-1691 Oddeľovacia doska, sivá, hrúbka 1 mm, TOPJOB S

The WAGO 2002-1691 Separator Plate is an essential accessory for creating electrical isolation between adjacent rail-mount terminal blocks in the TOPJOB S series. Designed for snap-on mounting, this grey polyamide 66 plate ensures reliable separation and safety in control cabinets and junction boxes.

Advantages

Provides clear physical and electrical isolation between terminal blocks, preventing accidental contact and short circuits. The 1 mm thickness offers robust insulation while maintaining a compact footprint. Made from self-extinguishing polyamide 66 with UL94 V-0 flammability rating, it meets high safety standards. RoHS and REACH compliant, it supports environmentally friendly installations.

Suitable for

• Industrial control panels
• Building automation systems
• Electrical distribution boards
• Any application requiring separation of WAGO TOPJOB S terminal blocks

Key specifications

• Product Type: Separator Plate
• Series: TOPJOB S
• Colour: Grey
• Material: Polyamide 66 (PA 66)
• Flammability Rating: UL94 V-0
• Mounting Type: Snap-on
• Compatibility: WAGO TOPJOB S Rail-Mount Terminal Blocks
• Operating Temperature: -35 °C to +105 °C
• Storage Temperature: -35 °C to +105 °C
• Thickness: 1 mm
• Length: 66.1 mm
• Width: 30.4 mm
• Weight: 1.84 g

Recommendations

For optimal performance, use this separator plate with WAGO TOPJOB S terminal blocks. Ensure proper snap-on installation to maintain electrical isolation. Always follow local electrical codes and manufacturer guidelines.
