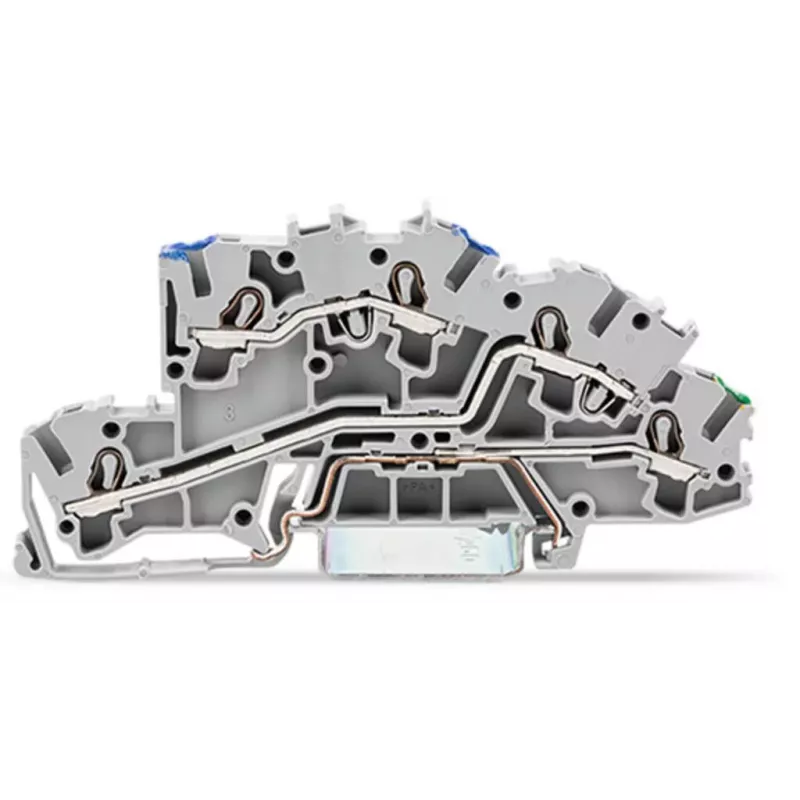

WAGO 2003-7646 3-vodičová priechodná svorka, 2,5 mm², 800 V, sivá, montáž na DIN lištu

The WAGO 2003-7646 is a high-quality 3-conductor through terminal block from the renowned 2003 series, designed for reliable and maintenance-free connections in industrial and building installations. With Push-in CAGE CLAMP® technology, it enables fast and tool-free wiring of solid and stranded conductors up to 4 mm². The compact design saves space on the DIN-rail, while the gray polyamide housing ensures durability and safety.

Advantages

Push-in CAGE CLAMP® connection for quick and secure wiring without tools. Rated voltage up to 800 V and rated current of 24 A make it suitable for a wide range of applications. The V0 flammability rating according to UL94 ensures high fire safety. Compact dimensions (width 5.2 mm) allow dense installation on the DIN-rail.

Suitable for

• Control cabinets and switchgear
• Building automation and lighting systems
• Industrial machinery and equipment
• Power distribution and signal wiring

Key specifications

• Connection technology: Push-in CAGE CLAMP®
• Number of conductors: 3
• Nominal cross section: 2.5 mm²
• Rated voltage (EN): 800 V
• Rated current (EN): 24 A
• Solid conductor range: 0.25 - 4 mm² (24 - 12 AWG)
• Stranded conductor range: 0.25 - 4 mm² (24 - 12 AWG)
• Fine-stranded conductor range: 0.25 - 2.5 mm² (24 - 14 AWG)
• Stripping length: 9 - 11 mm
• Insulation material: Polyamide (PA)
• Flammability rating: UL94 V-0
• Pollution degree: 3
• Mounting type: DIN-rail 35 mm
• Color: Gray

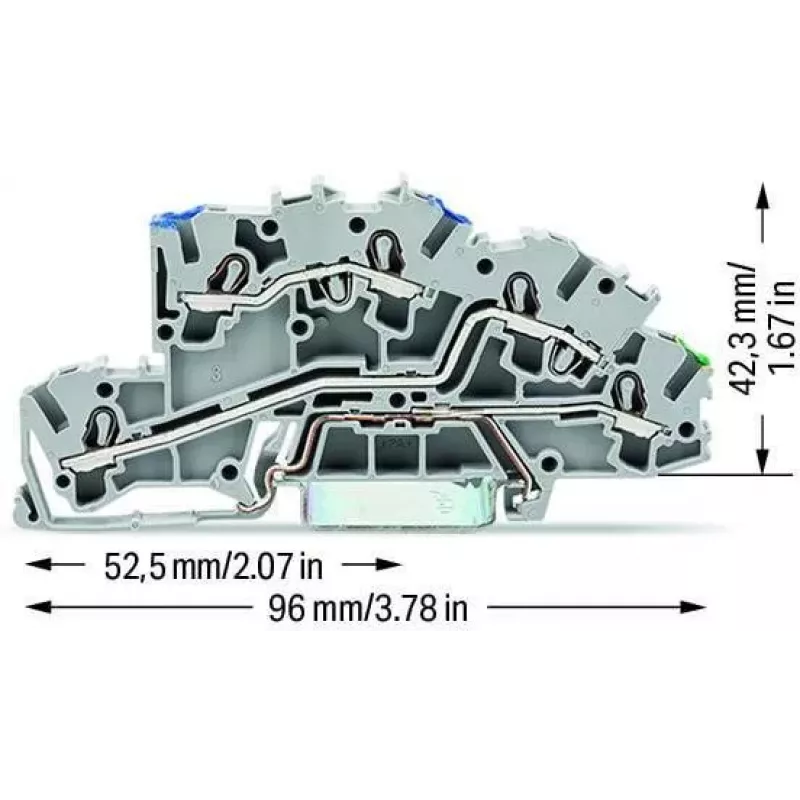

• Dimensions (WxHxD): 5.2 x 96 x 42.3 mm

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper stripping length and conductor preparation for reliable connections.
