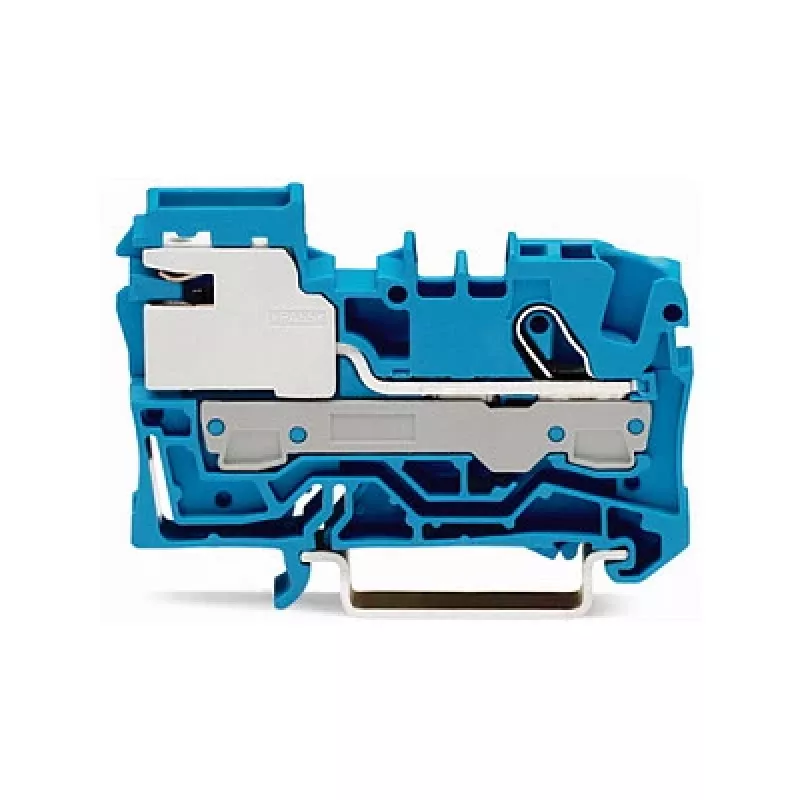

WAGO 2006-7114 1-vodičová N-rozpájacia svorka, 6 mm², Push-in CAGE CLAMP, modrá

The WAGO 2006-7114 is a 1-conductor N-disconnect terminal block in blue, featuring Push-in CAGE CLAMP technology. It is rated for a nominal voltage of 250 V and a current of 51 A, and accommodates conductors from 0.5 mm² to 10 mm² (AWG 20–8).

Key features

• 1-conductor N-disconnect terminal block
• Push-in CAGE CLAMP connection
• Blue colour

Specifications

• Brand: WAGO
• MPN: 2006-7114
• Product colour: Blue
• Nominal voltage: 250 V
• Current: 51 A
• Minimum cable cross-section: 0.5 mm²
• Maximum cable cross-section: 10 mm²
• Wire gauge (AWG): 20–8

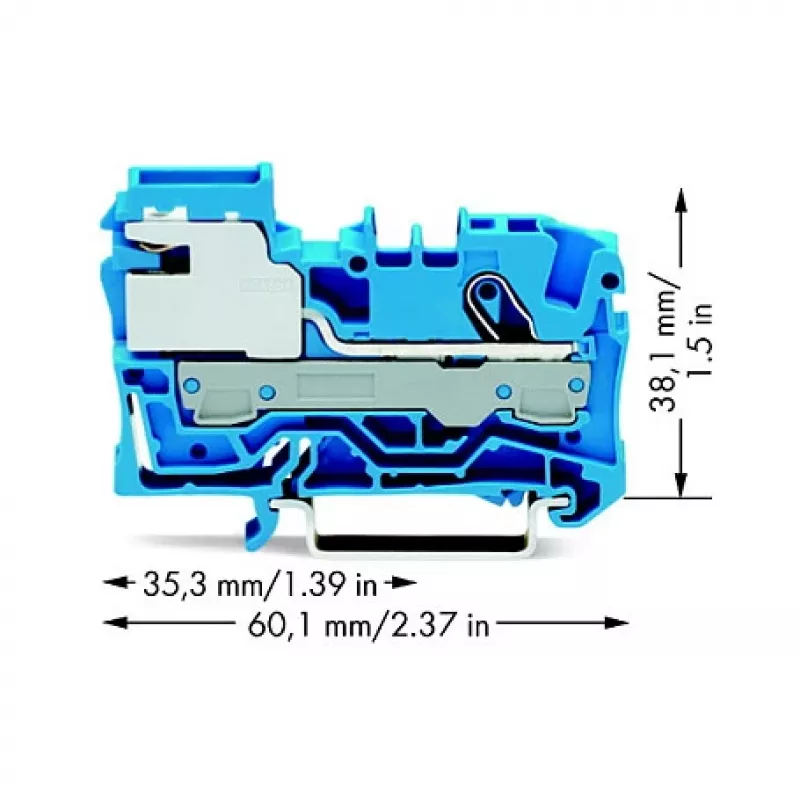

• Width: 7.5 mm
• Depth: 60 mm
• Height: 38.1 mm
