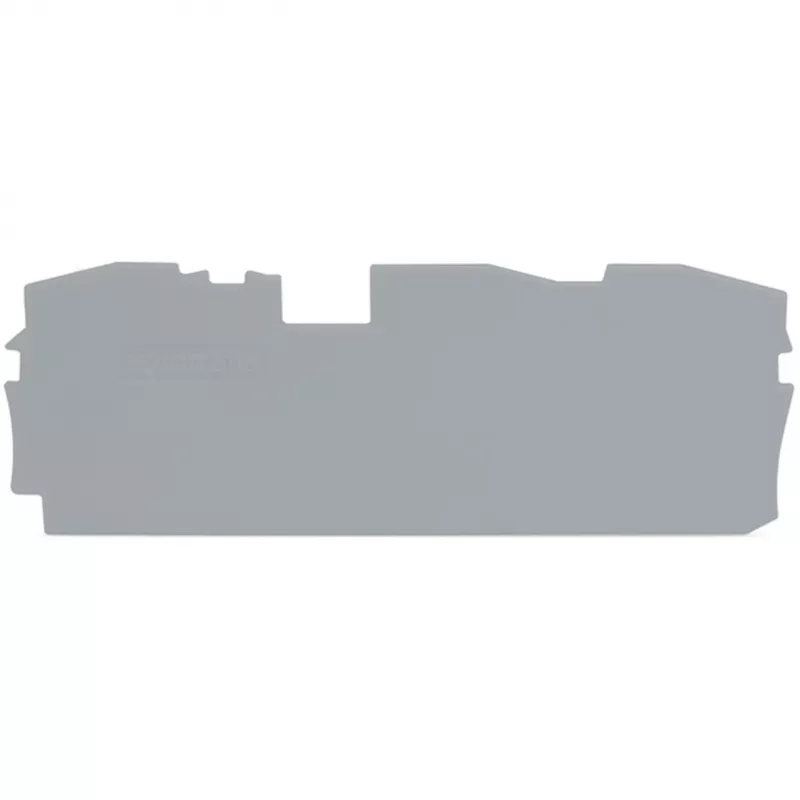

WAGO 2016-1391 koncová a medzidoska, sivá, hrúbka 1 mm

The WAGO 2016-1391 is a high-quality feed-through terminal block from the TOPJOB S series, designed for reliable and maintenance-free electrical connections. With CAGE CLAMP® connection technology, it ensures secure, vibration-proof, and gas-tight connections for solid and fine-stranded conductors. This gray terminal block is ideal for industrial control cabinets, building automation, and general wiring applications.

Advantages

• CAGE CLAMP® spring connection for fast, tool-free wiring
• Compact design saves space on DIN-rail 35
• Rated voltage up to 800 V and rated current 17.5 A for demanding applications
• Wide operating temperature range from -35 to +105 °C
• Pollution degree 3 for harsh environments

Suitable for

• Industrial control panels
• Building automation systems
• Power distribution
• General electrical installations

Key specifications

• Connection Technology: CAGE CLAMP®
• Number of Conductors: 1
• Nominal Cross Section: 1.5 mm² (14 AWG)
• Rated Voltage (III/3): 800 V
• Rated Current: 17.5 A
• Rated Impulse Voltage: 8 kV
• Pollution Degree: 3
• Mounting Type: DIN-rail 35
• Color: Gray
• Strip Length: 9 - 11 mm (0.35 - 0.43 inch)
• Series: TOPJOB S (2016 Series)
• Number of Connection Points: 2
• Number of Levels: 1
• Operating Temperature Range: -35 to +105 °C

Recommendations

For optimal performance, use with WAGO marking strips and accessories. Ensure proper strip length for secure connections.
