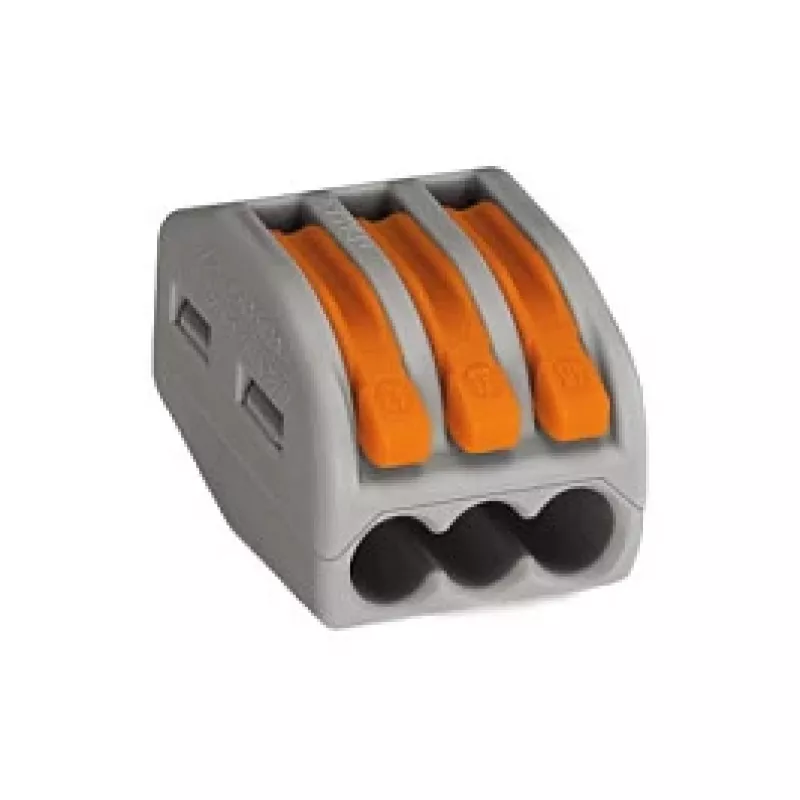

WAGO 222-413 3-vodičová páčková spojka, 32 A, 400 V, sivá/oranžová

The WAGO 222-413 is a compact, lever-operated splicing connector designed for fast and tool-free wiring of solid, stranded, and fine-stranded conductors. With 3 conductors and a rated current of 32 A at 400 V, it is ideal for junction boxes, lighting installations, and industrial control cabinets. The transparent housing allows visual inspection of the connection, while the orange lever provides clear indication of the open/closed state.

Advantages

Lever operation eliminates the need for tools, reducing installation time. The CAGE CLAMP® connection technology ensures a gas-tight, vibration-proof connection. Side-entry wiring simplifies conductor insertion. The compact design saves space in junction boxes.

Suitable for

• Junction boxes and distribution boxes
• Lighting and luminaire connections
• Industrial control and automation systems
• Residential and commercial electrical installations

Key specifications

• Number of conductors: 3
• Rated voltage: 400 V
• Rated current: 32 A
• Solid conductor cross-section: 0.08 - 2.5 mm² (28 - 12 AWG)
• Stranded conductor cross-section: 0.08 - 2.5 mm² (28 - 12 AWG)
• Fine-stranded conductor cross-section: 0.08 - 4 mm² (28 - 12 AWG)
• Strip length: 9 - 10 mm
• Color: Gray / Orange
• Insulation material: Polycarbonate (PC)
• Contact material: Copper
• Operating temperature: -20 to +85 °C
• Flammability rating: UL 94 V-2
• Approvals: ENEC, UL, CSA, KEMA-KEUR

Recommendations

For best results, use with WAGO pre-stripped conductors or strip to 9-10 mm. Ensure lever is fully closed after insertion. Suitable for solid and stranded wires up to 2.5 mm² and fine-stranded up to 4 mm².
