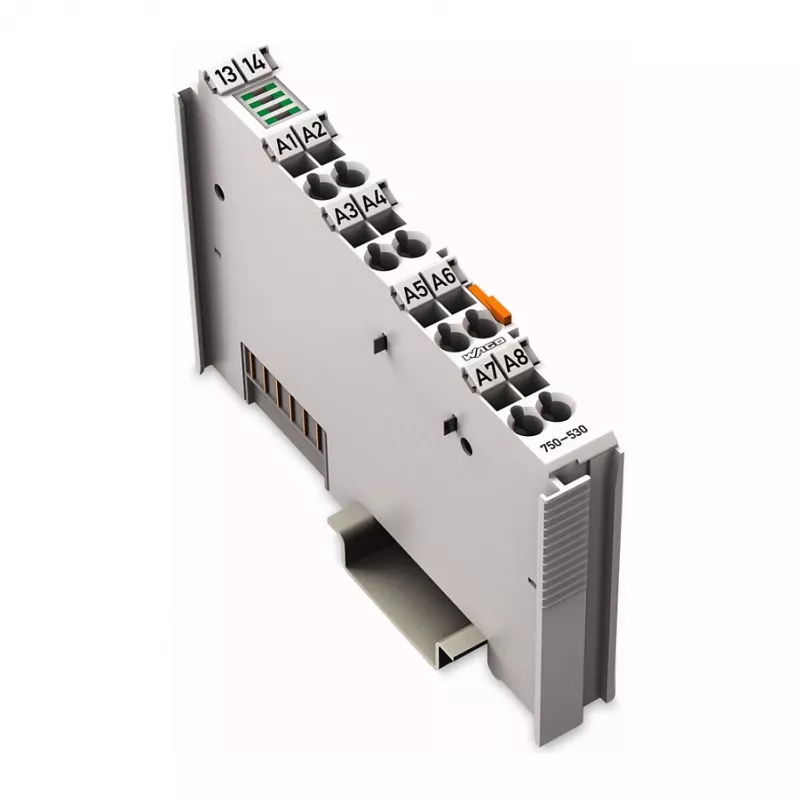

WAGO 750-530 Modul digitálnych výstupov, 8-kanálový, 24 VDC, 0,5 A, CAGE CLAMP, DIN lišta

The WAGO 750-530 is a high-performance digital output module designed for the WAGO I/O System 750. With 8 sourcing (PNP) channels, it provides reliable switching of 24 VDC loads up to 0.5 A per channel. The module features CAGE CLAMP® connection technology for fast, vibration-proof wiring and offers comprehensive protection against short circuits and overloads. Its compact 12 mm width saves valuable DIN-rail space, making it ideal for distributed automation systems.

Advantages

• 8 digital outputs with 0.5 A per channel for flexible load control
• CAGE CLAMP® terminals for tool-free, secure connections
• Short-circuit and overload protection enhance system reliability
• Compact 12 mm width reduces cabinet space requirements
• Wide operating temperature range (-25 to +55 °C) for harsh environments
• Galvanic isolation of 500 V between system and field

Suitable for

• Industrial automation and control systems
• Building automation (HVAC, lighting, shading)
• Process control and manufacturing lines
• Machine building and robotics
• Distributed I/O applications

Key specifications

• Module Type: Digital Output Module
• Number of Channels: 8
• Output Type: Digital, Sourcing (PNP)
• Nominal Output Voltage: 24 VDC
• Max. Output Current per Channel: 0.5 A
• Total Output Current: 4 A
• Short-Circuit Protection: Yes
• Overload Protection: Yes
• Isolation Voltage: 500 V (System/Field)
• Connection Technology: CAGE CLAMP®
• Wiring Type: 2-conductor
• Operating Temperature: 0 ... +55 °C
• Storage Temperature: -25 ... +85 °C
• Relative Humidity: 0 ... 95 % (non-condensing)
• Mounting Type: DIN-rail 35
• Internal Current Consumption: 20 mA
• Output Delay: 0.5 ms (typ.)
• Dimensions (WxHxD): 12 x 100 x 67.8 mm

Recommendations

For optimal performance, pair the 750-530 with a suitable WAGO bus coupler or controller. Use WAGO's pre-assembled cables and accessories to ensure reliable connections. Always observe the maximum total current of 4 A and provide adequate ventilation.
