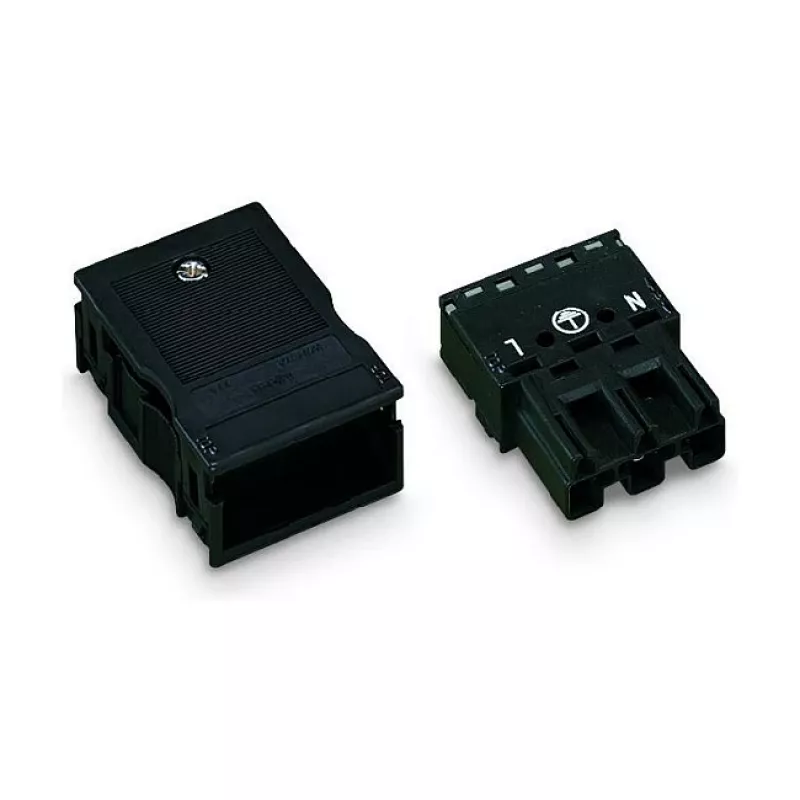

WAGO 770-113 konektor, samec, rovný, 2-pólový, 250 V, čierny, WINSTA MINI

The WAGO 770-113 is a high-quality male plug connector from the WINSTA MINI series, designed for reliable and space-saving electrical connections. With its straight design and push-in CAGE CLAMP® technology, it ensures fast, tool-free wiring for solid and stranded conductors up to 2.5 mm². Rated for 250 V and 16 A, this black connector is ideal for industrial and building automation applications.

Advantages

Push-in CAGE CLAMP® connection saves installation time and ensures vibration-proof, maintenance-free contacts. Compact 2-pole design with 4.4 mm pin spacing optimizes space on PCBs and in junction boxes. Rated for pollution degree 3 and overvoltage category III, it delivers robust performance in demanding environments.

Suitable for

• Industrial control cabinets
• Building automation systems
• Lighting and signal distribution
• Sensor and actuator connections

Key specifications

• Connector type: Male plug
• Series: WINSTA MINI
• Number of poles: 2
• Connection direction: Straight
• Rated voltage: 250 V
• Rated current: 16 A
• Wire cross-section (solid/stranded): 0.5 - 2.5 mm² (AWG 20 - 14)
• Connection technology: Push-in CAGE CLAMP®
• Color: Black
• Pin spacing: 4.4 mm
• Pollution degree: 3
• Overvoltage category: III
• Insulation material: Polyamide (PA 66)
• Contact material: Electrolytic copper, tin-plated
• Operating temperature: -35 °C to +85 °C
• Flammability rating: UL94 V-0
• Approvals: VDE, UL, CSA

Recommendations

For optimal performance, pair with WAGO WINSTA MINI female connectors and accessories. Ensure proper conductor stripping and insertion per manufacturer guidelines.
