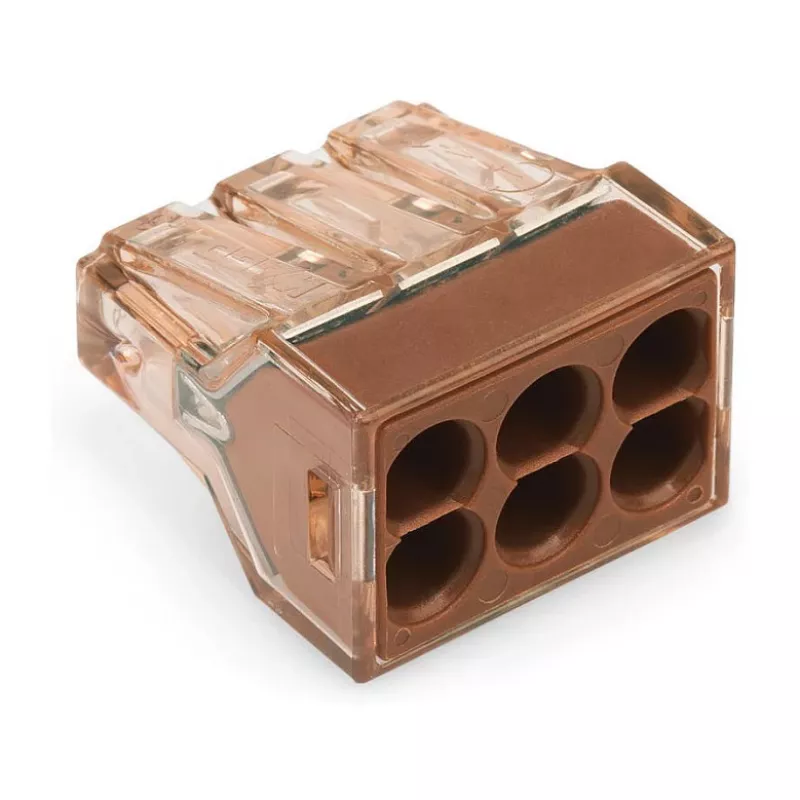

WAGO 773-606 6-násobná spojovacia svorka, Push-wire, 50 kusov, hnedá/transparentná

The WAGO 773-606 is a high-quality 6-conductor junction box connector from the WAGO 773 series, designed for reliable and maintenance-free electrical connections. With push-wire technology, it enables fast and tool-free installation of solid conductors. This pack contains 50 pieces in brown/transparent color, ideal for junction boxes and distribution boxes.

Advantages

Tool-free push-wire connection saves time and effort. Compact design fits easily into junction boxes. VDE, UL, and CSA approvals ensure safety and compliance. Transparent cover allows visual inspection of connections.

Suitable for

• Junction boxes and distribution boxes
• Lighting and switchgear installations
• Industrial and residential wiring

Key specifications

• Number of Clamping Points: 6
• Conductor Type: Solid (e)
• Min. Conductor Cross-Section: 1.5 mm²
• Max. Conductor Cross-Section: 2.5 mm²
• Rated Voltage (EN): 400 V
• Rated Current (EN): 24 A
• Rated Impulse Voltage: 4 kV
• Pollution Degree: 2
• Connection Technology: Push-wire
• Housing Material: Polycarbonate (PC)
• Flammability Rating: UL94 V-2
• Max. Operating Temperature: 105 °C
• Color: Brown/Transparent
• Stripping Length: 12 mm
• Pack Quantity: 50 pieces

Recommendations

For optimal performance, use with solid copper conductors and ensure proper stripping length. Suitable for indoor use only.
