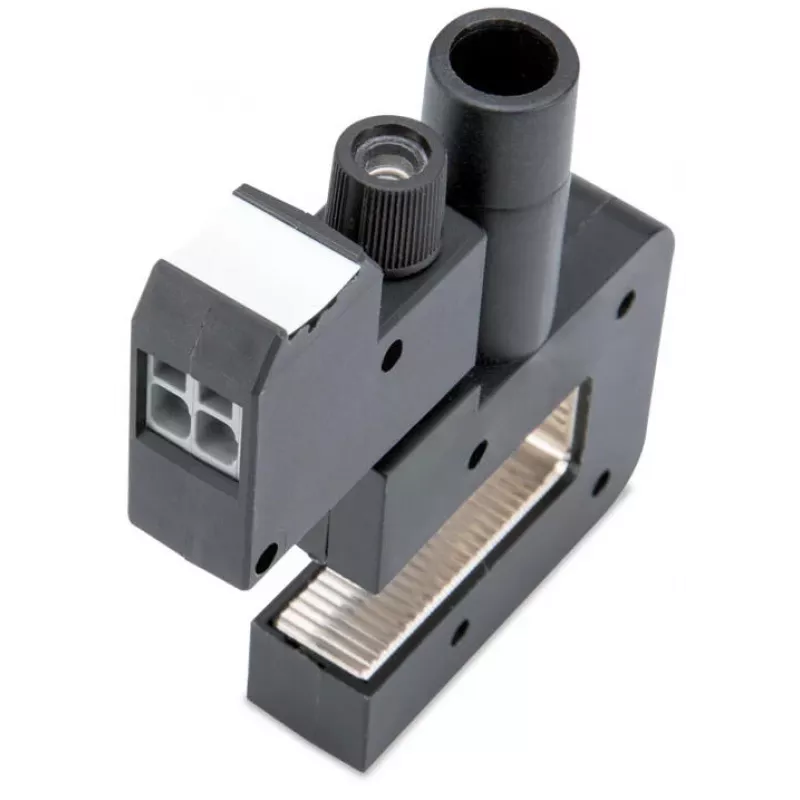

WAGO 855-8015 odbočka potenciálu s držiakom poistky, sivá, 6,3 A, 250 V, TOPJOB® S Mini

The WAGO 855-8015 Potential Tap with Fuse Holder is a compact and reliable component from the TOPJOB® S Mini series, designed for DIN rail mounting (TS 35). It features push-in CAGE CLAMP® connection technology for fast and tool-free wiring of solid and stranded conductors from 0.25 to 1.5 mm². This potential tap integrates a G-fuse 5 x 20 mm holder, providing overcurrent protection for your control circuits. Rated at 250 V and 6.3 A, it is ideal for industrial and building automation applications where space is limited.

Advantages

• Tool-free push-in connection saves installation time
• Compact design fits on TS 35 DIN rail
• Integrated fuse holder for circuit protection
• Reliable CAGE CLAMP® spring connection
• High-quality polyamide housing with UL94 V-0 flammability rating

Suitable for

• Control cabinet wiring
• Building automation systems
• Industrial control panels
• Fuse protection for sensors and actuators

Key specifications

• Product Type: Potential Tap with Fuse Holder
• Series: TOPJOB® S Mini
• Mounting Type: DIN Rail TS 35
• Connection Technology: Push-in CAGE CLAMP®
• Number of Connection Points: 2
• Number of Potentials: 1
• Nominal Voltage: 250 V
• Rated Impulse Voltage: 4 kV
• Rated Current: 6.3 A
• Fuse Type: G-fuse 5 x 20 mm
• Conductor Size (Solid/Stranded): 0.25 - 1.5 mm²
• Conductor Size (Fine-Stranded): 0.25 - 1.5 mm²
• Stripped Length: 9 - 11 mm
• Insulating Material: Polyamide (PA 66)
• Color: Gray
• Operating Temperature: -35 ... +85 °C
• Flammability Rating: UL94 V-0

Recommendations

For optimal performance, use with WAGO pre-stripped conductors and appropriate marking tags. Ensure the fuse rating matches your application requirements.
