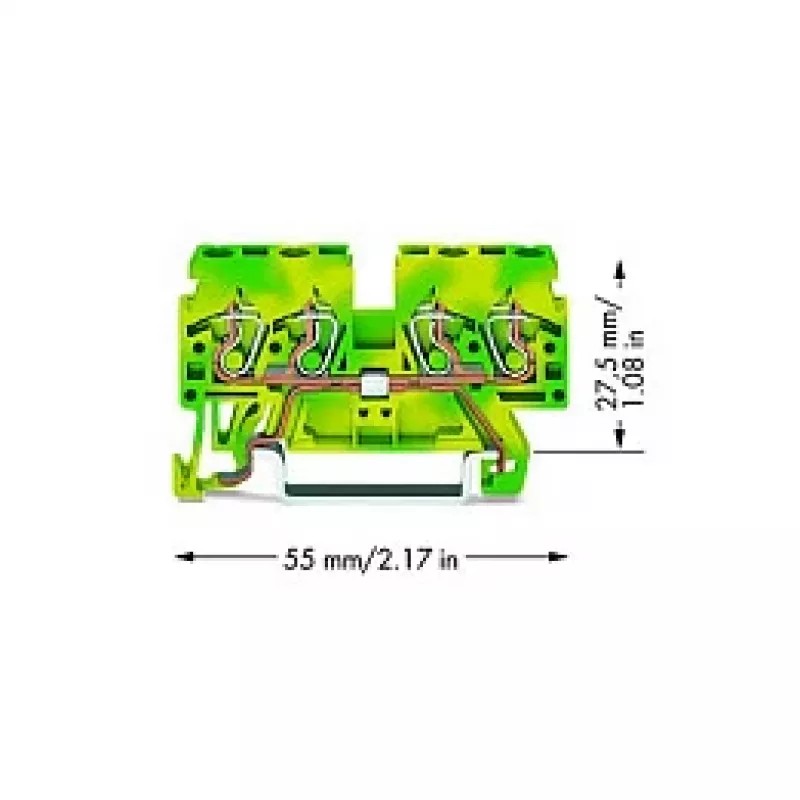

WAGO 870-837 4-vodičová ochranná svorka, zeleno-žltá, nepremostiteľná

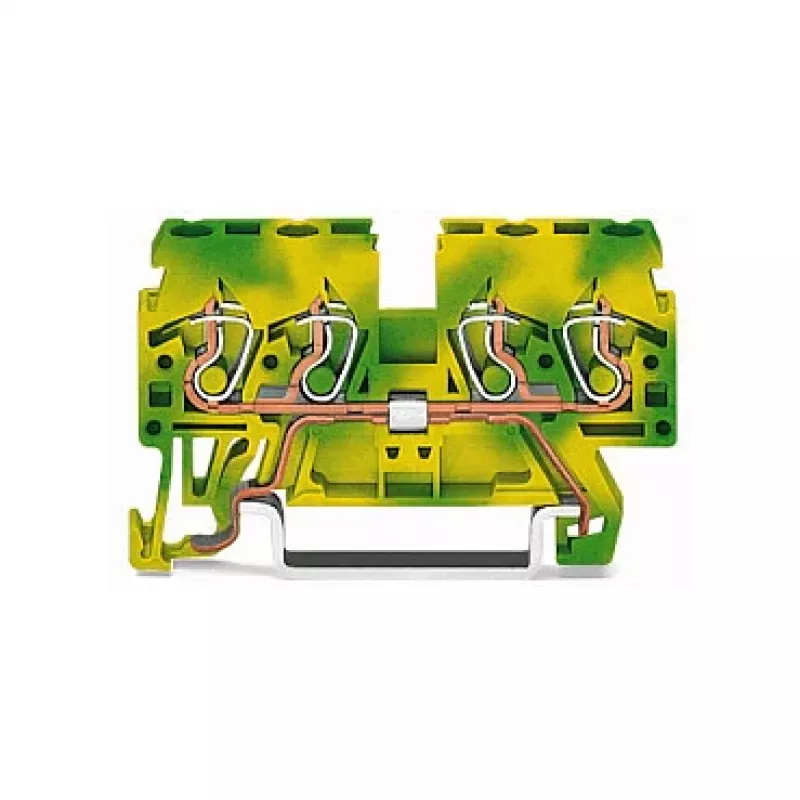

This WAGO 870-837 is a 4-conductor protective earth terminal block with CAGE CLAMP® connection technology, providing a reliable and maintenance-free connection for solid and fine-stranded conductors up to 4 mm². Its green-yellow housing clearly identifies it as a PE terminal according to standard color coding.

Advantages

The CAGE CLAMP® system ensures vibration-proof, gas-tight connections without the need for special tools or re-tightening. The terminal block is non-bridgeable, simplifying installation in applications where individual grounding points are required. It mounts on standard 35 mm DIN rails and supports a wide operating temperature range from -35 to +105 °C.

Suitable for

• Protective earth connections in industrial control panels
• Building automation and electrical distribution systems
• Applications requiring a fixed, non-bridgeable PE terminal

Key specifications

• Number of conductors: 4
• Connection technology: CAGE CLAMP®
• Nominal cross-section: 2.5 mm²
• Solid conductor size: 0.08 – 4 mm² (28 – 12 AWG)
• Fine-stranded conductor size: 0.08 – 2.5 mm² (28 – 14 AWG)
• Fine-stranded with ferrule: 0.08 – 2.5 mm² (28 – 14 AWG)
• Rated current: 24 A
• Rated voltage (III/3): 800 V
• Rated impulse voltage: 6 kV
• Stripping length: 8 – 9 mm
• Insulation material: Polyamide (PA 66)
• Mounting type: DIN-rail 35 x 15 / 35 x 7.5
• Operating temperature: -35 to +105 °C
• Pollution degree: 3
• Overvoltage category: III
• Bridgeable: No

Recommendations

For reliable protective earth connections in DIN-rail installations, the WAGO 870-837 offers a compact, maintenance-free solution with proven CAGE CLAMP® technology.
